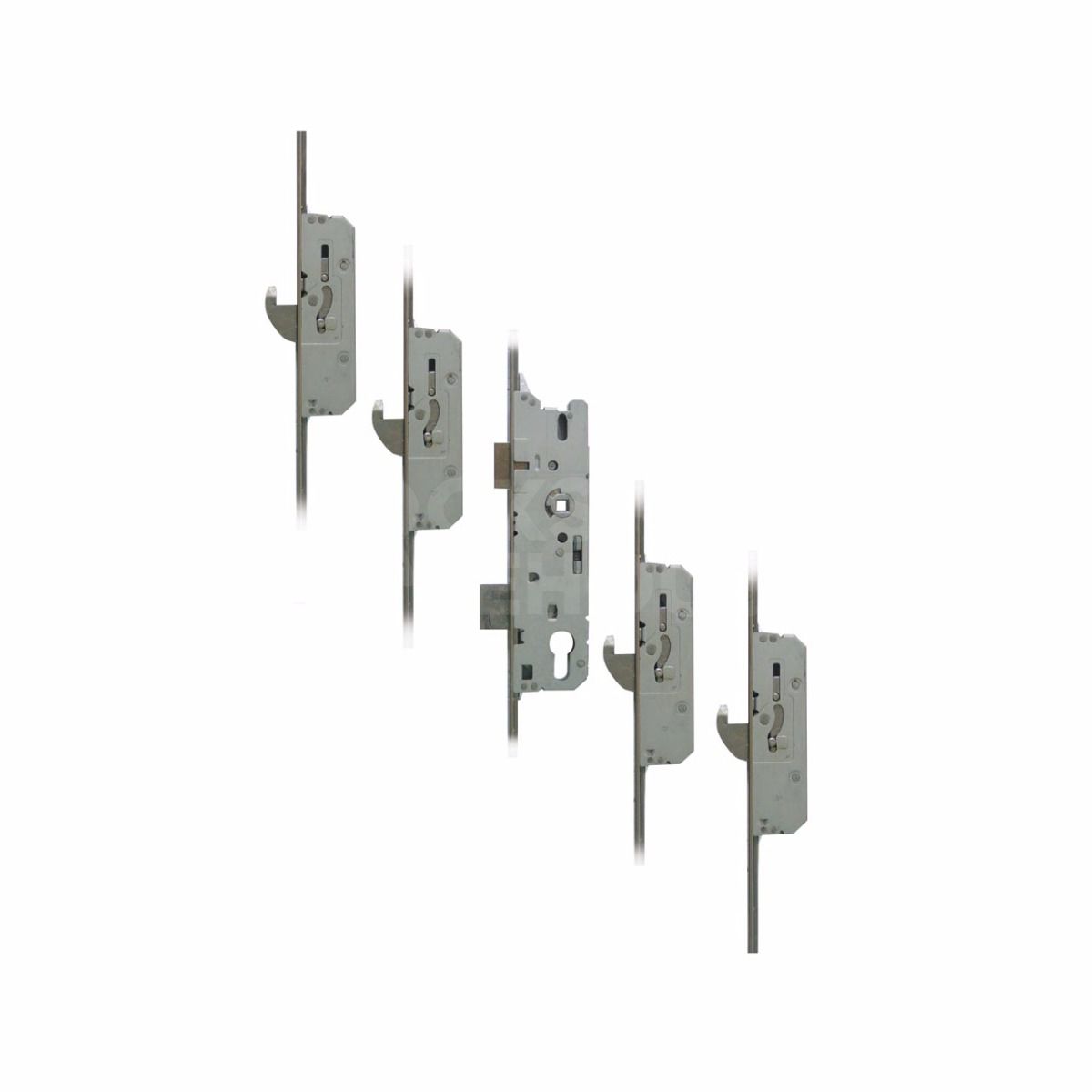

The Fuhr 856 type 4 is a latch and deadbolt single spindle multipoint, with 4 hooks.
It is operated with a lever/lever action so when the door is unlocked by the cylinder, depress the lever to release all locking points. On closing, lift the lever to engage the main locking points then turn the key in the profile cylinder to throw the central deadbolt and to deadlock all other locking points. The latch and deadbolt are reversible.
Also the unit is Secured by Design (Police approved specification) and PAS24 accredited.
- 16mm Faceplate
- Single Spindle
- Latch & deadbolt
- Euro profile lock case
| Operation | A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock. |
| Brand | Fuhr |
| Backset | 35mm |
| Case Height | 200mm |
| Centres | 92mm |
| Centre Case | Latch & Deadbolt |
| Case Width | 50mm |
| Weight | 1.25Kg |

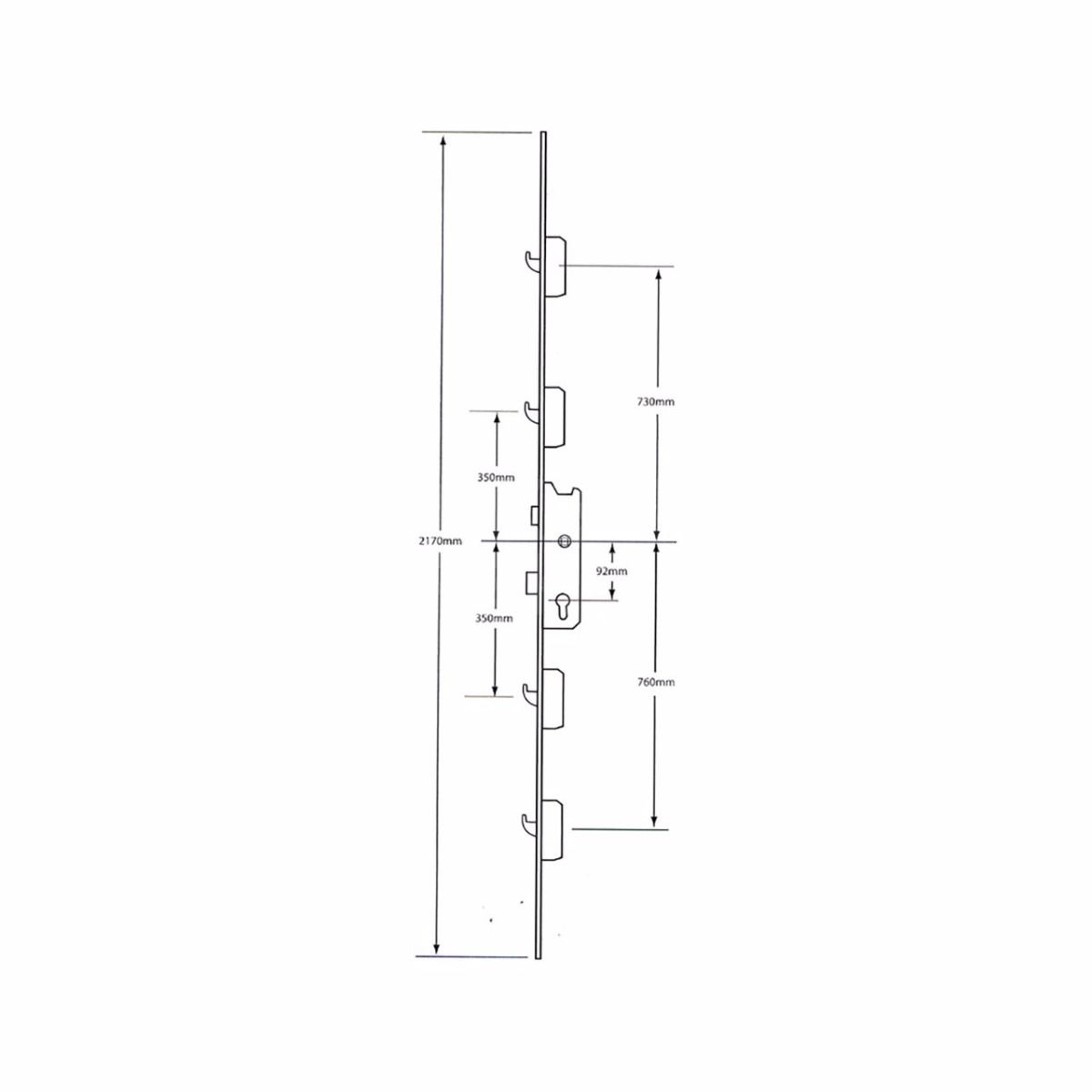

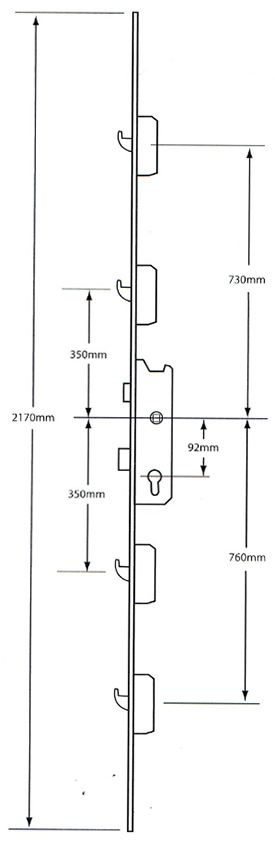

| Locking Point Distance D | 760mm |
| Locking Point Distance C | 730mm |
| Locking Point Distance B | 350mm |
| Locking Point Distance A | 350mm |
| Locking Point Hooks | 4 |
| Faceplate Width | 16mm |
