skip to Fuhr 856 Type 4 Lever Operated 4 Hook Multipoint Lock

Fuhr 856 Type 4 Lever Operated 4 Hook Multipoint Lock

£154.30

(£128.58 ex VAT)

sku: M6352DF4S0
  • FUHR multisafe 856 with four hooks, latch and central deadbolt
  • Handle lift engages secondary points; the key extends the central deadbolt
  • 35mm backset version
  • Match the correct Euro cylinder, handle and spindle arrangement
  • Compare exact lock, faceplate, routing and frame-keep positions before replacement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Fuhr 856 Type 4 Lever Operated 4 Hook Multipoint Lock is a lever-operated multisafe 856 lock with four hooks, a central latch and a separately secured deadbolt. Available with a 35mm backset.

Locking: lift the handle to engage the secondary locking points, then turn the cylinder key to extend the central deadbolt. To open, retract the deadbolt with the key before lowering the handle to release the secondary points. This is manual lever operation, not automatic locking when the door closes.

The normal 856 lever arrangement operates the latch from either side while the central deadbolt is unlocked. It is not the key-only outside latch function of the 859 split-spindle lock.

Replacement fit: compare the exact supplied reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps. A shared brand or PZ measurement is not a direct-replacement guarantee. The stored manual explains operation and installation precautions; it is not an exact-part dimensioned drawing.

Any security or fire performance must be verified for the appropriate complete doorset and specified components; an unrelated replacement assembly does not inherit approval from a range name.

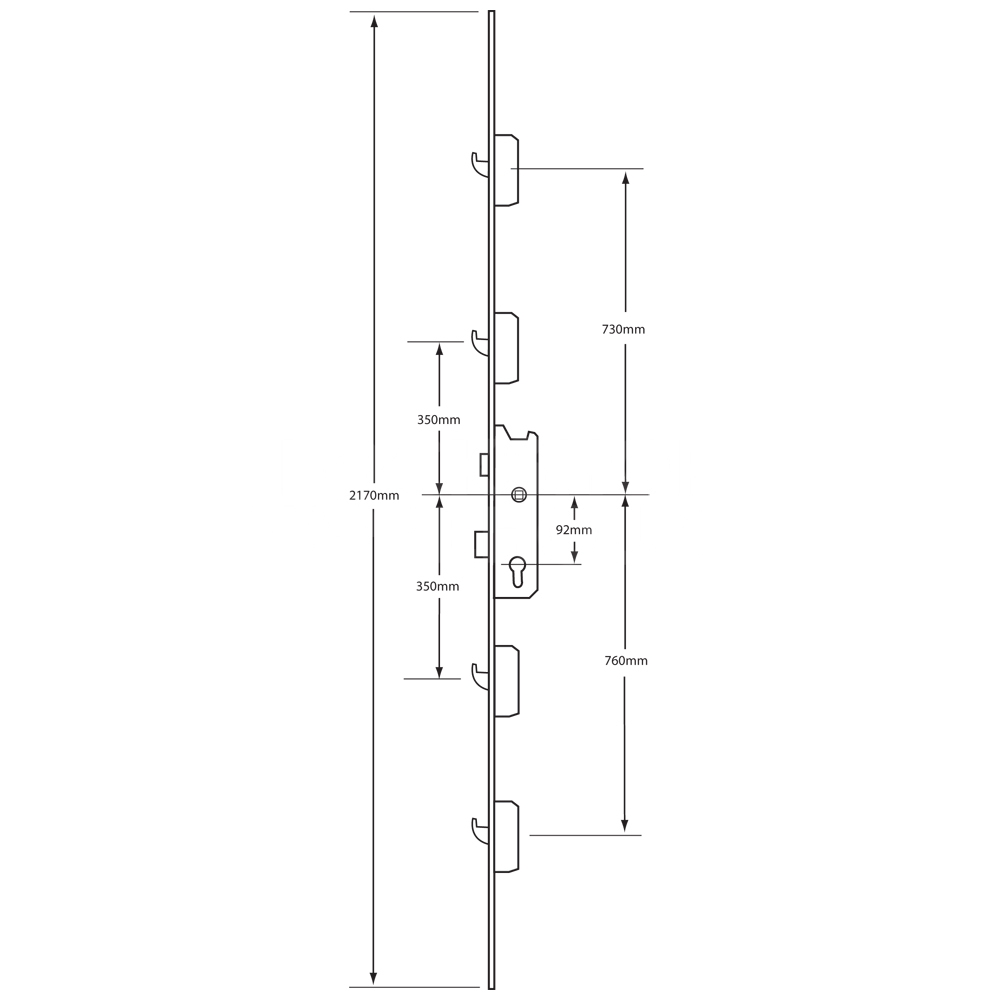

Dimensions Image: Fuhr 856 Type 4 Lever Operated 4 Hook Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 200
Locking Point Hooks 4
Faceplate Width 16

FAQs

Yes, the Fuhr 856 Type 4 features a reversible latch and deadbolt. This allows it to be easily adjusted on-site to suit the handing of your door, whether it opens to the left or the right.

Security and any PAS 24 or fire performance depend on the tested complete doorset and its specified lock, keeps, cylinder, furniture and installation. A loose replacement lock does not independently give an unrelated door those approvals. Verify the exact approved assembly and certificate scope.

Fit depends on the exact lock reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps, not the door material or FUHR brand alone. Compare the existing lock and the correct dimensioned drawing before replacement.

Lift the handle to engage the secondary locking points, then turn the key to extend the central deadbolt. To open, retract the deadbolt with the key before lowering the handle to release the secondary points and latch. The handle lift does not throw the central deadbolt.
