skip to Fuhr Lever Operated 2 Round Bolt & 2 Roller Multipoint Lock

Fuhr Lever Operated 2 Round Bolt & 2 Roller Multipoint Lock

£93.91

(£78.26 ex VAT)

sku: FUHR-0014
  • FUHR multisafe 856 with two round bolts and two rollers, latch and central deadbolt
  • Handle lift engages secondary points; the key extends the central deadbolt
  • 30/35mm backset versions
  • Match the correct Euro cylinder, handle and spindle arrangement
  • Compare exact lock, faceplate, routing and frame-keep positions before replacement
Document Icon FUHR multisafe 856: manufacturer operation, spindle and installation guide

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Fuhr Lever Operated 2 Round Bolt & 2 Roller Multipoint Lock is a lever-operated multisafe 856 lock with two round bolts and two rollers, a central latch and a separately secured deadbolt. Available in 30/35mm backsets.

Locking: lift the handle to engage the secondary locking points, then turn the cylinder key to extend the central deadbolt. To open, retract the deadbolt with the key before lowering the handle to release the secondary points. This is manual lever operation, not automatic locking when the door closes.

The normal 856 lever arrangement operates the latch from either side while the central deadbolt is unlocked. It is not the key-only outside latch function of the 859 split-spindle lock.

Replacement fit: compare the exact supplied reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps. A shared brand or PZ measurement is not a direct-replacement guarantee. The stored manual explains operation and installation precautions; it is not an exact-part dimensioned drawing.

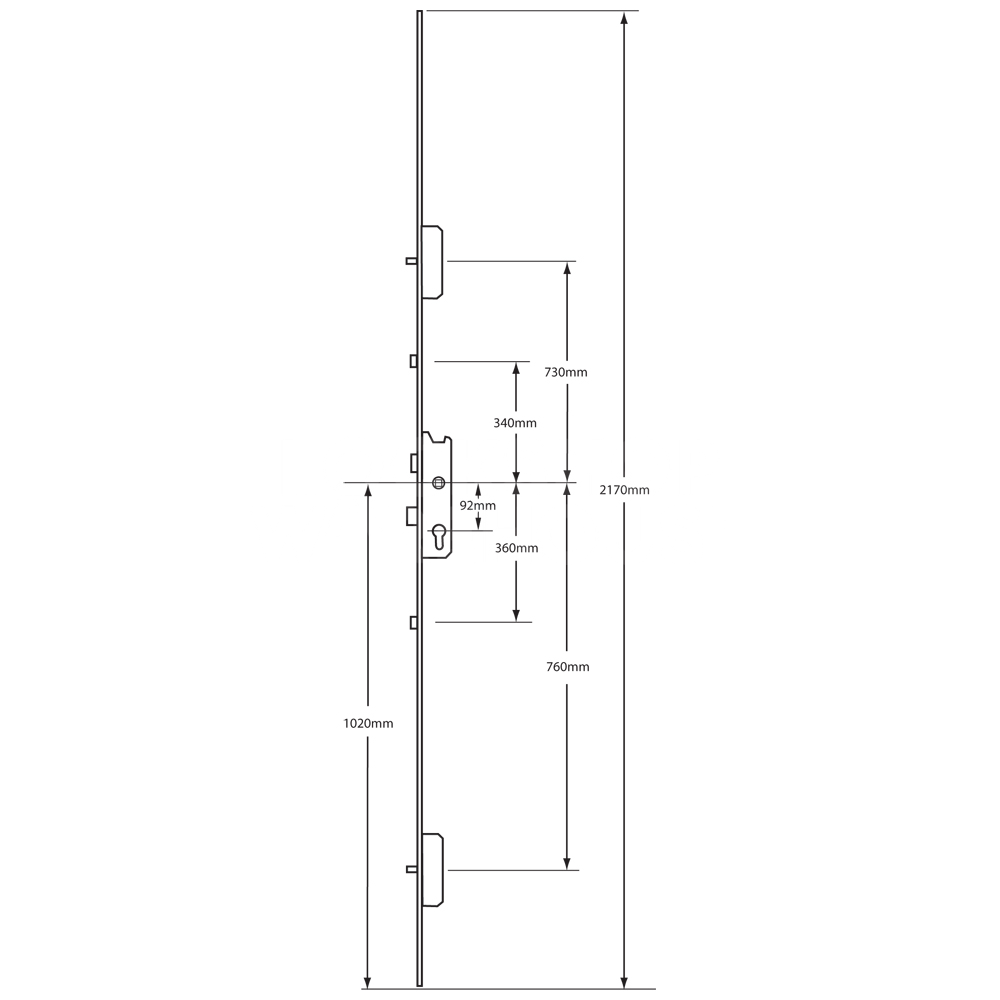

Dimensions Image: Fuhr Lever Operated 2 Round Bolt & 2 Roller Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 30 35
Case Width 45 50
Case Height 200 -
Locking Point Pin 2 -
Locking Point Roller 2 -
Faceplate Width 16 -

FAQs

Lift the handle to engage the secondary locking points, then turn the key to extend the central deadbolt. To open, retract the deadbolt with the key before lowering the handle to release the secondary points and latch. The handle lift does not throw the central deadbolt.

Fit depends on the exact lock reference, backset, PZ centres, faceplate, case routing, locking-point positions and matching frame keeps, not the door material or FUHR brand alone. Compare the existing lock and the correct dimensioned drawing before replacement.

The gearbox is designed with a single spindle follower, making it compatible with standard lever-lever handles. Ensure your handle set matches the spindle size and PZ distance of your existing door gear for a proper fit.

This system provides a balance of security and weatherproofing. The two round bolts offer enhanced physical resistance against forced entry, while the two rollers pull the door tightly into the frame to ensure a compressed, weather-tight seal.
