FUHR Lever Operated Latch & Deadbolt - 2 Round Bolt 2 Roller

£107.99

(£89.99 ex VAT)

sku: L15600

The FUHR Lever Operated Latch & Deadbolt is a full multipoint lock unit with 2 round bolts and 2 hooks. It features a Euro profile centre case with a 16mm faceplate and single spindle. The unit can be locked by using the lift lever to engage the locking mechanisms, after which a turn of the full cylinder locks it up. One full turn of the key followed by a push down on the lever unlocks the unit.

  • Single Spindle
  • Latch & deadbolt
  • Euro profile lock case
  • 16mm Faceplate
Spindle Single
Operation A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Brand Fuhr
Backset 30mm
Case Height 200mm
Centres 92mm
Centre Case Latch & Deadbolt
Case Width 45mm
Weight 2.4Kg

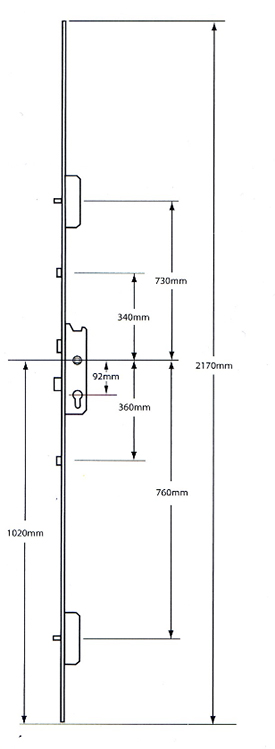

Locking Point Distance D 760mm
Locking Point Distance C 730mm
Locking Point Distance B 360mm
Locking Point Distance A 340mm
Locking Point Roller 2
Locking Point Pin 2
Faceplate Width 16mm

Backset

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

8/10 Security Rating

Brand

SKU

L15600

Box Contents

2 x Rollers

Latch & Deadbolt

spindle

Faceplate

Euro Profile Lock Case

2 x Round Bolt
