skip to Fuhr 856 Type 3 Lever Operated Multipoint Lock

Fuhr 856 Type 3 Lever Operated Multipoint Lock

£96.07

(£80.06 ex VAT)

sku: M6352D64S0
  • Multipoint locking system with 2 hooks and 2 rollers
  • Lever-operated mechanism with lift-to-lock functionality
  • Reversible latch to suit left or right-handed door configurations
  • Compatible with standard Euro profile cylinders
  • Tested to 200,000 cycles for proven mechanical durability
  • Secured by Design approved for enhanced security standards
  • 16mm faceplate with a corrosion-resistant finish
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The FUHR 856 Type 3 is a high-security lever-operated multipoint lock designed for residential and commercial door applications. This comprehensive system incorporates a central latch and deadbolt supplemented by two hooks and two rollers. The hooks provide essential pull-in and anti-separation security, while the rollers ensure a smooth closing action and consistent weather-tight seal.

Functionally, the lock utilises a lift-lever operation; lifting the handle engages the auxiliary locking points, allowing the Euro profile cylinder to be deadlocked with a key turn. It features a 16mm faceplate and an 8mm single spindle. The reversible latch allows for easy onsite adjustment to accommodate both left and right-handed door openings without the need for additional parts.

Commonly installed in PVC-U, timber, and composite door systems, this lock is an ideal choice for both new installations and like-for-like replacements. It has been rigorously tested to 200,000 cycles to ensure long-term reliability and features a corrosion-resistant surface for protection against the elements. It is also Secured by Design accredited, meeting police-preferred specifications for home security.

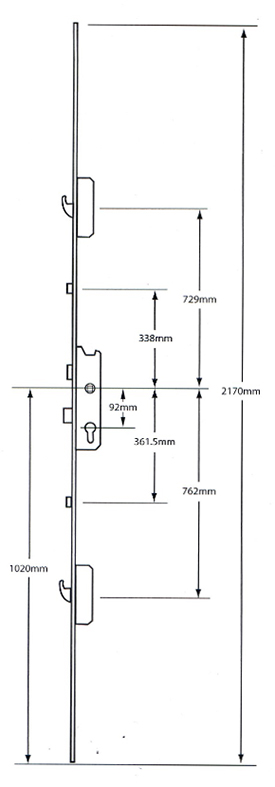

Dimensions Image: Fuhr 856 Type 3 Lever Operated Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Bolt Length 20
Body Length 2170
Case Width 50
Case Height 200
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

This is a lever-operated, lift-to-lock mechanism. To engage the two hooks and two rollers, you simply lift the door handle upwards. Once these points are engaged, you can turn the key in the Euro profile cylinder to fully deadlock the door.

Yes, the Fuhr 856 Type 3 features a reversible latch. This allows for quick and easy onsite adjustment to suit either left or right-handed door configurations without the need for additional parts or tools.

The combination of two hooks and two rollers offers enhanced protection and performance. The hooks provide essential anti-separation security by pulling the door into the frame, while the rollers ensure a smooth closing action and maintain a consistent, weather-tight seal.

The Fuhr 856 Type 3 is highly versatile and is commonly installed in PVC-U, timber, and composite door systems. It features a standard 16mm faceplate and an 8mm single spindle, making it an ideal choice for both new installations and like-for-like replacements.
