Fullex Crimebeater Direct Fit Double Door Set 2 Hook Split Spindle

£140.65

(£117.21 ex VAT)

sku: L32461
  • For matching over-rebated timber and composite double-door preparation
  • Master lock based on the Crimebeater 220 Pro design
  • Two opposing hooks with a central latch and deadbolt
  • Manufacturer lists 45mm backset and 92mm centres
  • Deadbolt engages when the handle is lifted
  • Inline split-spindle arrangement and reversible latch
  • Latch hold-back function on the lock faceplate
  • Slave-side keeps integrated into the faceplate
  • Match both leaves, full strip, keep positions and furniture before replacement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The Fullex Crimebeater Direct Fix Double Door Set is for matching over-rebated timber and composite double doors. The master lock has a latch, deadbolt and two opposing hooks; the slave-side faceplate incorporates keeps.

The manufacturer describes a deadbolt that engages when the handle is lifted and an inline split-spindle arrangement. Use matching furniture and the correct fitting instructions; do not equate the set with a separate XL slave unit.

A 45mm backset and 92mm centres alone do not establish a direct replacement. Compare both door leaves, faceplate form and full length, case fixings, locking/keep positions and spindle arrangement. Confirm the supplier pack's fixings, spindles, cylinders and any additional frame hardware.

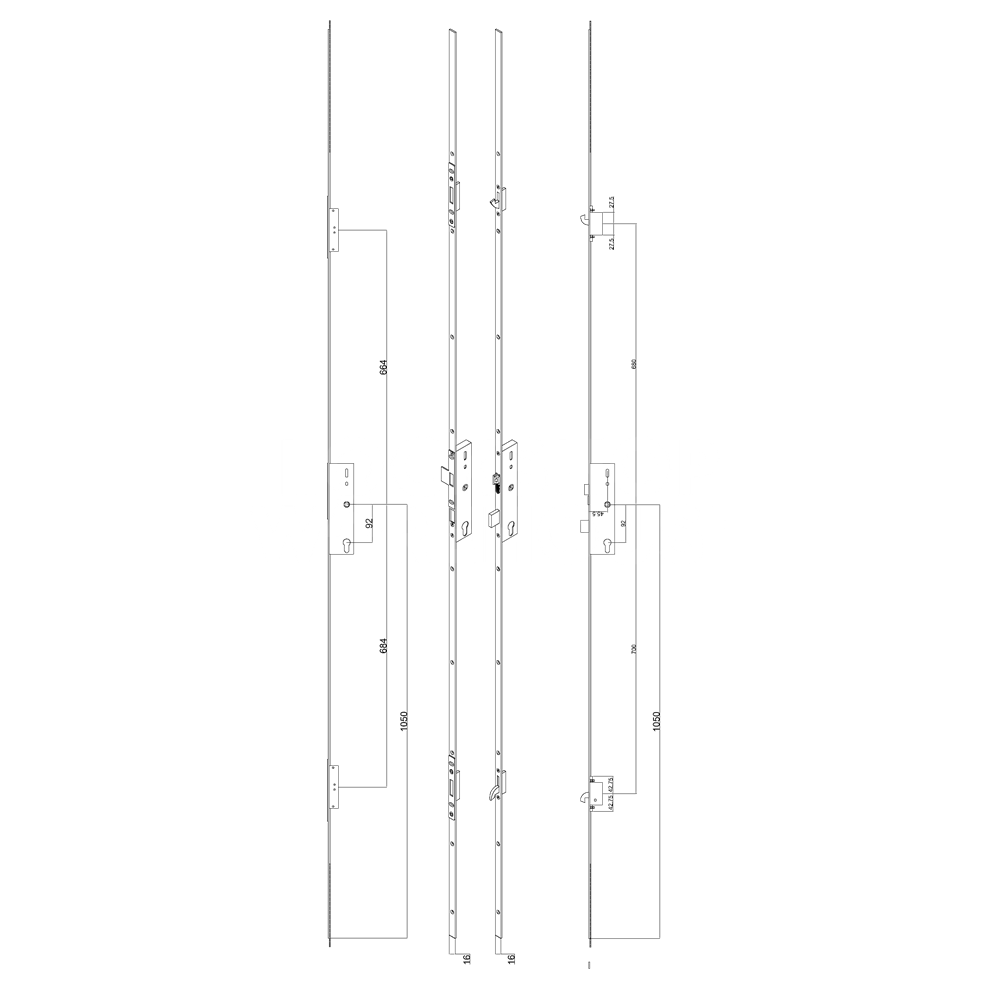

Dimensions Image: Fullex Crimebeater Direct Fit Double Door Set 2 Hook Split Spindle
Part Size (mm)
Backset 45
Body Length 2200
Locking Point Hooks 2
Faceplate Width 16

FAQs

The manufacturer lists this set for matching over-rebated timber and composite double-door preparations. Match both leaves and the integrated slave-side keep layout; a common backset and centres alone do not establish fit.

The set is listed with an inline split spindle. Outside latch operation depends on the correctly configured spindle and matching furniture; use the supplied-generation fitting instructions rather than assuming every handle arrangement behaves alike.

The slave-side faceplate incorporates keeps. Check the actual supplied keep adjustment and fitting instructions; do not use adjustment to compensate for a different door preparation or promise a weather seal from the lock alone.

The supplier describes lifting the handle to engage the hooks and deadbolt; the manufacturer specifically states that the deadbolt engages on handle lift. Use the correct locking instructions for the supplied set and matched furniture.
