Fullex Crimebeater Twin Spindle Gearbox Latch & Deadbolt

£28.00

(£23.33 ex VAT)

sku: FULLE-0012
  • Twin spindle design with 92mm and 62mm centres
  • Available in 35mm, 45mm, and 55mm backsets
  • Compatible with Fullex Crimebeater multipoint locking systems
  • Reversible latch for easy handing on-site
  • Secure latch and deadbolt configuration
  • Suitable for UPVC, timber, and composite door types
  • Cost-effective solution to replace just the center case

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Fullex Crimebeater Lever Operated Latch & Deadbolt Twin Spindle Gearbox is a high-performance replacement center case designed specifically for Fullex Crimebeater multipoint locking systems. This versatile gearbox is available in 35mm, 45mm, or 55mm backsets, making it compatible with a wide range of door profiles, including timber, composite, and UPVC.

Featuring a twin spindle layout with 92mm and 62mm centres, this gearbox offers flexible operation modes. The unit includes a secure latch and deadbolt for enhanced security. One of its key benefits is being a gearbox only replacement, allowing you to restore your door's locking functionality without the expense and labor of replacing the entire multipoint locking strip.

Technical Specifications:

  • Case Height: 227mm
  • Case Width: 47mm, 60mm, or 70mm (depending on backset)
  • Centres: 92mm / 62mm (Twin Spindle)
  • Backset: 35mm, 45mm, or 55mm
  • Operation: Lift lever to engage locks, turn cylinder to deadbolt

Handing & Installation: The latch is fully reversible. Simply remove the screw behind the latch, flip the latch head, and re-secure the screw to suit either left or right-handed doors. This product is an ideal choice for repair professionals looking for a reliable, brand-specific replacement part.

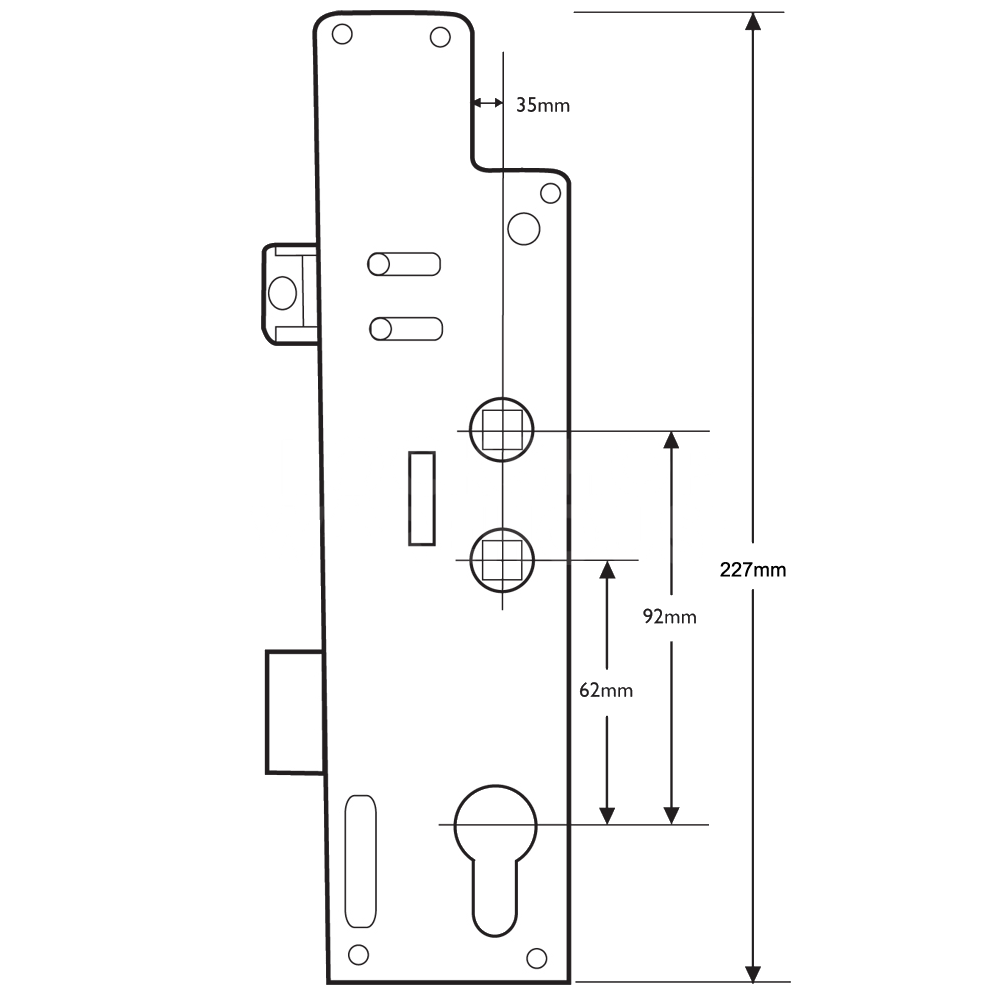

Dimensions Image: Fullex Crimebeater Twin Spindle Gearbox Latch & Deadbolt
Part Min (mm) Max (mm)
Backset 35 55
Case Width 47 70
Case Height 227 -

FAQs

This gearbox is designed specifically as a replacement for Fullex Crimebeater multipoint locking systems. It is suitable for use on UPVC, timber, and composite doors. To ensure a correct fit, you should match your existing backset measurement (35mm, 45mm, or 55mm) and confirm that your lock uses the 92mm/62mm twin spindle configuration.

The twin spindle feature provides two sets of centres at 92mm and 62mm. This configuration offers flexibility in how your door handles operate, allowing for either standard lever/lever handles or a lever/pad arrangement to control external access more effectively.

The latch is fully reversible for easy on-site installation. To change the handing, follow these steps:

  • Remove the screw located directly behind the latch.
  • Pull the latch head out and rotate it 180 degrees.
  • Push it back into place and re-tighten the screw.

Yes, this product is a center case only replacement. It is a cost-effective solution that allows you to restore the locking functionality of your door by simply swapping the internal gearbox, rather than replacing the entire full-length multipoint locking strip.
