Fullex Lever Operated Latch & Deadbolt Old Style Centre Case 35/68

£74.87

(£62.39 ex VAT)

sku: STD0144
  • Centre case only, not a full-length multipoint strip
  • Exact retained reference STD0144; supplier item L15436
  • Supplier lists split-spindle latch and deadbolt operation
  • Supplier-listed 35mm backset and 68mm centres require exact-generation fit checks
  • Match the actual case outline, followers, fixing pattern and strip drive
  • Do not treat Type A or later SL16 case names as an established part equivalence
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This old-style Fullex centre-case listing retains reference STD0144, linked to supplier item L15436. The supplier describes a split-spindle latch and deadbolt with 35mm backset and 68mm centres.

The archived manufacturer Type A reference STD0144-C3 has not been established as the same supplied part. Its backset description also differs, so confirm the exact code, measurement datum and case outline before replacement. Later SL16 cases and 68mm furniture are not automatic substitutes.

A case-only repair requires matching drive connections, followers, fixings and a serviceable strip. No universal door-material fit, direct replacement based only on PZ or generic latch-reversal procedure is asserted. Check the supplied instructions and complete spindle/furniture arrangement for the required operation.

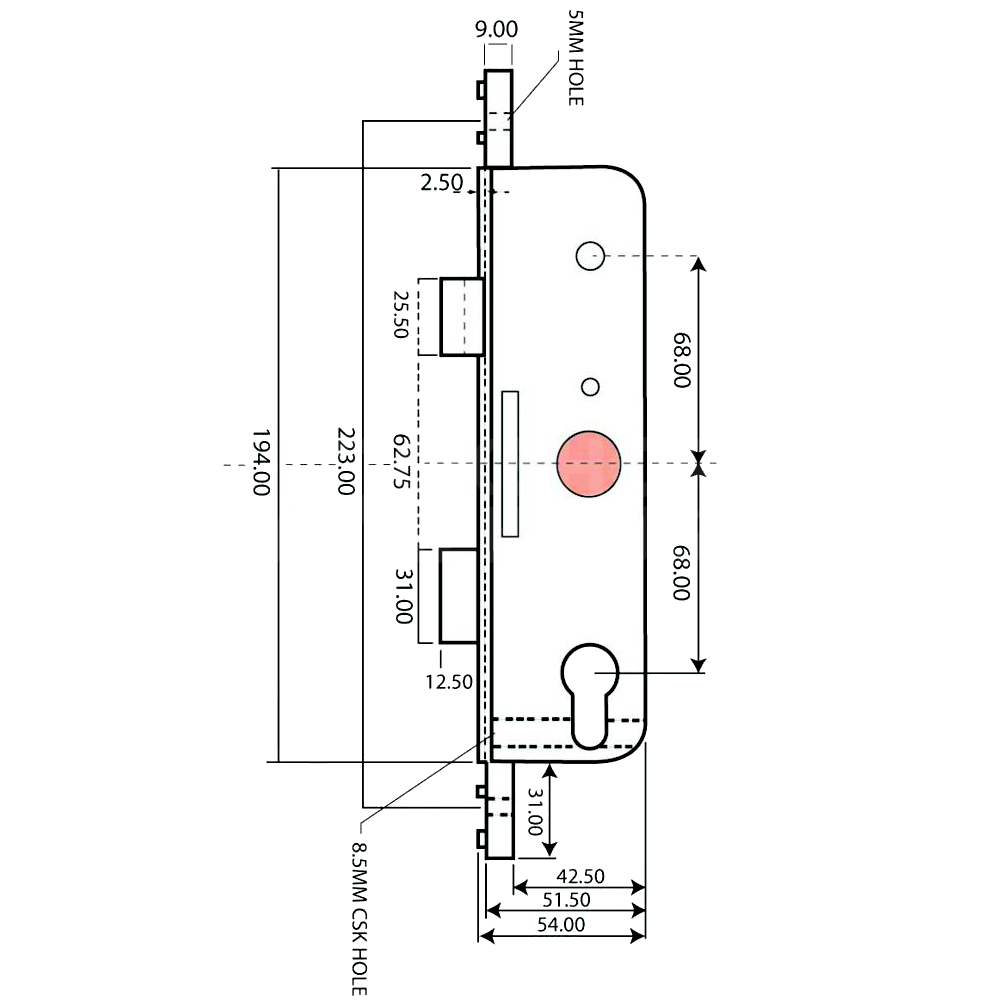

Dimensions Image: Fullex Lever Operated Latch & Deadbolt Old Style Centre Case 35/68
Part Size (mm)
centres 68
Backset 35
Case Width 55
Case Height 194

FAQs

The supplier lists STD0144 as 35mm backset and 68mm centres. Its exact manufacturer generation, case outline and measurement datum remain checks; the archived STD0144-C3 Type A entry is not an approved equivalence. Do not rely on a claimed 194mm height or PZ alone as a direct-fit guarantee.

The supplier describes a reversible latch. Confirm the exact supplied case revision and follow its instructions; no generic remove-a-screw procedure is specified here.

This is a centre-case-only listing. Replacing only the case requires a matching strip drive, fixings and serviceable remote mechanisms. It is not a guaranteed repair for every older Fullex strip.

Fit depends on the exact case, strip and door preparation rather than a timber, composite or uPVC label. Confirm STD0144's outline, followers, drive links, fixing pattern and complete furniture arrangement before replacement.
