Fullex SL16 Latch & Deadbolt Multipoint Lock

£138.95

(£115.79 ex VAT)

sku: SL160018
  • Complete multipoint unit, not a bare gearbox
  • Central latch and deadbolt with two remote deadbolts
  • Additional hook above the centre case, separate from the centre deadbolt
  • Listed with 35mm backset, 68mm centres and 16mm faceplate
  • Inline split-spindle arrangement
  • Match the exact reference, actual strip length and locking positions before replacement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This Fullex SL16 hook-and-bolt multipoint unit has a central latch and deadbolt, two remote deadbolts and an additional hook above the centre case. The additional hook is not a central hookbolt.

Match the exact manufacturer reference, actual full length, faceplate, case outline and remote bolt/hook positions before replacement. Similar SL16 hook-and-bolt versions are not automatically interchangeable.

Use the correct supplied-generation instructions for the inline split spindle and matching furniture. Do not force or break an internal pin from a generic conversion description. Confirm the cylinder, keeps and supplied parts for the actual assembly.

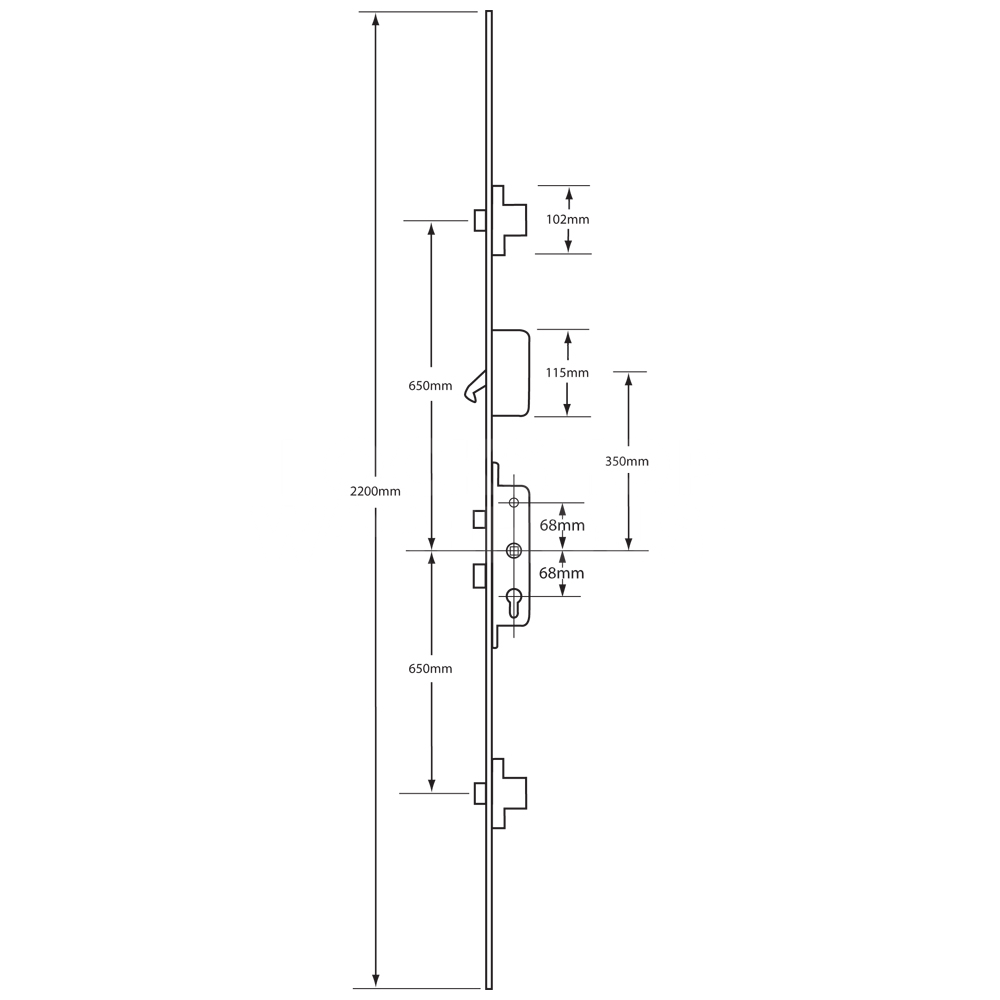

Dimensions Image: Fullex SL16 Latch & Deadbolt Multipoint Lock
Part Size (mm)
centres 68
Backset 35
Case Width 47
Case Height 193
Locking Point Dead Bolt 2
Locking Point Hooks 1
Faceplate Width 16

FAQs

The hook-and-bolt layout has a central latch and deadbolt, two remote deadbolts and an additional hook above the centre case. That hook is separate from the central deadbolt; this is a complete multipoint unit, not a bare centre case.

The listed SL16 hook-and-bolt versions are lever-operated with an inline split spindle. Match the supplied revision and furniture and use its locking instructions; do not apply a generic key-turn or conversion sequence to an unidentified version.

An inline split spindle requires correctly matched furniture and the supplied-generation instructions for outside latch operation. Do not carry out a destructive conversion from a generic pin-break description.

Match the exact SL16 reference and complete door preparation, including full length, case outline, remote bolt/hook positions, keeps, cylinder and furniture. Door material alone does not establish fit.
