skip to Fullex SL16 Lever Operated Multipoint Lock

Fullex SL16 Lever Operated Multipoint Lock

£108.36

(£90.30 ex VAT)

sku: FULLE-0014
  • Complete SL16 bolt-lock unit, not a bare replacement gearbox
  • Central latch and deadbolt with two remote deadbolts; three deadbolts in total
  • 68mm centres with an inline split-spindle arrangement
  • 35mm backset with 16mm faceplate, or 35mm, 45mm and 55mm backsets with 20mm faceplate
  • Match the full strip, case and remote bolt positions before replacement
  • Use the correct supplied-generation spindle instructions and matching furniture

size

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This Fullex SL16 bolt-lock family contains complete multipoint units with a central latch and deadbolt and two remote deadbolts. The listed versions have 68mm centres and an inline split-spindle arrangement.

The listed backset options include a 35mm backset/16mm faceplate version and 35mm, 45mm and 55mm backset/20mm faceplate versions. Match the original manufacturer reference, actual full length, end shape, centre-case outline and remote bolt positions; similar SL16 versions are not automatically interchangeable.

Use the correct supplied-generation instructions and compatible furniture to establish outside latch operation. Do not force or break an internal pin using generic conversion instructions. Check Euro-profile cylinder size, cam and clearance against the actual door.

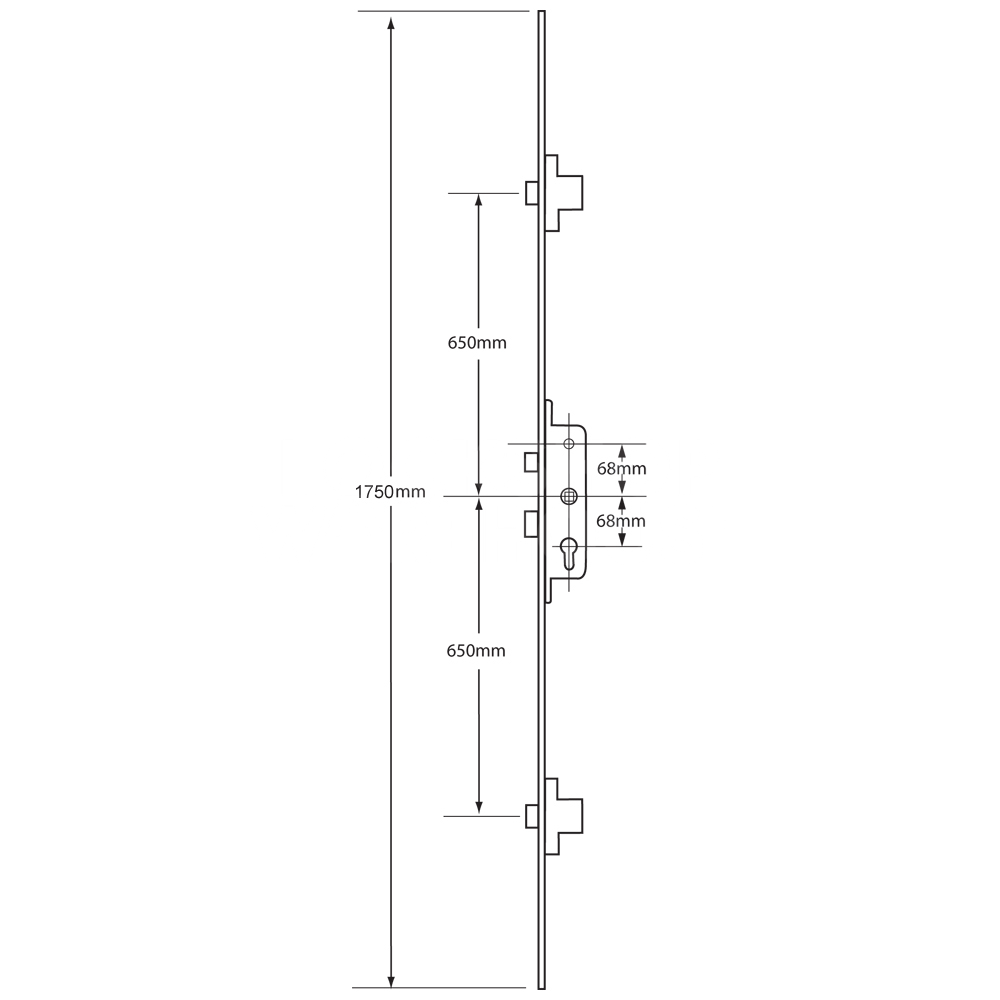

Dimensions Image: Fullex SL16 Lever Operated Multipoint Lock
Part Min (mm) Max (mm)
centres 68 -
Backset 35 55
Body Length 1750 -
Case Width 50 70
Case Height 195 -
Locking Point Dead Bolt 2 -
Faceplate Width 16 20

FAQs

These bolt-lock versions have a central latch and deadbolt plus two remote deadbolts: three deadbolts in total. They are separate from SL16 versions with an additional hook.

The listed versions use an inline split-spindle arrangement with matching furniture. Use the correct supplied-generation instructions to confirm outside latch operation; do not carry out a destructive pin-break conversion from a generic description.

Use a version that matches the complete preparation: exact reference, backset, faceplate, actual full length, centre-case outline, drive connections and remote bolt positions. Door material or 68mm centres alone do not establish replacement fit.

Use a correctly sized Euro-profile cylinder with the required cam and furniture clearance for the actual door. The 68mm centres measurement does not specify the cylinder length.
