Fullex XL Crimebeater Split Spindle Multipoint Lock

£62.15

(£51.79 ex VAT)

sku: L34112
  • Supplier reference FULLEX-XLC45BT20MS-FLEXILOK+TOP-DEDLOK
  • Listed in 45mm backset and 92mm centres with a 20mm radius faceplate
  • Split-spindle latch and hookbolt configuration with two remote deadbolts
  • Supplier lists a reversible latch and use with unsprung round-rose furniture
  • Match the exact strip, remote cases, furniture and keeps before replacement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
PAS 24:2016
Latch & Hookbolt

This Fullex XLC Flexi assembly is listed under reference FULLEX-XLC45BT20MS-FLEXILOK+TOP-DEDLOK. The supplier describes a split-spindle latch and hookbolt mechanism with two remote deadbolts, in a 45mm backset / 92mm-centres configuration.

The older compound reference must be matched as a complete assembly. Standard Flexi centre-case or preparation information does not establish interchangeability with its remote cases and drive connections. Check the faceplate, lock-point positions, handing, furniture and frame keeps against the existing unit.

The supplier lists unsprung round-rose furniture for this assembly. Outside-handle behaviour depends on the actual spindle and furniture arrangement. The lock listing alone does not certify the replacement doorset or establish suitability for every timber, composite or aluminium door.

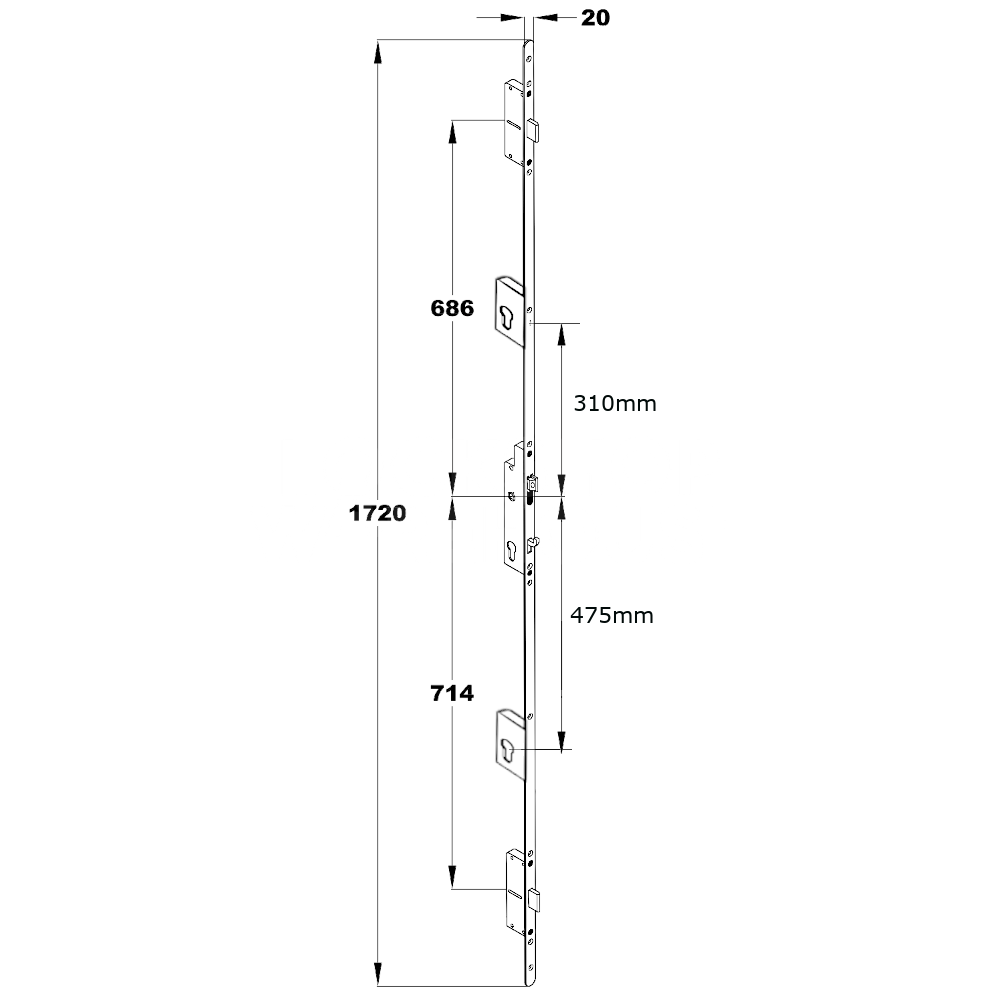

Dimensions Image: Fullex XL Crimebeater Split Spindle Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Body Length 1720
Case Height 227
Case Depth 60
Faceplate Width 20

Brand

SKU

L34112

Certifications

tick PAS 24:2016

FAQs

The supplier lists this reference as split spindle. Outside-handle access depends on the actual divided spindle, follower and furniture arrangement; do not assume that every handle combination prevents outside latch operation. Match the existing assembly and its operating requirements.

Match the exact FULLEX-XLC45BT20MS-FLEXILOK+TOP-DEDLOK assembly, door preparation and keeps. Current Flexi range information is not proof that this older compound reference fits every timber, composite or aluminium door.

The supplier lists a reversible latch. Use the instructions for the actual supplied case and check the handing of the full strip and keeps; no generic screw-removal procedure is specified here.

The supplier describes a central latch and hookbolt with two remote deadbolts. Exact lock-point positions and keep engagement must be checked. A general range PAS 24 statement does not certify this older reference or the complete replacement doorset.
