Fullex XL Lever Operated Multipoint Lock Latch & Hookbolt

£86.99

(£72.49 ex VAT)

sku: XL34R7474SP
  • Single spindle version: XL34R7474SP
  • Three hooks in total, including the centre hook, plus two anti-lift bolts
  • 4 adjustable roller cams for door compression
  • 35mm backset and 2200mm by 16mm faceplate
  • 735/758mm locking-point layout: match the original positions and frame keeps
  • Latch hold-back snib on the faceplate
  • Optional compatible shootbolts; match the complete door assembly
Document Icon Fullex XL: 2026 manufacturer model, spindle and matching-keep guide
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Hookbolt

The Fullex XL34R7474SP is the single spindle XL multipoint lock with 4 rollers and the 735/758mm locking-point layout. This exact SP reference is listed as single spindle with 92mm handle centres. It is not the separate S/S split-spindle or twin/dual version; a pad handle alone does not establish outside key-only entry.

The manufacturer lists this 2200mm by 16mm XL range for matching PVCu door preparations. Check the original reference, backset, hook/roller positions, centre case, frame profile and keep handing before replacement. Other door materials or double-door assemblies require their own matching preparation and components; an extendable strip does not establish universal fit.

The lock has three hooks in total, including the central hook, two anti-lift bolts and the listed roller cams. PAS 24 performance concerns the tested complete doorset with its specified components and security shootbolts, not an automatic approval for a stand-alone replacement on an unrelated door.

Matching parts: the linked one-piece keep family contains XLK4L7474 / XLK4R7474 for the matching layout; select the correct handing and profile packing. FULLEX-XLSB is the optional matching shootbolt pair, not a required extra for every single-door replacement or a substitute for the frame keeps.

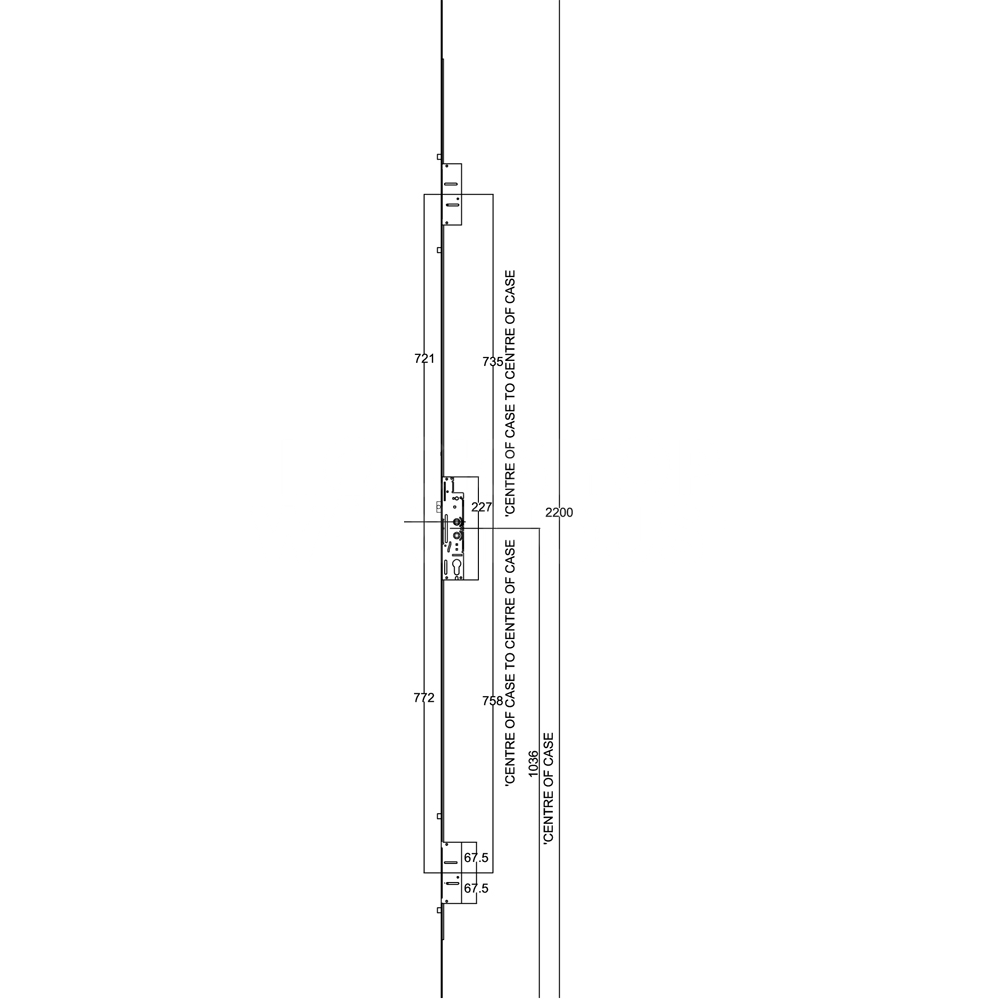

Dimensions Image: Fullex XL Lever Operated Multipoint Lock Latch & Hookbolt
Part Size (mm)
centres 92
Backset 35
Body Length 2200
Case Width 47
Case Height 228
Locking Point Anti Lift 2
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The manufacturer lists this 2200mm by 16mm XL range for matching PVCu door preparations. Check the original reference, backset, hook/roller positions, centre case, frame profile and keep handing before replacement. Other door materials or double-door assemblies require their own matching preparation and components; an extendable strip does not establish universal fit.

This system provides multi-layered protection through several security features:

  • Three opposing steel hooks to resist jemmying.
  • Two dedicated anti-lift bolts to prevent the door from being forced upwards.
  • Compatibility with PAS24 security standards when used in appropriate door systems.

Yes. The Fullex XL features four adjustable roller cams. These allow you to precisely manage the compression of the door against the frame, ensuring a smooth operation and an airtight weather seal that helps eliminate external draughts.

This exact SP reference is listed as single spindle with 92mm handle centres. It is not the separate S/S split-spindle or twin/dual version; a pad handle alone does not establish outside key-only entry.
