Gatemaster Heavy Duty Auto-locking Drop Bolt

£38.40

(£32.00 ex VAT)

sku: GM-ADB
  • Solid steel construction for heavy-duty industrial or residential use
  • Innovative auto-locking design prevents lifting when gates are closed
  • Designed for outdoor gate installations; follow the maintenance instructions
  • Available in weldable or screw-fixed versions for metal or timber gates
  • Substantial 100mm bolt movement provides deep, secure anchoring

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Weather Resistant
Waterproof
Recommended
Heavy Duty
10/10 Security Rating
1 Year Guarantee

Secure the inactive gate leaf. The second leaf keeps the bolt down.

The lift plate sits between the two gate leaves. Once both leaves are closed, it prevents the drop bolt being raised until the gate is opened.

Choose ADB for a weld-on fitting or ADBS for a screw-fixed installation. Both use a 19 mm solid-steel bolt with 100 mm travel. Check the drawing for the gate clearance and fixing arrangement.

Fitting and specification.

ADB is weld-on; ADBS is screw-fixed. Check the gate-leaf clearance and fixing position against the current drawing before installation.

The current guide specifies a 19 mm bolt and 100 mm movement. Follow its fitting sequence and set the required vertical position before use. Lubricate sliding parts periodically.

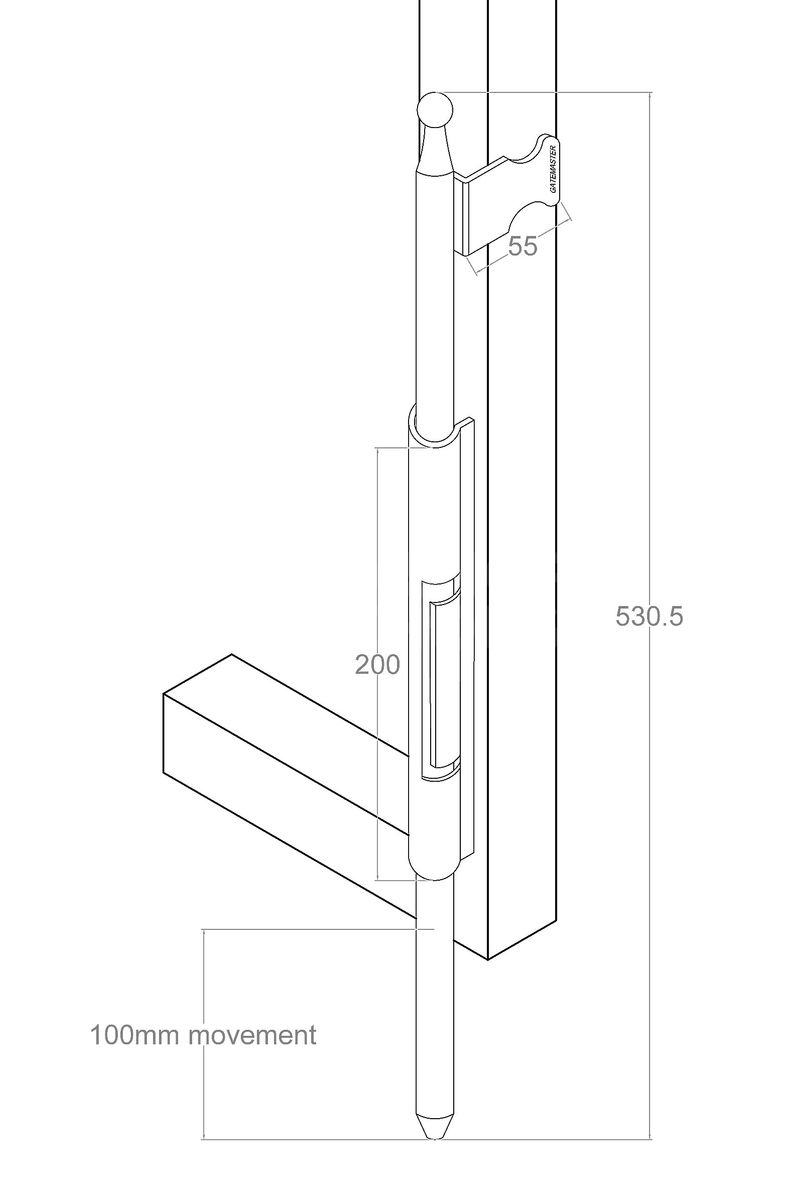

Dimensions Image: Gatemaster Heavy Duty Auto-locking Drop Bolt
Part Size (mm)
Height 530.5

FAQs

The Gatemaster drop bolt features a clever design where the lifting plate sits between the two gate leaves when they are closed. This prevents the bolt from being lifted or tampered with from the outside, providing a secondary layer of protection that earns it a 10/10 security rating.

Yes, this drop bolt is designed for versatility. It is available in two distinct mounting versions:

  • A weldable version for permanent attachment to steel gate frames.
  • A screw-fixed version for secure installation on timber gate leaves.

This heavy-duty bolt offers a substantial 100mm of movement, allowing for deep engagement into the ground or a ground socket. This deep anchoring, combined with the 19mm solid steel construction, provides maximum stability for large or heavy gates.

Absolutely. The Gatemaster drop bolt is manufactured from solid steel and treated with a weather and water-resistant finish. It is specifically engineered to resist corrosion and maintain smooth operation in all-season outdoor environments.
