Gatemaster Double-Sided Keypad Sliding Gate Code Lock

£268.80

(£224.00 ex VAT)

sku: GM-SGLD
  • Double-sided mechanical keypad for secure entry and exit without keys.
  • Robust one-piece die-cast casing provides maximum protection against the elements.
  • Auto-latching mechanism secures the gate instantly when slid closed.
  • Non-handed design is compatible with both left and right-hand gates.
  • Simple bolt-on installation requiring only three drilled holes.
  • Includes an adjustable keep to prevent unauthorized latch bolt access.
  • Backed by a 5-year guarantee for long-term peace of mind.
Document Icon Data Sheet

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty
6/10 Security Rating
5 Year Guarantee

The Gatemaster Double-Sided Sliding Gate Code Lock is a high-security, heavy-duty solution specifically engineered for sliding gate systems. Featuring mechanical combination keypads on both the internal and external faces, it provides controlled access from both sides without the need for keys.

Constructed with a one-piece die-cast casing, this lock is built to withstand harsh external environments while protecting the internal mechanism. The innovative auto-latching feature ensures that the gate is securely locked as soon as it is closed, engaging firmly into the included adjustable keep. This keep not only improves the aesthetic finish but also shields the latch bolt from tampering.

Key Features & Benefits:
  • Weather Resistant: Designed for outdoor durability with a 6/10 security rating.
  • Versatile Fit: Non-handed design suits any gate orientation; available for frames from 40mm to 60mm.
  • Easy Installation: Efficient bolt-on process requiring only three holes through the gate frame.
  • Comprehensive Kit: Includes hex keys, M8 fixing bolts, face plate, and a code changing pack.

Please note that a 100mm clearance gap is required behind the gate stile for proper fitting. With its heavy-duty build and 5-year guarantee, it is the premier choice for reliable sliding gate security.

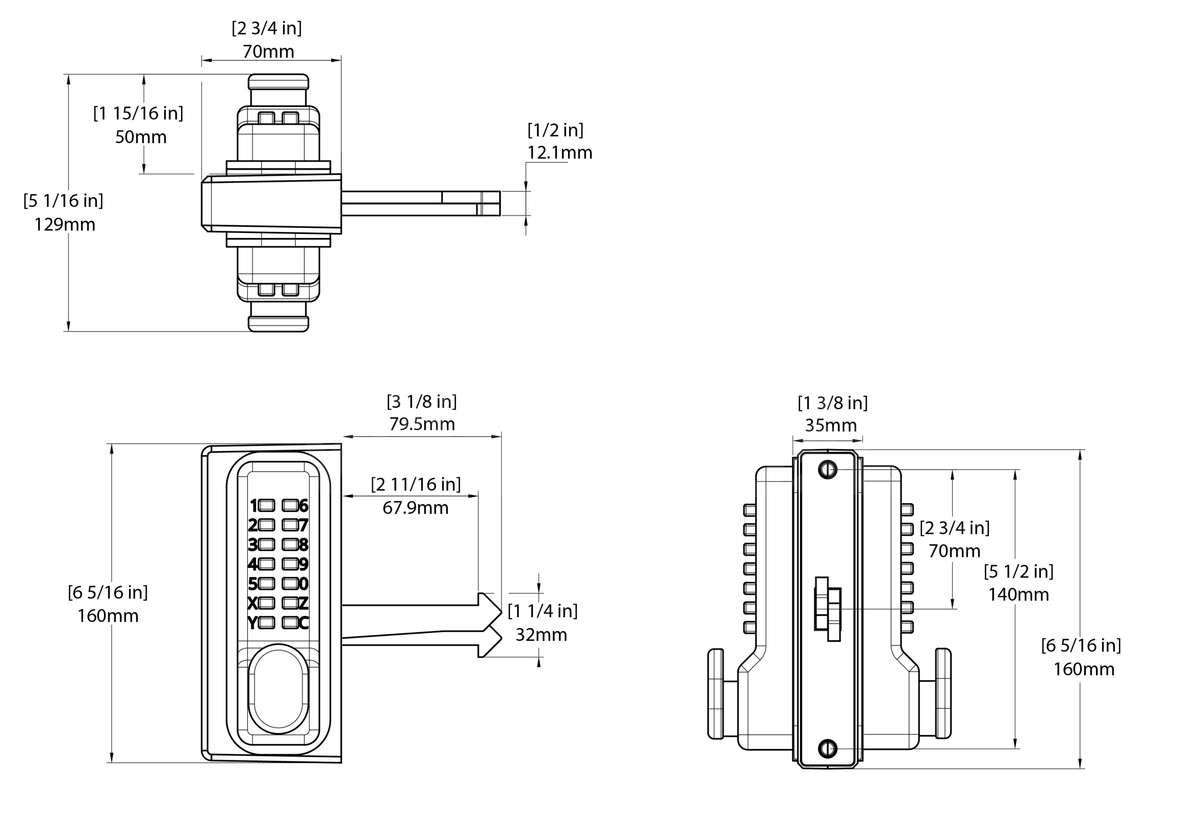

Dimensions Image: Gatemaster Double-Sided Keypad Sliding Gate Code Lock

Brand

SKU

GM-SGLD

Box Contents

2.5mm hex key + 3mm hex key

M8 fixing bolts

Face plate

Adjustable keep with self-expanding fasteners

Code changing pack

FAQs

No, this is a fully mechanical keypad lock. It does not require any electrical wiring or batteries, making it a reliable security solution for outdoor sliding gates where power access may be limited.

Yes, the lock features a non-handed design, meaning it is compatible with both left and right-hand sliding gate configurations. It is designed to fit gate frames ranging from 40mm to 60mm in width.

The auto-latching feature is designed for convenience and security; it automatically engages and secures the gate as soon as it is slid closed. The latch bolt fits into an adjustable keep that helps protect the bolt from being tampered with or forced open.

For a successful installation, you must have a minimum clearance gap of 100mm behind the gate stile. The fitting process is straightforward, requiring only three drilled holes through the gate frame for the bolt-on installation.
