skip to Gatemaster Select Pro Weld-In Deadlock

Gatemaster Select Pro Weld-In Deadlock

£57.60

(£48.00 ex VAT)

sku: GM-SWD16
  • Stainless steel deadbolt with a 30mm throw for enhanced security
  • Weld-in design allows for easy powder coating or galvanising after installation
  • Double-sided key access for convenient operation from both sides of the gate
  • Adjustable bolt length ensures a precise fit on-site every time
  • Durable 2.5mm steel lock case built for heavy-duty applications
  • Includes 3 keys and all necessary fixing components for immediate setup
Document Icon Data Sheet

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty
7/10 Security Rating
1 Year Guarantee
tick Key Profile: Standard
tick Key Profile: 5 Pin

The Gatemaster Select Pro Weld-In Deadlock is a robust and reliable security solution specifically engineered for metal gates. Its unique design allows the lock case to be welded directly into the gate frame before the finishing process, such as galvanising or powder coating, by simply removing the internal mechanism first.

Constructed from 2.5mm steel, the lock case is built to withstand heavy use and harsh weather conditions. The heart of the lock is a high-grade stainless steel deadbolt that provides a significant 30mm throw with just one turn of the key, ensuring superior security with a 7/10 rating. This model is keyed on both sides for easy access regardless of which side you are on.

Key Features and Benefits:

  • Adaptable Fitting: The deadbolt length is adjustable, allowing for precise alignment with the gate post during on-site installation.
  • Multiple Sizes: Available in four case widths—30mm, 40mm, 50mm, and 60mm—to suit different box section sizes perfectly.
  • High Security: Utilizes a standard 5-pin key profile for dependable protection.
  • Complete Package: Each unit comes supplied with 3 keys, a 3mm hex key, M5 fixing bolts, and a keep plate with self-drilling fasteners.

Backed by a 1-year guarantee, this weather-resistant, heavy-duty deadlock is the professional choice for secure metal gate fabrication.

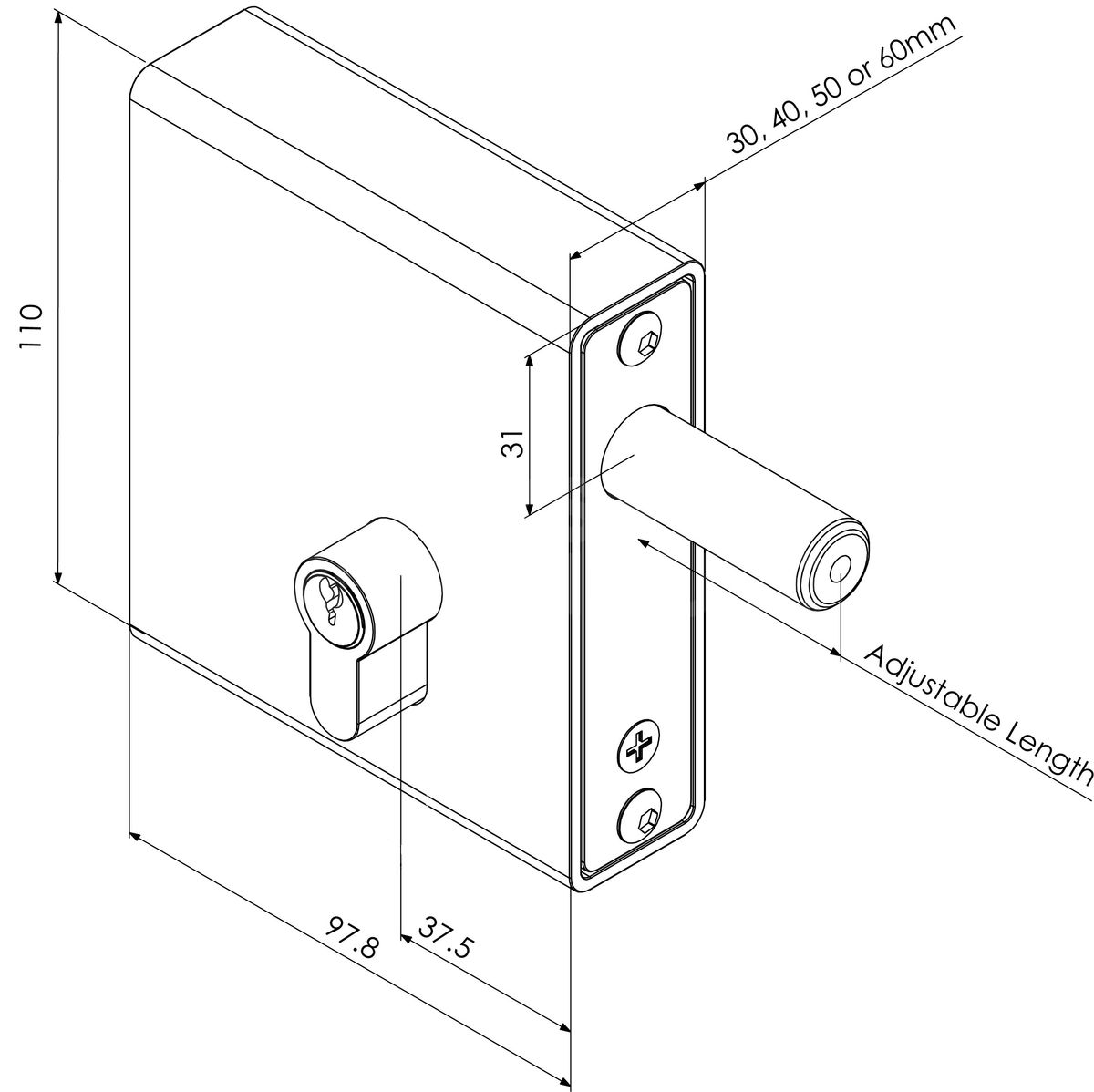

Dimensions Image: Gatemaster Select Pro Weld-In Deadlock

Brand

SKU

GM-SWD16

Box Contents

1x3mm hex key

M5 fixing bolts

Deadbolt

Keep plate (self-drilling fasteners)

A set of keys (3)

Key Profile

Key Profile: Standard
Key Profile: 5 Pin
