Gatemaster Select Pro Weld-In Latch Deadlock

£74.40

(£62.00 ex VAT)

sku: GM-SWLD16
  • Dual-action latch and deadbolt functionality on a single bolt
  • Adjustable stainless steel latchbolt for precise site fitting
  • High-security weld-in design ensures a permanent, robust fixing
  • Removable internal mechanism allows for easy gate galvanizing or powder coating
  • Integrated brass bearing ensures smooth and long-lasting operation
  • Available in four widths to suit popular gate frame sizes
Document Icon Data Sheet

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty
7/10 Security Rating
1 Year Guarantee
tick Key Profile: Standard
tick Key Profile: 5 Pin

The Gatemaster Select Pro Weld-In Latch Deadlock offers a professional-grade security solution for metal gates. This versatile lock features a unique single-bolt design that functions as both a spring latch and a 30mm deadbolt. The latch is operated by standard handles for convenient access, while the key extends the bolt to its full deadlocked position for maximum protection.

Engineered for professional fabricators, the lock case is welded directly into the gate frame. A key benefit of this design is the removable internal mechanism, which allows you to weld the case and finish the gate (via galvanizing or powder coating) without risk of damaging the precision lock components.

  • Security Rating: 7/10 for heavy-duty protection
  • Weather Resistant: Built to withstand outdoor environments
  • Adjustability: Latchbolt can be rotated for left or right-handed gates
  • Durability: Fitted with a brass latchbolt bearing for smooth action

Supplied as a complete kit, including a gate post strike plate, three keys, and all necessary fixing hardware. Choose from 30mm, 40mm, 50mm, or 60mm widths to perfectly match your gate profile.

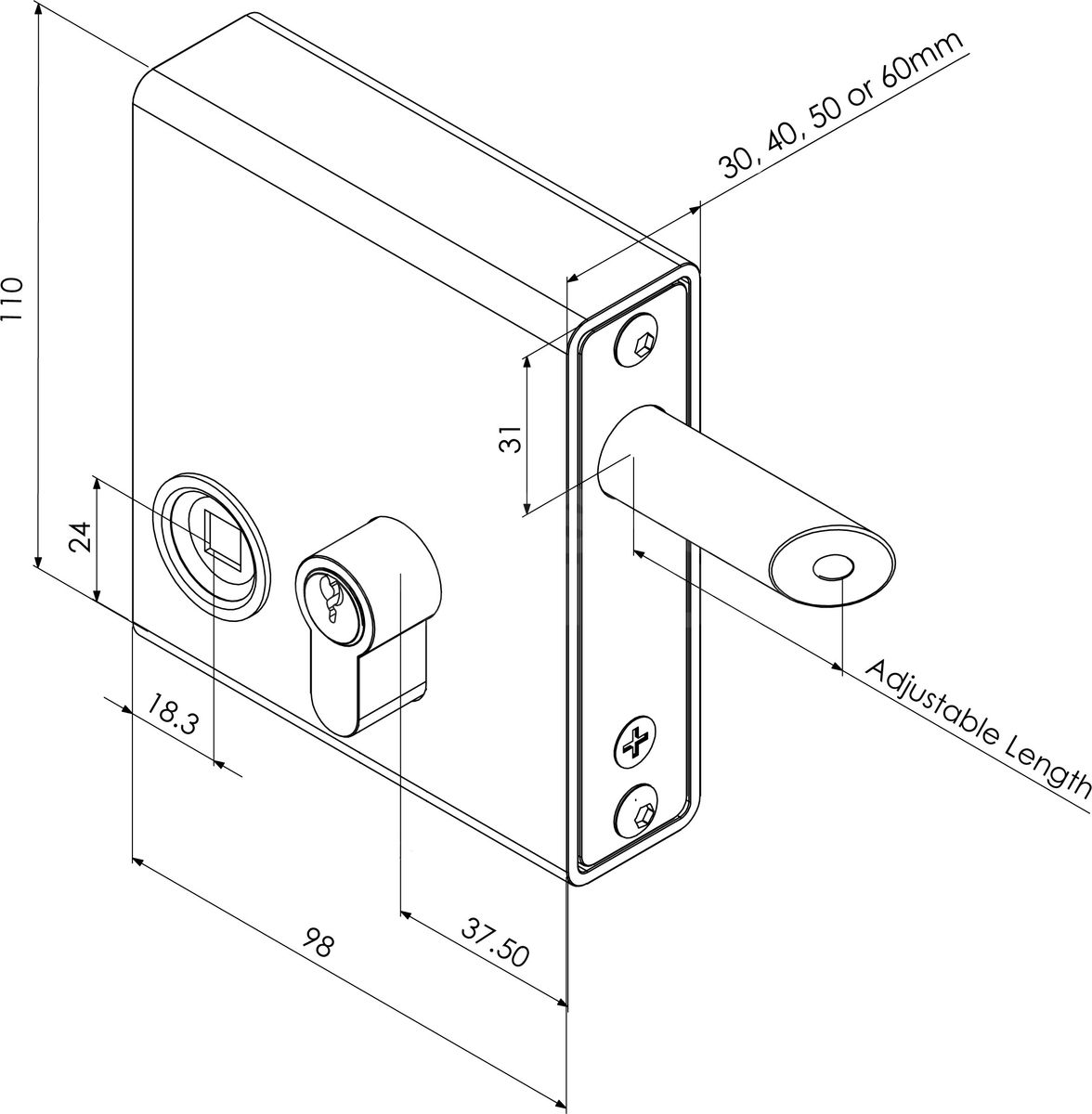

Dimensions Image: Gatemaster Select Pro Weld-In Latch Deadlock

Brand

SKU

GM-SWLD16

Box Contents

1x3mm hex key

M5 fixing bolts

Latchbolt

Strike plate (self-drilling fasteners)

A set of keys (3)

Key Profile

Key Profile: Standard
Key Profile: 5 Pin
