Gatemaster Select Pro Weld-In Long Throw Keylatch

£81.60

(£68.00 ex VAT)

sku: GM-SWKLLT16
  • Automatic locking: Gate slams shut and requires a key to open every time.
  • Long throw security: Stainless steel latchbolt springs 20mm into the post for maximum protection.
  • Weld-in design: Case can be welded, galvanized, and powder coated with the gate frame.
  • Reversible & adjustable: Latchbolt rotates for left or right-handed gates and is length-adjustable.
  • Smooth operation: Fitted with a brass latchbolt bearing for long-lasting, fluid action.
  • High security: Rated 7/10 for security and includes a 5-pin cylinder with three keys.
Document Icon Data Sheet

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty
7/10 Security Rating
1 Year Guarantee
tick Key Profile: Standard
tick Key Profile: 5 Pin

The Gatemaster Select Pro Long Throw Keylatch is the ultimate solution for securing communal or private gates automatically. Designed to provide peace of mind, this lock ensures the gate is secured every time it shuts behind you, requiring a key for authorized access. Its heavy-duty construction and 7/10 security rating make it ideal for high-traffic environments where security is paramount.

Built for professional gate fabricators, the weld-in case is designed to be integrated directly into the gate frame. The internal mechanism can be easily removed, allowing the outer case to be galvanized or powder coated alongside the gate for a professional, seamless finish. The lock features a stainless steel latchbolt with an impressive 20mm throw, providing exceptional engagement with the strike plate.

  • Adaptable Fitting: The latchbolt is fully reversible for left and right-handed gates and offers adjustable length for precise on-site installation.
  • Weatherproof Durability: Featuring a brass latchbolt bearing, this lock is engineered for smooth operation and long-term resistance against the elements.
  • Comprehensive Kit: Each unit comes complete with a strike plate, self-drilling fasteners, M5 fixing bolts, a 3mm hex key, and three 5-pin standard keys.

The Select Pro is available in four case widths (30mm, 40mm, 50mm, and 60mm) to suit all popular box section sizes, ensuring a perfect fit for any metal gate project.

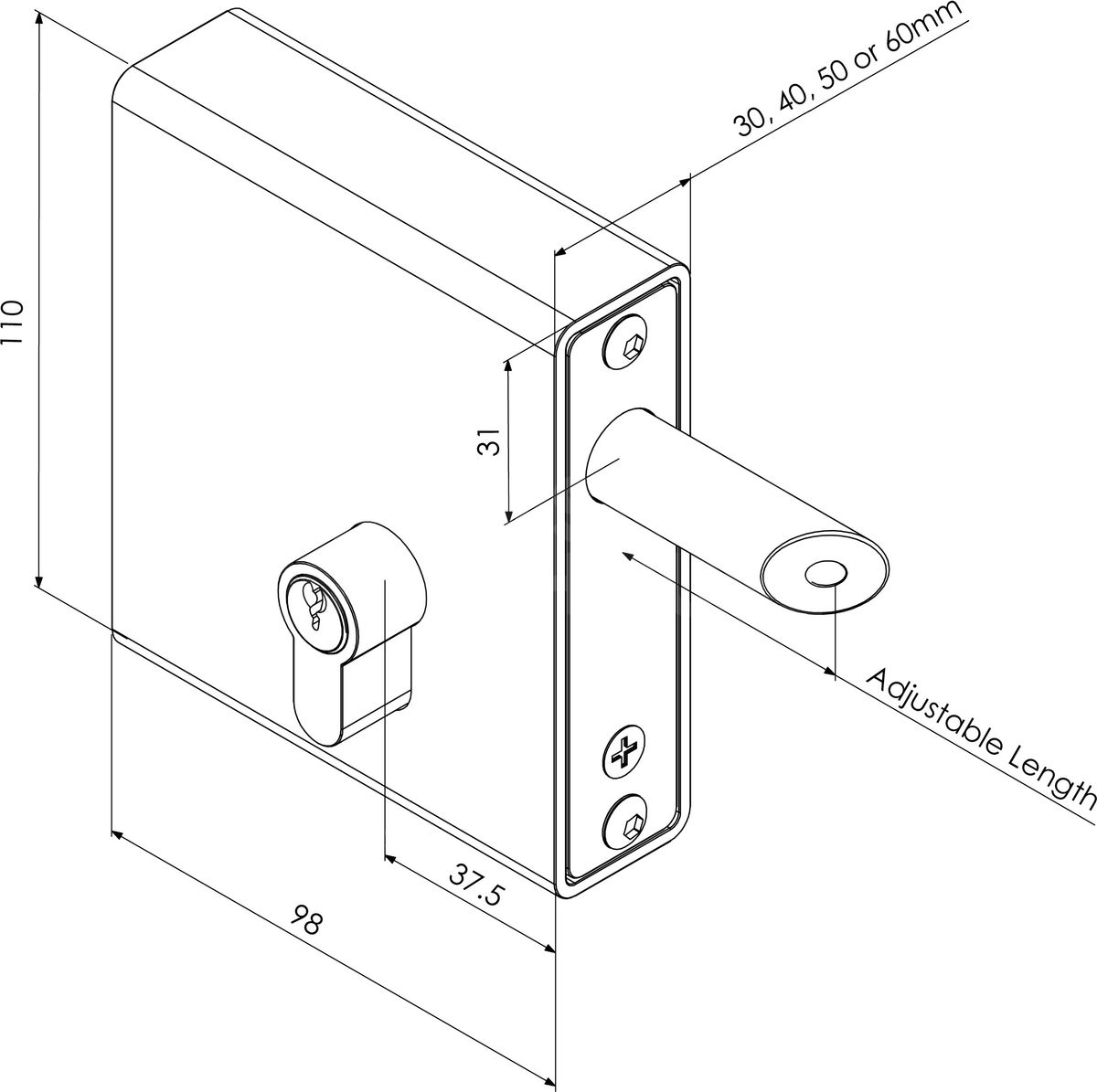

Dimensions Image: Gatemaster Select Pro Weld-In Long Throw Keylatch

Brand

SKU

GM-SWKLLT16

Box Contents

1x3mm hex key

M5 fixing bolts

Latchbolt

Strike plate (self-drilling fasteners)

A set of keys (3)

Key Profile

Key Profile: Standard
Key Profile: 5 Pin

FAQs

Yes, the Gatemaster Select Pro Keylatch features a fully reversible latchbolt. You can rotate the bolt to accommodate either left-handed or right-handed gate openings. The bolt length is also adjustable to ensure precise engagement with the strike plate during installation.

Yes, this lock is designed for automatic security. Once the gate is closed, it locks instantly and requires a key to open every time. This makes it an ideal solution for securing communal or private access points without needing to manually lock it behind you.

The lock is specifically designed for professional gate fabrication. You can weld the outer case into your gate frame and then remove the internal mechanism. This allows the outer case to be galvanized and powder coated along with the rest of the gate for a seamless, high-quality finish.

To ensure a perfect fit for various metal gate projects, this lock is available in four specific case widths designed to match standard box sections:

  • 30mm
  • 40mm
  • 50mm
  • 60mm
