Gatemaster Sliding Gate Code Lock - Single-Sided Keypad

£246.00

(£205.00 ex VAT)

sku: GM-SGLDS
  • Mechanical keypad operation requires no electrical power or wiring.
  • Heavy-duty one-piece die-cast casing provides superior weather resistance.
  • Simple installation process requiring only three drilled holes to fit.
  • Convenient auto-latching mechanism secures the gate immediately upon closing.
  • Integrated hold-back function allows the gate to remain unlocked when needed.
  • Supplied with an adjustable keep for enhanced security and a professional finish.
  • Available in multiple sizes to fit gate frames from 40mm up to 60mm.
  • Includes a comprehensive 5-year guarantee for long-term peace of mind.
Document Icon Data Sheet

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty
6/10 Security Rating
5 Year Guarantee

The Gatemaster Sliding Gate Code Lock is a high-quality, heavy-duty security solution designed for any sliding gate unit. This mechanical lock is engineered for reliability, requiring no power or complex wiring. The robust one-piece die-cast casing provides maximum resistance against the elements, making it perfect for outdoor installations.

Installation is straightforward: simply drill three holes and bolt the lock directly onto the gate. The system features an auto-latching function, which ensures the latch arms automatically catch and secure into the keep when the gate is closed. For periods requiring frequent access, a hold-back button on the rear allows you to keep the latch in an open position.

This product is supplied with an adjustable keep that not only improves the overall appearance of the gate but also increases security by preventing external access to the latch bolt. With a 6/10 security rating and a 5-year guarantee, it offers a durable and dependable locking mechanism for residential or commercial properties.

  • Easy Install: Drill 2 holes for fixings and 1 for the latch arms.
  • Weather Resistant: Built to withstand harsh outdoor conditions.
  • Complete Kit: Includes hex keys, M8 fixing bolts, face plate, and code changing pack.

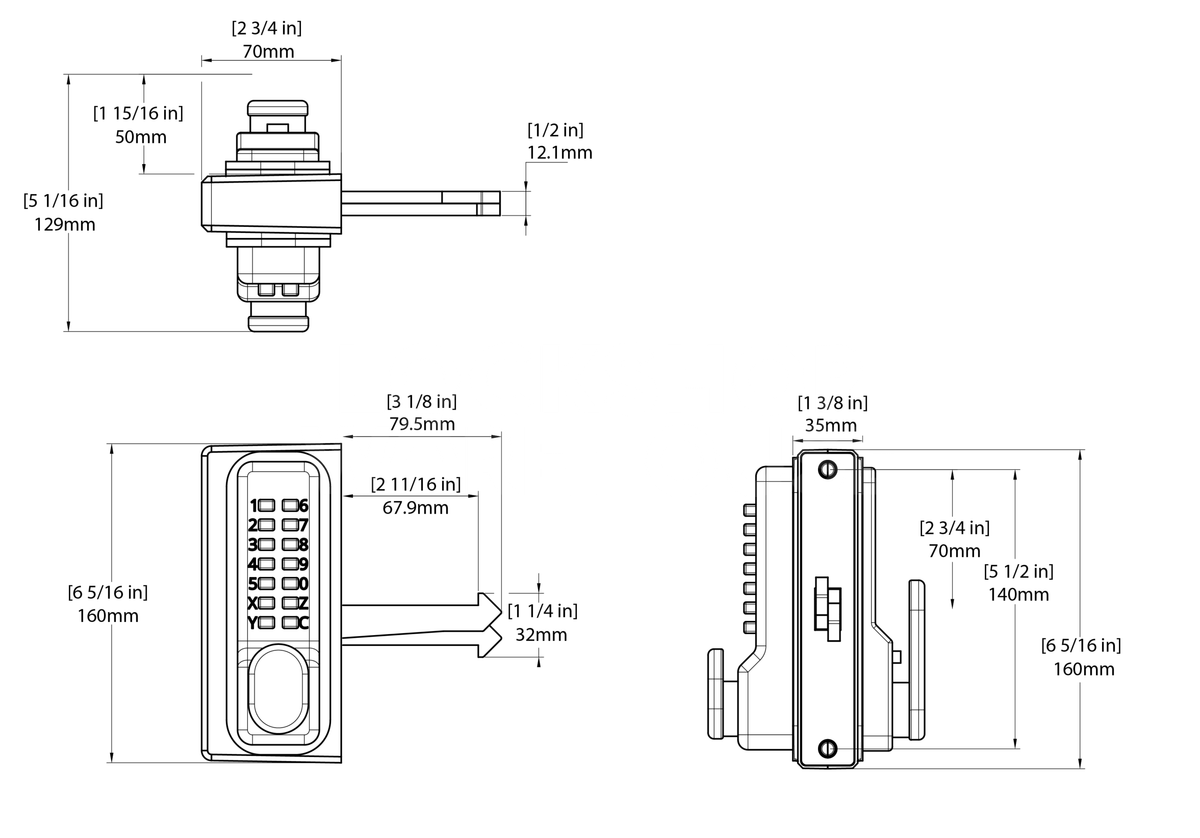

Dimensions Image: Gatemaster Sliding Gate Code Lock - Single-Sided Keypad
Part Size (mm)
width 70
Height 160
Depth 30

Brand

SKU

GM-SGLDS

Box Contents

2.5mm hex key + 3mm hex key

M8 fixing bolts

Face plate

Adjustable keep with self-expanding fasteners

Code changing pack
