skip to Gatemaster Weld-In Double Throw Latch Deadlock

Gatemaster Weld-In Double Throw Latch Deadlock

£67.20

(£56.00 ex VAT)

sku: GM-GLD
  • Combined latch and deadlock functionality for versatile gate security
  • Secure 24mm double throw deadbolt operated with two key turns
  • Fully reversible latchbolt for easy left or right-handed installation
  • Available in 4 widths (30mm to 60mm) to suit various box section sizes
  • Heavy-duty weather-resistant design with a 7/10 security rating
  • Complete kit includes keep plate, 5-pin Eurocylinder, and 3 keys
Document Icon Data Sheet

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty
7/10 Security Rating
1 Year Guarantee
tick Key Profile: Standard
tick Key Profile: 5 Pin

The Gatemaster Weld-In Double Throw Latch Deadlock offers a premium security solution for metal gates, seamlessly blending the convenience of a day-to-day latch with the robust protection of a deadlock. Designed to be welded directly into the gate frame, this lock allows for a clean, integrated finish that can be galvanized and painted alongside your gate structure.

Its standout feature is the double throw deadbolt, which extends a full 24mm with just two turns of the key, providing exceptional resistance against tampering and forced entry. For daily use, the spring-loaded latchbolt provides easy closing and can be easily rotated to suit both left and right-handed gate configurations.

  • High Security: Rated 7/10 for security with a standard 5-pin key profile for peace of mind.
  • Durable Construction: The heavy-duty, weather-resistant build ensures long-lasting performance in harsh outdoor environments.
  • Versatile Fit: Four available lockcase widths (30mm, 40mm, 50mm, and 60mm) ensure compatibility with standard box section sizes.
  • Simple Maintenance: The lock mechanism is designed to slide into the case after the gate has been painted or galvanized.

Each unit comes complete with a keep plate, a set of three keys, a Eurocylinder, and all necessary countersunk screws. Please note that handles should be ordered separately to match your preferred design.

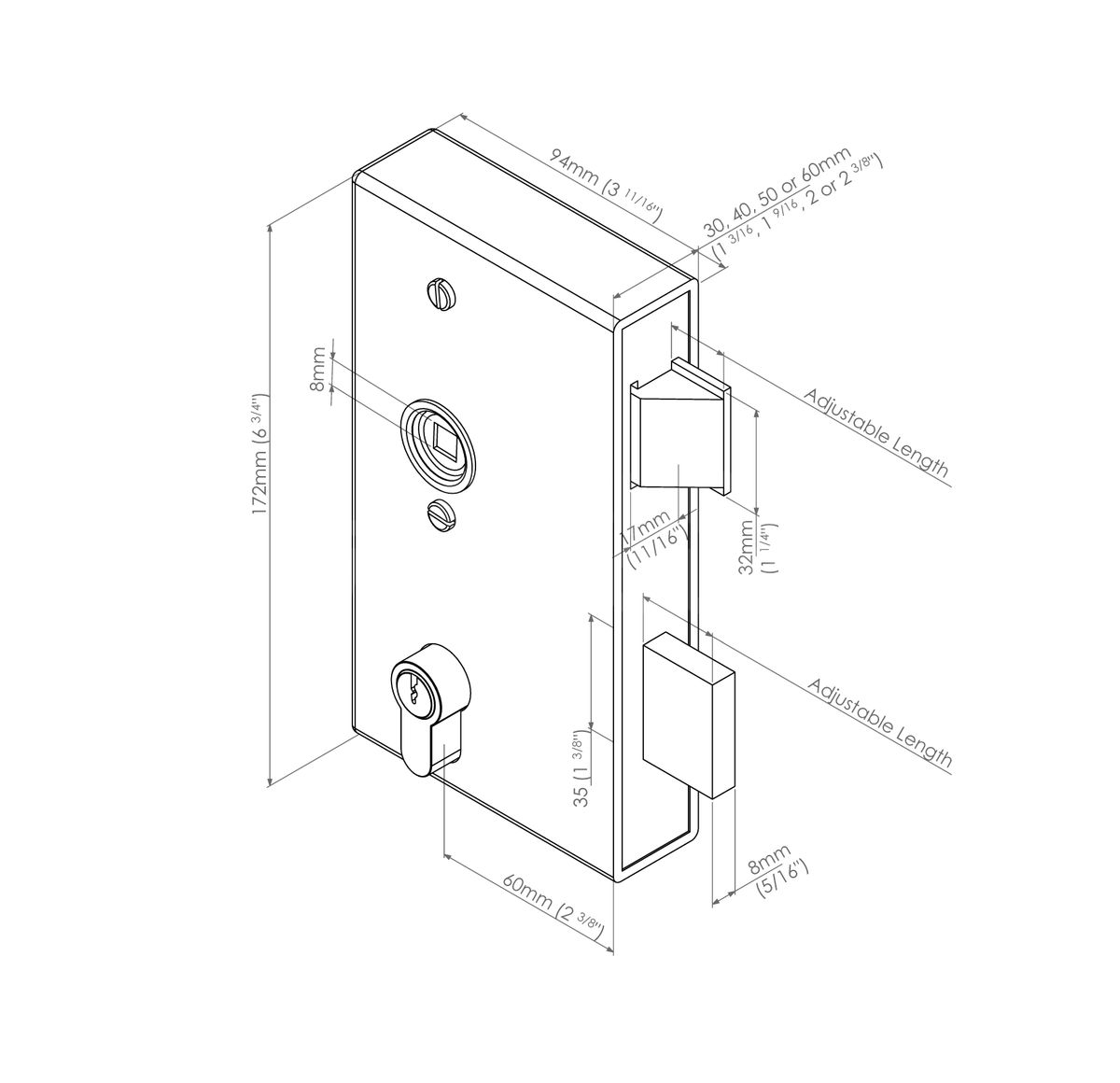

Dimensions Image: Gatemaster Weld-In Double Throw Latch Deadlock

Brand

SKU

GM-GLD

Box Contents

Keep plate

A set of keys (3)

Eurocylinder

Countersunk screws

Key Profile

Key Profile: Standard
Key Profile: 5 Pin

FAQs

Yes, the latchbolt is fully reversible. This allows you to easily adjust the orientation of the lock to suit either left or right-handed gate configurations during installation.

You should select a width that matches the thickness of your gate's metal box section. This lock is available in four standard widths to ensure a flush, integrated fit:

  • 30mm
  • 40mm
  • 50mm
  • 60mm

Yes. The lock is designed so that the outer case can be welded into the frame first. The internal lock mechanism should be kept separate while the gate is being galvanized or painted and then slid into the case once the finish is dry to prevent the mechanism from being damaged or clogged.

No, handles are sold separately. This allows you to choose a handle design that specifically matches the aesthetic of your gate. The kit does include the lock mechanism, a 5-pin Eurocylinder with three keys, the keep plate, and all necessary fixing screws.
