GU 2 Hook Multipoint Lock with Split Spindle Latch & Deadbolt

£87.72

(£73.10 ex VAT)

sku: GU-0022
  • Twin hook bolts provide high-level security and improved weather sealing.
  • Split spindle function allows for various handle configurations including restricted external access.
  • Central gearbox includes both a latch and a deadbolt for primary locking engagement.
  • Designed for compatibility with standard Euro profile cylinders.
  • Suitable for installation in door systems featuring a 16mm faceplate channel.
  • Lever-operated mechanism ensures smooth engagement of all locking points.

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The GU Lever Operated Multipoint Lock is a robust security mechanism designed for use on UPVC, timber, and composite doors. This system provides multiple engagement points along the door edge, significantly increasing resistance against forced entry and improving the door's weather seal.

At the heart of the unit is a central gearbox featuring a latch and deadbolt. The system is further enhanced by two hardened steel hooks that engage into keeps in the door frame. The split spindle functionality offers flexibility in how the door is operated; when used with compatible handles, it can prevent entry from the outside without a key, even if the door is closed but not fully locked.

This locking mechanism is typically used as a direct replacement for existing GU systems or in new door fabrications. It is compatible with standard Euro profile cylinders and is designed to fit into a 16mm wide faceplate groove. The lever-operated action allows users to easily throw the hooks and deadbolt by lifting the handle before securing the door with a key turn.

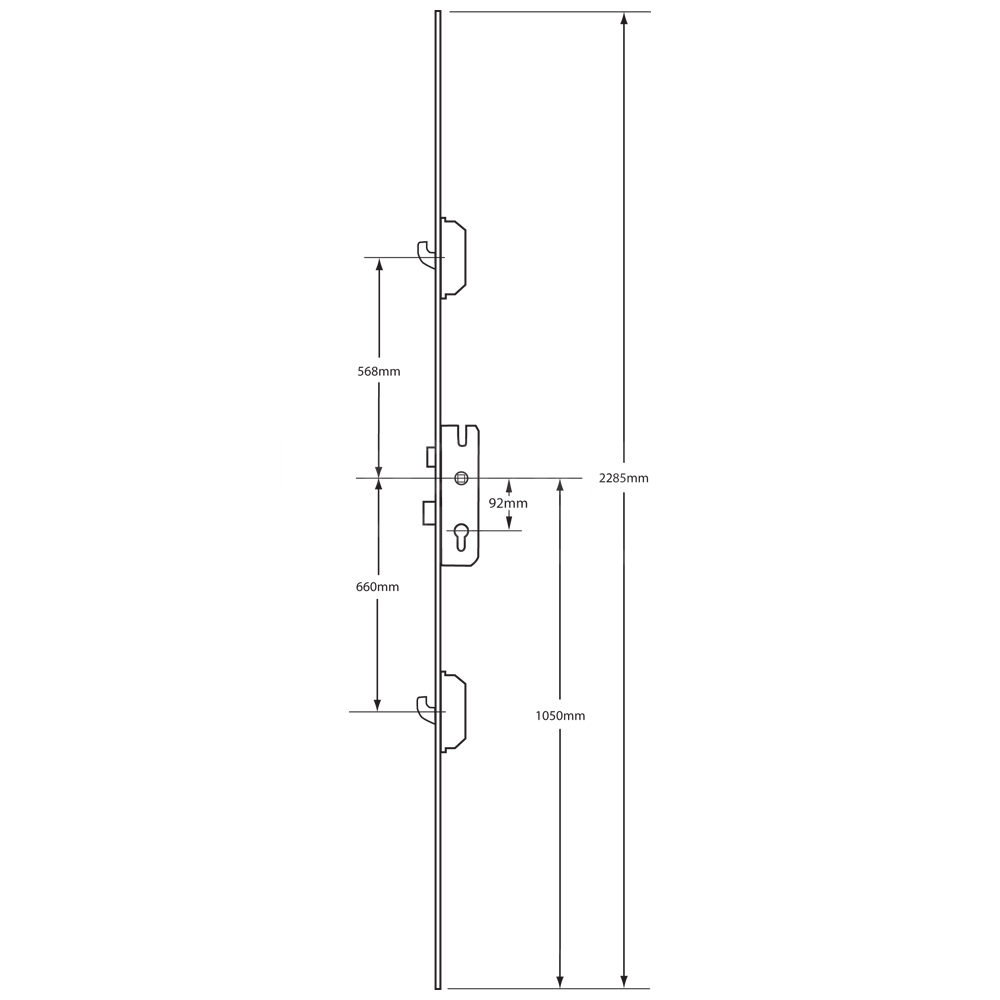

Dimensions Image: GU 2 Hook Multipoint Lock with Split Spindle Latch & Deadbolt
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Case Width 50 -
Case Height 195 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

The split spindle function allows for handle configurations that restrict external access. When set up this way, the door cannot be opened from the outside without a key even when it is just latched, providing an extra layer of security before you even turn the deadbolt.

This GU multipoint lock is designed for versatility and is suitable for installation in:

  • UPVC doors
  • Composite doors
  • Timber doors

It is specifically engineered to fit into door systems featuring a standard 16mm faceplate channel.

This system features multiple engagement points for high security, including:

  • Two hardened steel hook bolts
  • A central latch
  • A central deadbolt

The hook bolts not only secure the door against forced entry but also pull it tight against the frame to improve the weather seal.

Yes, this mechanism is typically used as a direct replacement for existing GU systems. It is designed to work with standard Euro profile cylinders and features a lever-operated mechanism for smooth engagement of all locking points.
