GU Fast Lock Multipoint Latch & Deadbolt

£111.88

(£93.23 ex VAT)

sku: 6-33088-01-0-1
  • FastLock lever-operated multipoint unit
  • Central latch and deadbolt with two auxiliary deadbolts
  • 35mm backset and 92mm centres
  • Euro profile cylinder case and 16mm faceplate
  • Match the exact FastLock reference, keeps and handle/spindle arrangement before replacement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The GU FastLock 6-33088-01-0-1 has a central latch and deadbolt with two auxiliary deadbolts along the strip. It has a 35mm backset, 92mm centres, a Euro profile cylinder case and a 16mm faceplate.

Match the existing FastLock reference, case and deadbolt positions, fixing points, keeps and handle/spindle arrangement. FastLock operation and furniture must be matched to the complete assembly; the GU name, 92mm centres or faceplate width alone do not establish replacement fit.

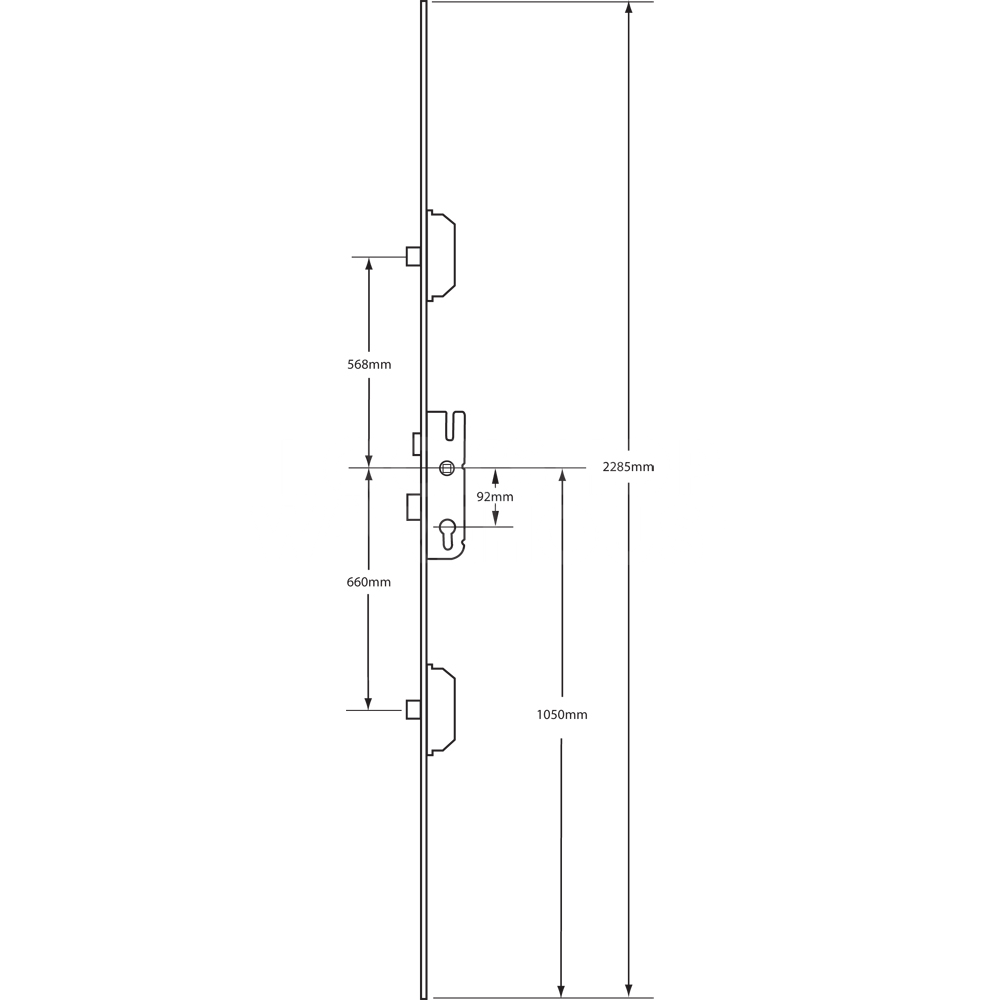

Dimensions Image: GU Fast Lock Multipoint Latch & Deadbolt
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 195
Locking Point Dead Bolt 2
Faceplate Width 16

FAQs

This FastLock has 92mm centres. Also match the follower, handle/spindle arrangement, spindle length, handle fixings and clearances to the exact existing assembly.

The centre case contains a latch and deadbolt, with two auxiliary deadbolts along the strip. This describes the mechanism layout, not a security rating for the complete door.

Match the exact existing FastLock assembly and its fitting instructions, including the spindle and inside/outside furniture arrangement. The handle behaviour cannot be selected from the 92mm centres alone.

This FastLock has a Euro profile cylinder case. Match the cam, fixing arrangement and cylinder length to the exact lock, door thickness and furniture; cylinder profile alone does not establish replacement fit.
