GU Fercomatic Automatic Latch & Deadbolt Multipoint Lock

£99.64

(£83.03 ex VAT)

sku: GU-0049
  • Central latch and deadbolt with two roller locking points
  • Single-spindle layout
  • Euro-profile cylinder cut-out
  • Available with 40mm or 50mm backsets
  • 70mm centres and an 18mm faceplate

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The GU Fercomatic is a full-length multipoint lock with a central latch and deadbolt and two roller locking points. The range has a single spindle, 70mm centres and an 18mm faceplate, with 40mm or 50mm backsets.

For a replacement, match the complete reference, centre-case layout, locking-point positions and keeps to the existing door. Check the handle spindle and cylinder dimensions against the supplied lock; matching centres or backset alone does not establish fit.

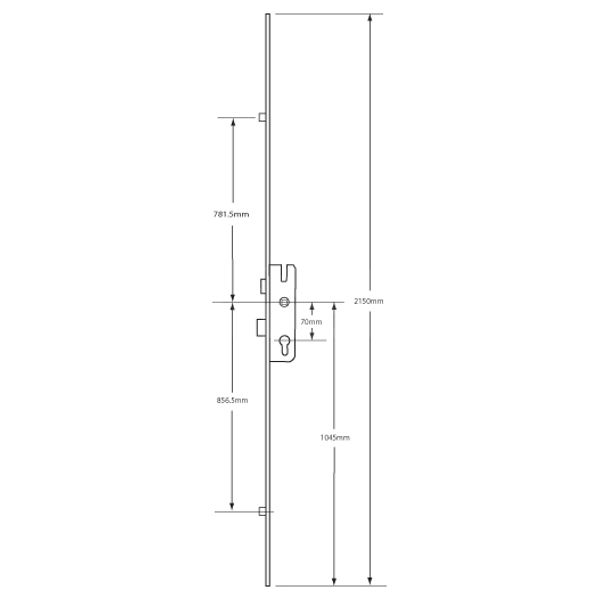

Dimensions Image: GU Fercomatic Automatic Latch & Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 70 -
Backset 40 50
Body Length 2150 -
Locking Point Roller 2 -
Faceplate Width 18 -

FAQs

This range has a central latch and deadbolt with two roller locking points. Match the complete lock reference and locking-point layout to the existing installation.

Fit depends on the door preparation, faceplate, centre case and matching keeps. For a replacement on a timber or composite door, compare these with the existing hardware; the door material alone does not establish compatibility.

The range has a single-spindle layout, 70mm centres and a Euro-profile cylinder cut-out. Match the follower, spindle and cylinder dimensions to the supplied lock and door before reusing existing furniture.

Check door alignment and the position and condition of the keeps before fitting a replacement. Door or frame defects require separate attention.
