GU Lever Operated 2-Hook Latch & Deadbolt Multipoint Lock

£71.46

(£59.55 ex VAT)

sku: GU-0018
  • Central latch and deadbolt with two hook locking points
  • 28mm, 35mm and 45mm backset options
  • 92mm centres and single spindle layout
  • Euro profile cylinder case and 16mm faceplate
  • Lift the handle to engage the central deadbolt and hooks, then secure the mechanism with the key

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

These GU two-hook multipoint locks have a central latch and deadbolt, a single spindle layout and a 16mm faceplate. The range includes 28mm, 35mm and 45mm backsets, each with 92mm centres.

Lifting the handle engages the central deadbolt and hooks; the key then secures the mechanism. Match the exact reference, case and hook positions, fixings, keeps and furniture before replacement. The faceplate width alone does not establish fit to a door profile.

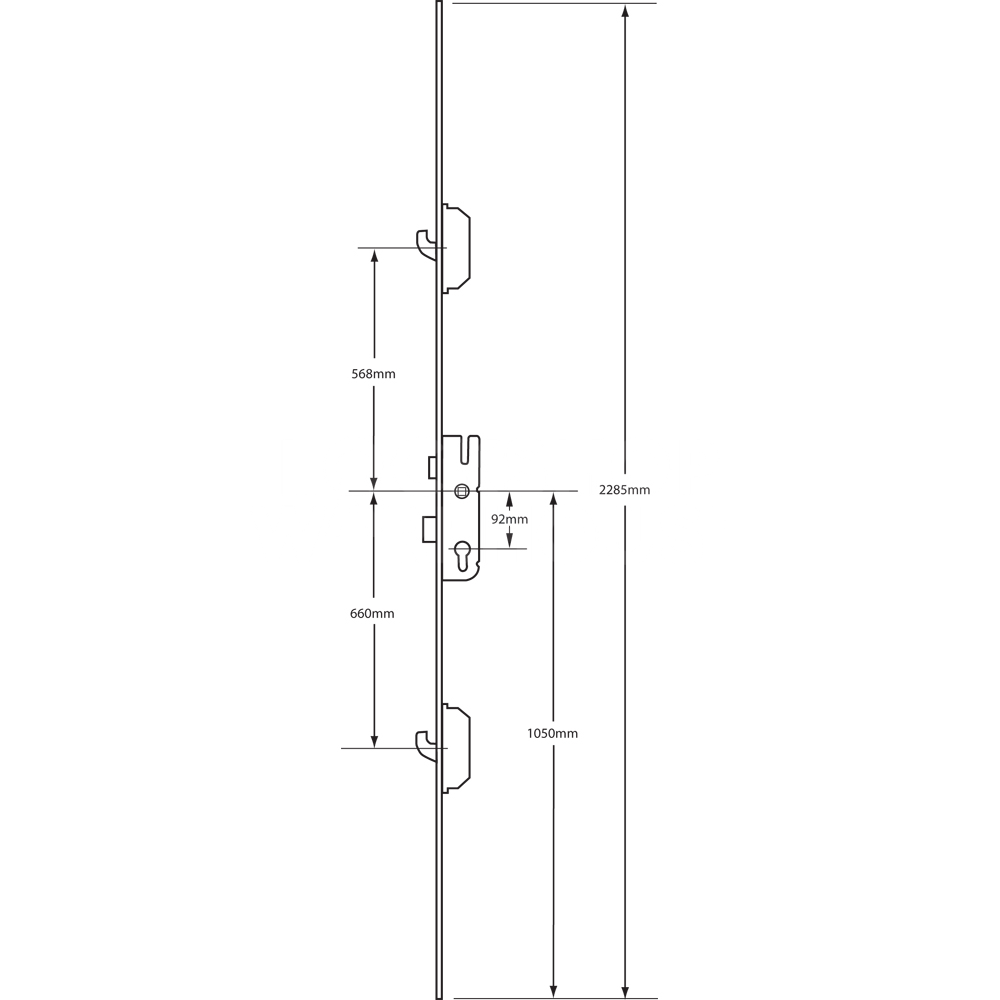

Dimensions Image: GU Lever Operated 2-Hook Latch & Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 28 45
Case Width 43 63
Case Height 195 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

Match the exact reference and required 28mm, 35mm or 45mm backset, together with the 92mm centres and 16mm faceplate. Check the case, hook positions, fixings, keeps and furniture as well; door material alone does not establish fit.

The mechanism has a central latch and deadbolt and two hook locking points. This describes the lock layout, not a security rating for the complete door.

Lift the handle to engage the central deadbolt and hooks, then use the key to secure the mechanism. This is a manual lever-operated, single spindle configuration.

The lock has a Euro profile cylinder case. The cylinder cam, fixing arrangement and length must match the lock, door thickness and furniture.
