GU Lever Operated Latch and 2 Deadbolt Multipoint Lock

£72.73

(£60.61 ex VAT)

sku: GU-0017
  • Lever-operated multipoint locking system for enhanced door security
  • Features a central latch and deadbolt with two additional locking deadbolts
  • Compatible with standard Euro profile cylinders
  • Designed for single spindle operation via a lever handle
  • Supplied with a 16mm wide faceplate to suit common door preparations
  • 92mm centres for compatibility with standard handle sets
  • Engineered for use on uPVC, timber, and composite door systems

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The GU Lever Operated Multipoint Lock is a high-security locking mechanism designed for residential entrance doors. This system provides multiple locking points across the edge of the door, featuring a central latch and deadbolt along with two additional deadbolts for increased resistance against forced entry.

Functioning via a single spindle mechanism, the lock is operated by lifting the lever handle to engage the security bolts and turning the key to lock the unit. It is designed to house a standard Euro profile cylinder, making it a versatile choice for modern security requirements. This unit is frequently used as a replacement part for existing GU systems or for new installations in timber and uPVC door profiles.

Technical configuration includes a 92mm centre measurement and a 16mm faceplate, ensuring compatibility with a wide range of standard door hardware and routing preparations.

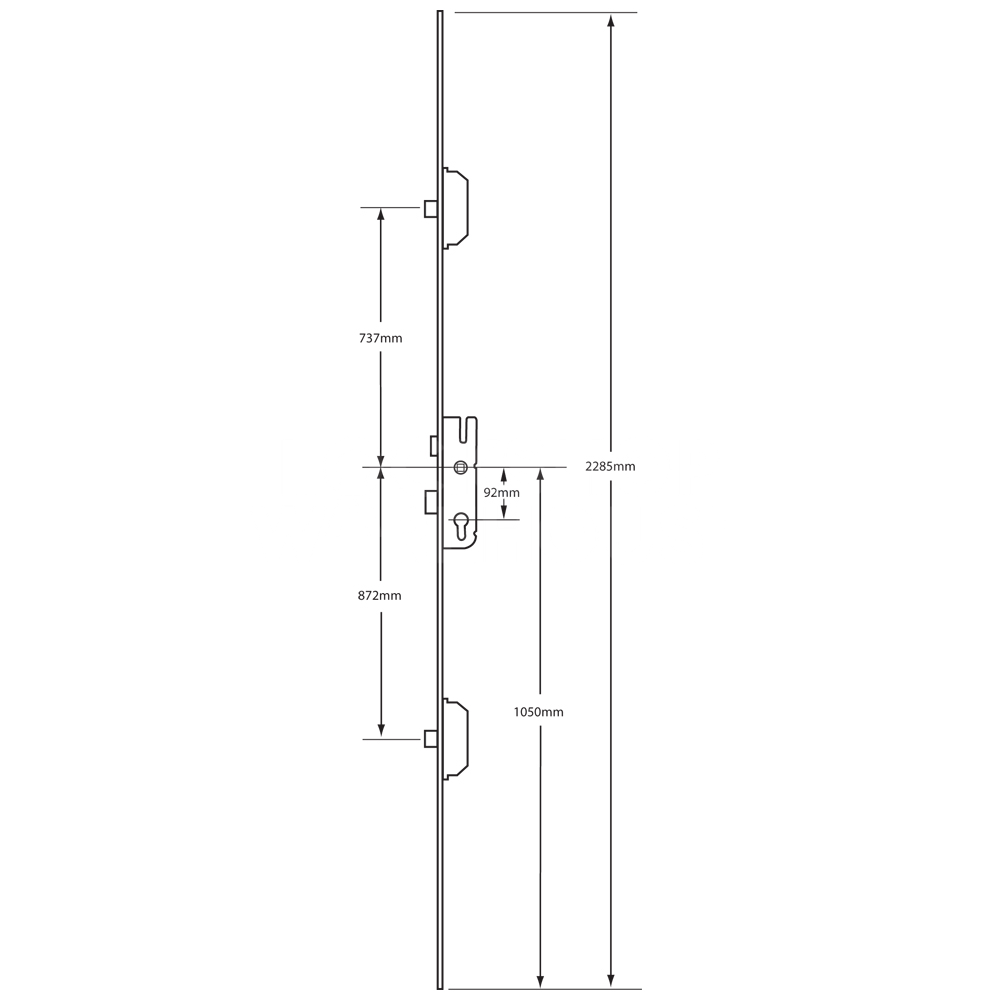

Dimensions Image: GU Lever Operated Latch and 2 Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 28 35
Case Width 43 50
Case Height 195 205
Locking Point Dead Bolt 2 -
Faceplate Width 16 -

FAQs

This lock uses a lever-operated mechanism. To secure the door, lift the handle upwards to engage the central and additional deadbolts. Once the bolts are engaged, turn the key in the Euro profile cylinder to lock the entire system in place.

The GU Lever Operated Multipoint Lock is engineered for versatility and is compatible with the following door types:

  • uPVC doors
  • Timber doors
  • Composite door systems

To ensure a proper fit, you should verify two main dimensions: this unit features a 16mm wide faceplate and 92mm centres (the distance between the centre of the handle spindle and the centre of the key cylinder). These are standard measurements for many common door preparations.

Yes, this multipoint lock is designed to work with standard Euro profile cylinders. If you are replacing an older GU lock of the same specification, you should be able to reuse your current cylinder and handle sets.
