GU Lever Operated Latch & Deadbolt Centre Case

£29.69

(£24.74 ex VAT)

sku: L25231
  • Centre gearbox only, without the long multipoint strip
  • Central latch and deadbolt with Euro profile cylinder case
  • Single spindle layout and 92mm centres
  • 28mm, 30mm, 35mm, 40mm, 45mm and 55mm backset options
  • Match the original case geometry, fixing positions and strip-drive connections

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This GU lever-operated centre-case range contains the central latch and deadbolt and is supplied without the long multipoint strip. All six backset options are retained: 28mm, 30mm, 35mm, 40mm, 45mm and 55mm, each with 92mm centres and a single spindle layout.

In a matching lever-operated assembly, lifting the handle engages the locking mechanism and the key secures it. A replacement case must also match the original fixings, drive connections and furniture; matching the backset and centres is not sufficient on its own.

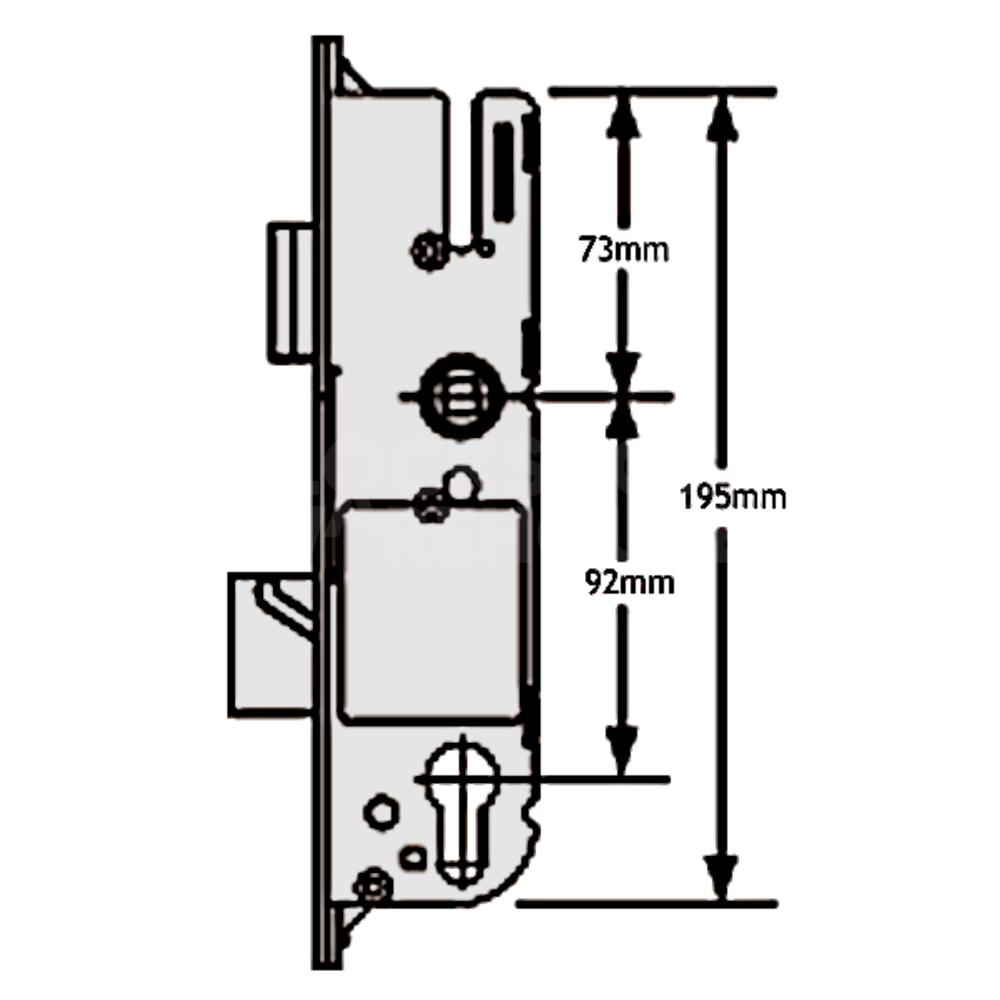

Dimensions Image: GU Lever Operated Latch & Deadbolt Centre Case
Part Min (mm) Max (mm)
centres 92 -
Backset 28 55
Case Width 45 70
Case Height 195 -

FAQs

Match the original centre-case reference, case dimensions, fixings and strip-drive connections. This range has 92mm centres and 28mm, 30mm, 35mm, 40mm, 45mm or 55mm backsets, but those measurements alone do not establish a fit.

The replacement latch orientation must match the existing door and lock assembly. Any handing adjustment must follow the instructions for the exact centre case, with the fixings and drive connections also checked.

No. This is the centre gearbox only. Reusing the existing strip requires a matching replacement case, compatible drive connections and serviceable remaining locking points.

Lifting the handle engages the locking mechanism and the key then secures it. The replacement case, strip-drive connections, handle and cylinder must match the existing lever-operated assembly.
