GU Lever Operated Latch & Deadbolt Gearbox - Split Spindle

£41.32

(£34.43 ex VAT)

sku: GU-0045
  • Cost-effective repair solution for multi-point lock failures
  • Available in 35mm or 45mm backset options
  • Standard 92mm centres for compatibility
  • Split spindle operation for enhanced security options
  • Easily reversible latch for left or right-handed doors
  • Durable latch and deadbolt construction
  • Euro profile cylinder compatible

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The GU Lever Operated Latch & Deadbolt Gearbox with Split Spindle is an ideal, cost-effective repair solution for common lock failures where the existing locking strip remains in working condition. This centre case features a 195mm case height and is available with either a 35mm or 45mm backset, both sharing standard 92mm centres.

Designed for versatility, it includes a reversible latch. To hand the lock, simply remove the screw, flip the latch to the opposite hand, and refit. The split spindle functionality allows for varied locking operations depending on your specific handle set.

Key Features:
  • Backset: 35mm or 45mm
  • Centres: 92mm
  • Case Height: 195mm
  • Operation: Lift lever to engage locking mechanisms, turn key to lock.
  • Handing: Reversible latch for easy installation.

This Euro profile lock case provides reliable security with a robust latch and deadbolt mechanism, ensuring your door remains secure and functional without requiring a full strip replacement.

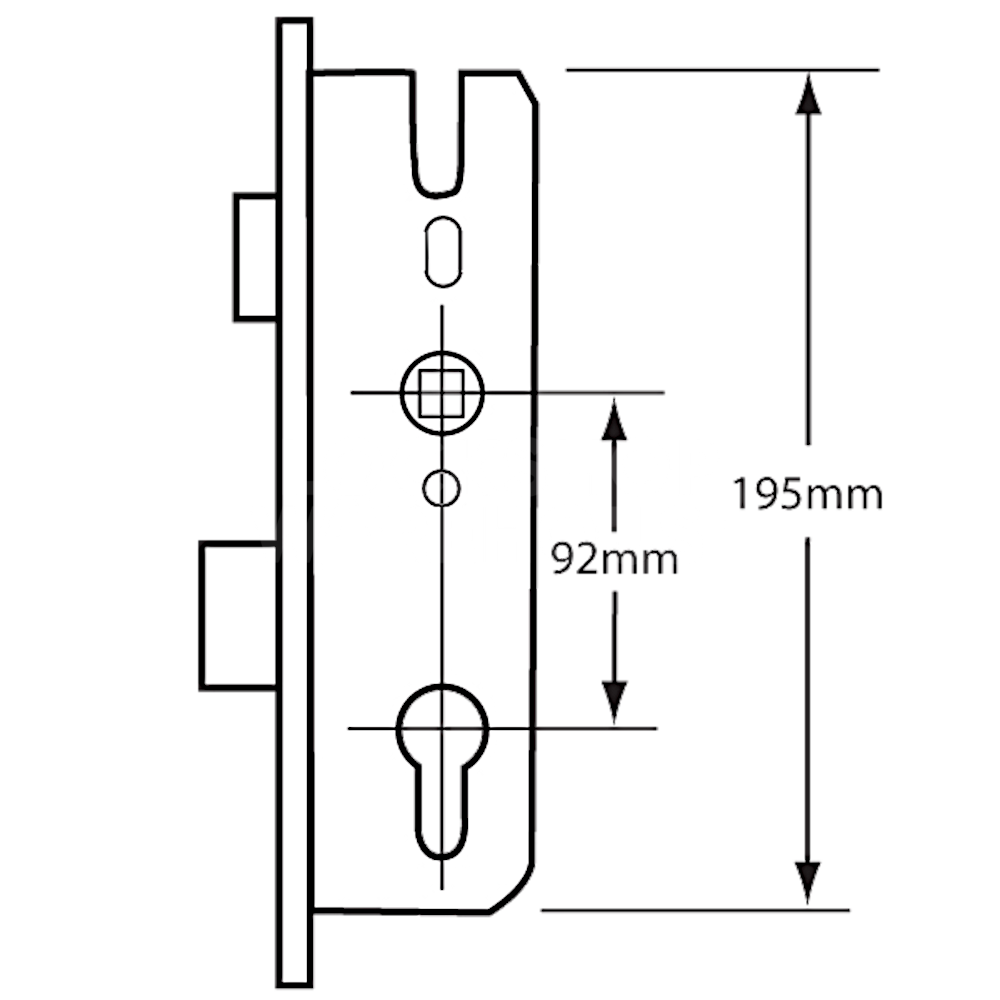

Dimensions Image: GU Lever Operated Latch & Deadbolt Gearbox - Split Spindle
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Case Width 53 63
Case Height 195 -

FAQs

No, this GU gearbox is designed as a cost-effective repair solution for common lock failures. If your existing multi-point locking strip is still in good condition, you can replace just the center gearbox rather than the entire full-length mechanism.

The latch on this gearbox is fully reversible. To change the handing, follow these steps:

  • Remove the screw holding the latch in place.
  • Pull the latch out and flip it to the opposite side.
  • Push the latch back in and refit the screw to secure it.

To ensure compatibility with your existing setup, you should verify three main measurements:

  • Backset: This gearbox comes in 35mm or 45mm options. Measure from the front of the lock faceplate to the center of the spindle hole.
  • Centres: This unit uses standard 92mm centres (the distance between the center of the spindle and the center of the cylinder's circular part).
  • Case Height: The total height of the gearbox shell is 195mm.

The split spindle functionality allows for versatile door operation. Depending on your handle set, it can be configured for standard lever-lever operation or a night-latch function where the external handle will not retract the latch without using a key, providing extra security for your property.
