skip to GU Lever Operated Multipoint Lock 2 Hook 2 Roller

GU Lever Operated Multipoint Lock 2 Hook 2 Roller

£107.81

(£89.84 ex VAT)

sku: 6-32610-01-0-1
  • Lever operated mechanism for integrated latch and deadbolt engagement
  • Features two short hooks to provide enhanced security against forced entry
  • Includes two outboard rollers to ensure consistent door compression and weather sealing
  • Designed for use with standard Euro profile cylinders
  • Single spindle operation compatible with common lever handle sets
  • Ideal for use as a replacement unit for existing GU locking systems
  • Suitable for both UPVC and composite door applications
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The GU Lever Operated Multipoint Lock is a robust security solution designed for external doors, commonly installed on UPVC and composite profiles. This mechanism features a central gearbox containing a latch and deadbolt, providing a primary point of security at the handle height.

To ensure full-length door security, the system is equipped with two short hooks and two outboard rollers. The hooks offer mechanical resistance against jimmying or lifting, while the outboard rollers serve a dual purpose: they guide the door into the correct position and compress it against the weather seals to eliminate draughts and improve thermal performance.

This lock is typically used as a replacement part for maintenance and repair of existing door sets. It operates via a single spindle, meaning lifting the handle engages all locking points simultaneously before a key turn secures the deadbolt. It is compatible with standard 16mm faceplate routings, making it a versatile choice for professional installers and maintenance contractors looking for reliable hardware.

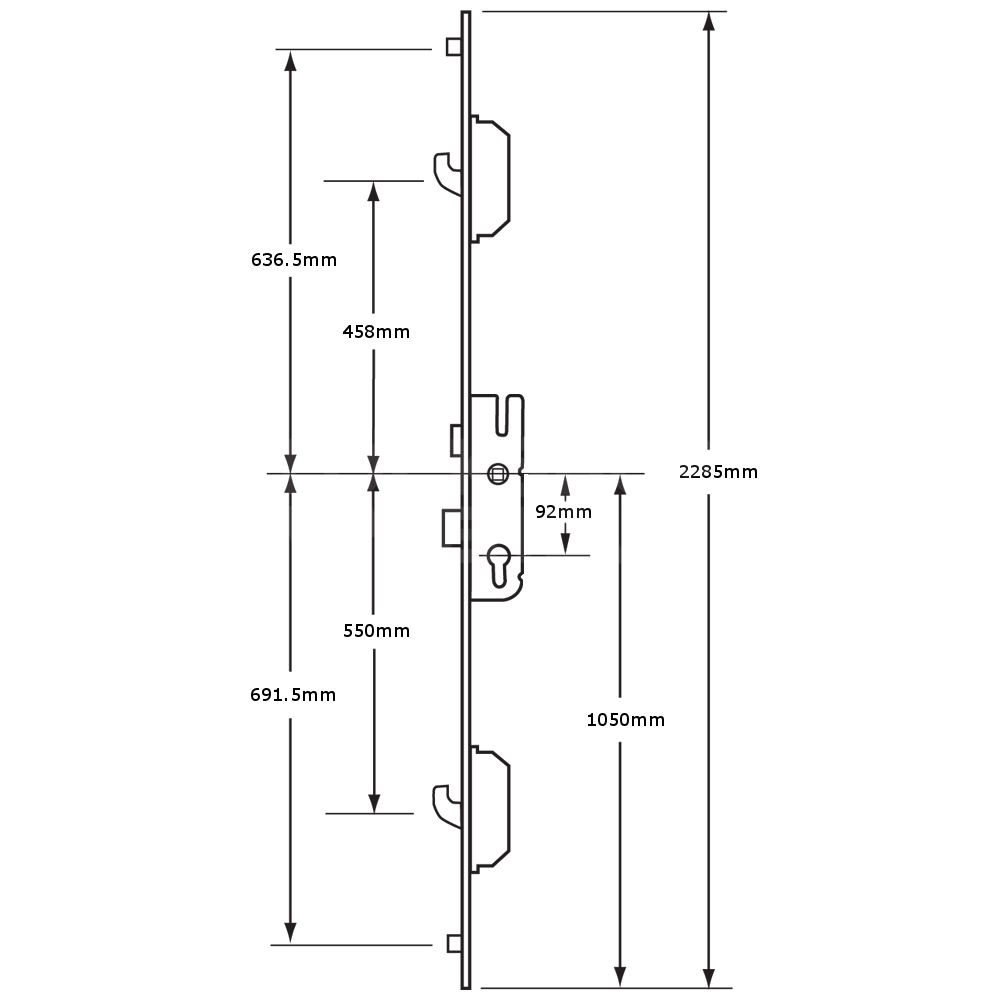

Dimensions Image: GU Lever Operated Multipoint Lock 2 Hook 2 Roller
Part Size (mm)
centres 92
Backset 35
Body Length 2285
Case Width 50
Case Height 195
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

This is a lever-operated system. To engage the two hooks and two rollers, lift the door handle upwards. Once these points are engaged, turn the key in the Euro profile cylinder to lock the central deadbolt and fully secure the door.

Yes, this unit is specifically designed as a replacement for existing GU locking systems. It is compatible with standard 16mm faceplate routings commonly found on UPVC and composite doors. It is recommended to verify your existing lock dimensions to ensure a direct match before installation.

This combination offers both security and insulation. The two short hooks provide mechanical resistance against forced entry and jimmying, while the two outboard rollers ensure the door is compressed tightly against the weather seals to eliminate draughts.

The lock is designed for use with a standard Euro profile cylinder. Because it features a single spindle operation, it is compatible with most standard lever handle sets used on UPVC and composite external doors.
