GU Lever Operated 2-Hook Latch & Deadbolt Multipoint Lock

£71.46

(£59.55 ex VAT)

sku: GU-0018
  • Lever operated mechanism with integrated latch and deadbolt
  • Features two hook locking points for enhanced security
  • Designed for use with standard Euro profile cylinders
  • Single spindle operation for straightforward handle compatibility
  • Fitted with a 16mm faceplate to suit common door preparations
  • Suitable for both uPVC and composite door systems
  • Ideal as a replacement unit for existing multipoint locking systems

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The GU Lever Operated Latch & Deadbolt Multipoint Lock is a high-security locking mechanism engineered for residential and commercial door applications. It features a central gearbox containing a latch and deadbolt, supplemented by two sturdy hooks that provide additional points of engagement to prevent forced entry.

This lock operates using a single spindle system, where lifting the lever handle engages the hooks and deadbolt, which are then secured by turning a Euro profile cylinder. This configuration is widely used across the industry for its reliability and ease of use.

Commonly found in uPVC and composite doors, this multipoint lock is an essential component for both new door builds and maintenance repairs. Its 16mm faceplate ensures compatibility with standard door profiles, making it a versatile choice for locksmiths and maintenance professionals looking to replace worn or damaged locking units.

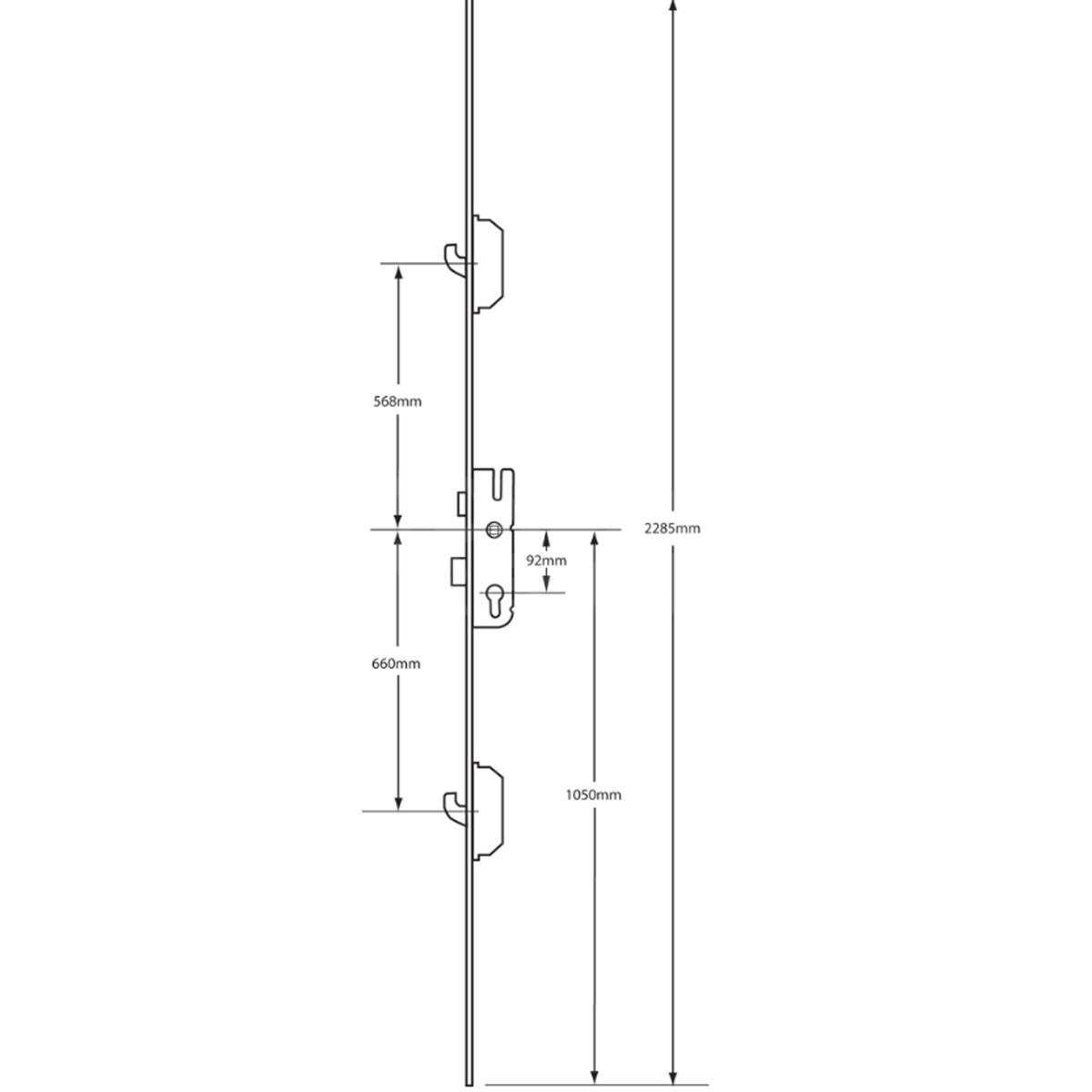

Dimensions Image: GU Lever Operated 2-Hook Latch & Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 28 45
Case Width 43 63
Case Height 195 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

Yes, this GU multipoint lock is specifically designed for use with both uPVC and composite door systems. It features a 16mm faceplate, which is a standard width for common door preparations, making it suitable for many existing door profiles.

This mechanism features a total of four locking points for enhanced security:

  • Two sturdy hook locking points.
  • One central latch.
  • One central deadbolt.

This is a lever-operated, single spindle lock. To engage the two hooks and the deadbolt, you simply lift the door handle upwards. Once they are engaged, you turn a Euro profile cylinder with a key to secure the door.

This multipoint lock is designed for use with a standard Euro profile cylinder. This configuration is widely used in the industry for its reliability and provides a straightforward way to secure your door after the hooks have been engaged by the lever.
