GU Lever Operated Latch & Deadbolt 4 Roller Multipoint Lock

£33.44

(£27.87 ex VAT)

sku: GU-0020
  • Lever operated mechanism for simultaneous latch and deadbolt engagement
  • Equipped with 4 roller cams for enhanced security and weather sealing
  • Compatible with standard Euro profile locking cylinders
  • Includes integrated attachment points for optional shootbolts
  • Standard 16mm faceplate design for broad door profile compatibility
  • Single spindle operation suitable for standard lever handle sets
  • Versatile system suitable for both new installations and direct replacements

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

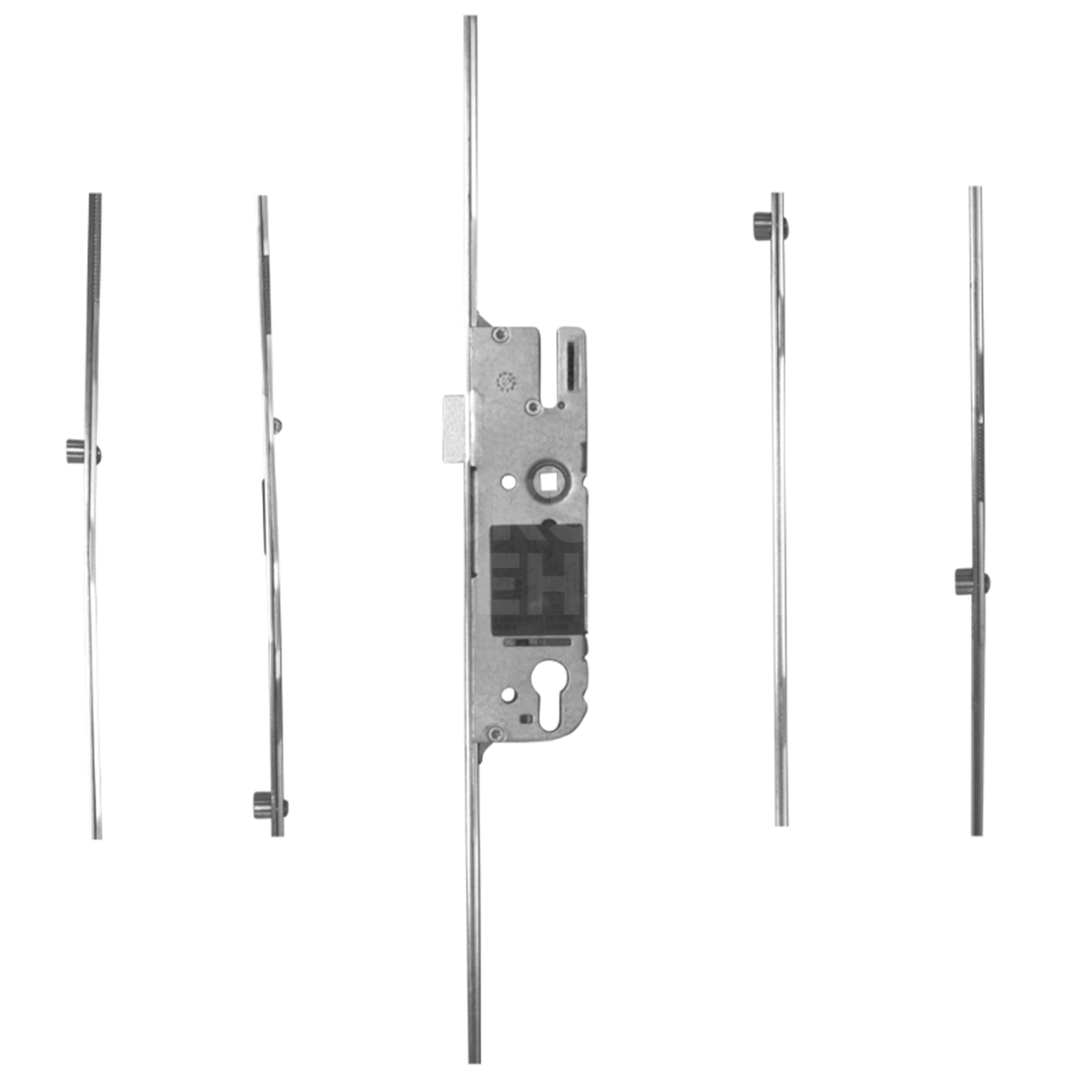

The GU Lever Operated Multipoint Lock is a robust security solution designed for residential and commercial door applications. This system features a central gear box containing a latch and deadbolt, which is operated by a standard single spindle lever handle set. To provide superior perimeter security and ensure a tight weather seal, the unit is fitted with four adjustable roller cams along the 16mm wide faceplate.

This lock is engineered for use with Euro profile cylinders and is designed to be compatible with various door materials including timber, uPVC, and composite systems. A significant technical advantage of this GU model is its ability to accept additional shootbolt attachments, allowing for extra locking points at the top and bottom of the door for maximum stability.

Typical applications include replacing worn or damaged multipoint systems or as a primary locking component in new door fabrications. The lever-lift action ensures that all locking points are engaged smoothly before the deadbolt is thrown via the key cylinder, providing a reliable and user-friendly operation.

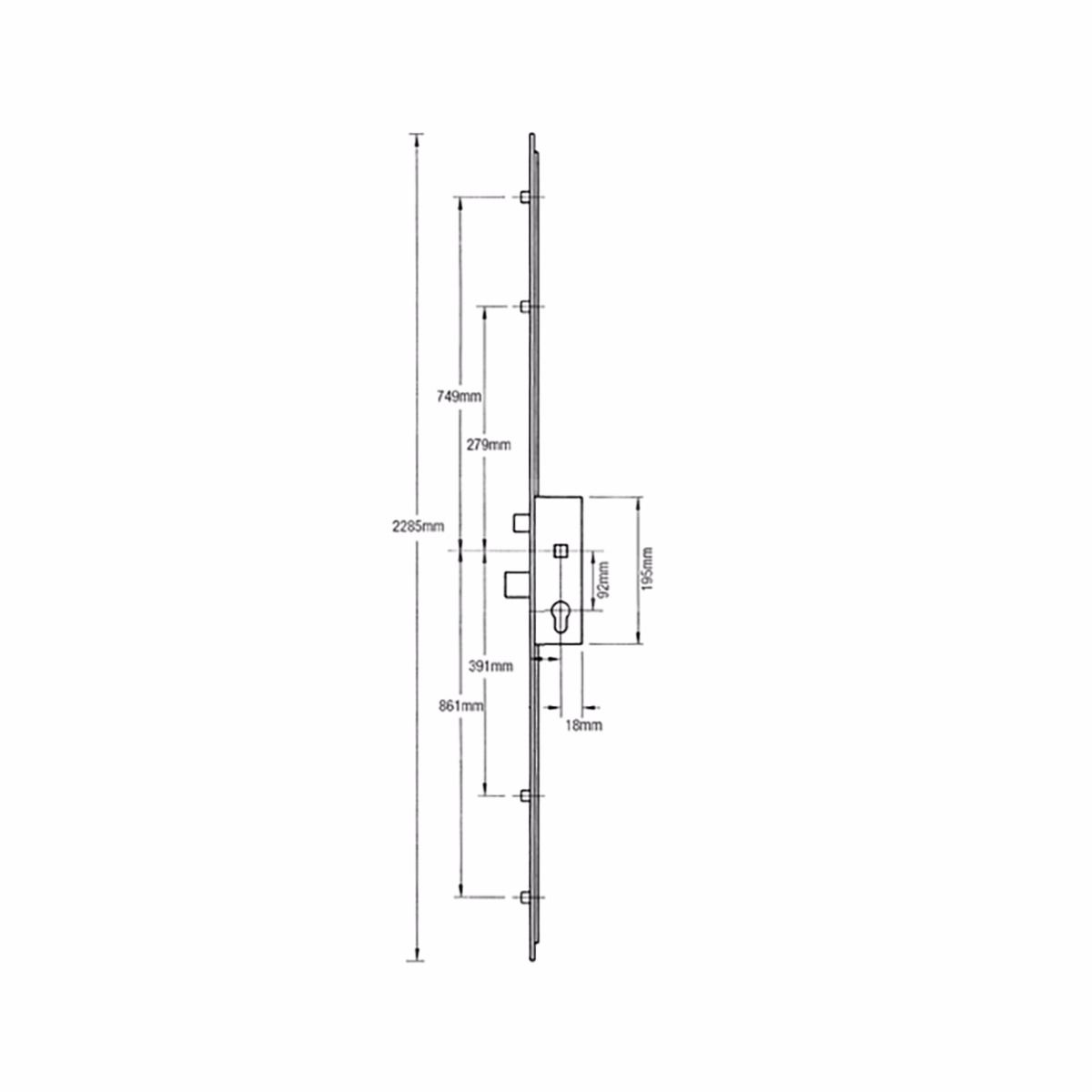

Dimensions Image: GU Lever Operated Latch & Deadbolt 4 Roller Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 28 55
Case Width 43 60
Case Height 195 200
Locking Point Roller 4 -
Faceplate Width 16 -

FAQs

This GU multipoint lock features a central latch and deadbolt, along with four adjustable roller cams. These additional points help pull the door tightly against the frame, which improves both security and weather sealing.

This lock is designed for single spindle operation, making it compatible with most standard lever handle sets. It uses a lever-lift action where you pull the handle upward to engage the rollers and deadbolt before locking with a key.

Yes, this mechanism is specifically engineered for use with standard Euro profile locking cylinders. If you are replacing an existing lock, you can often reuse your current cylinder.

Yes. This model includes integrated attachment points designed to accept optional shootbolts. This allows you to add extra locking points at the very top and bottom of the door for enhanced stability and security.
