GU Secury Auto A2 1770 Multipoint Lock

£177.07

(£147.56 ex VAT)

sku: 6-36037-44-0-1
  • GU Secury Auto A2 configuration with two auxiliary deadlocks
  • 45mm backset and 92mm centres
  • Single-spindle Euro profile centre case
  • 20mm radius-ended faceplate, 1770mm long
  • Match the exact lock reference, case, locking-point positions and keeps before replacement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The GU Secury Auto A2, reference 6-36037-44-0-1, combines a latch and deadbolt centre case with two auxiliary deadlocks. This version has a 45mm backset, 92mm centres and a 20mm radius-ended faceplate measuring 1770mm.

Shared centres or a GU range name do not establish interchangeability. The case, fixing positions and keeps must match the door preparation. Powered access requires a matched lock, motor and control installation.

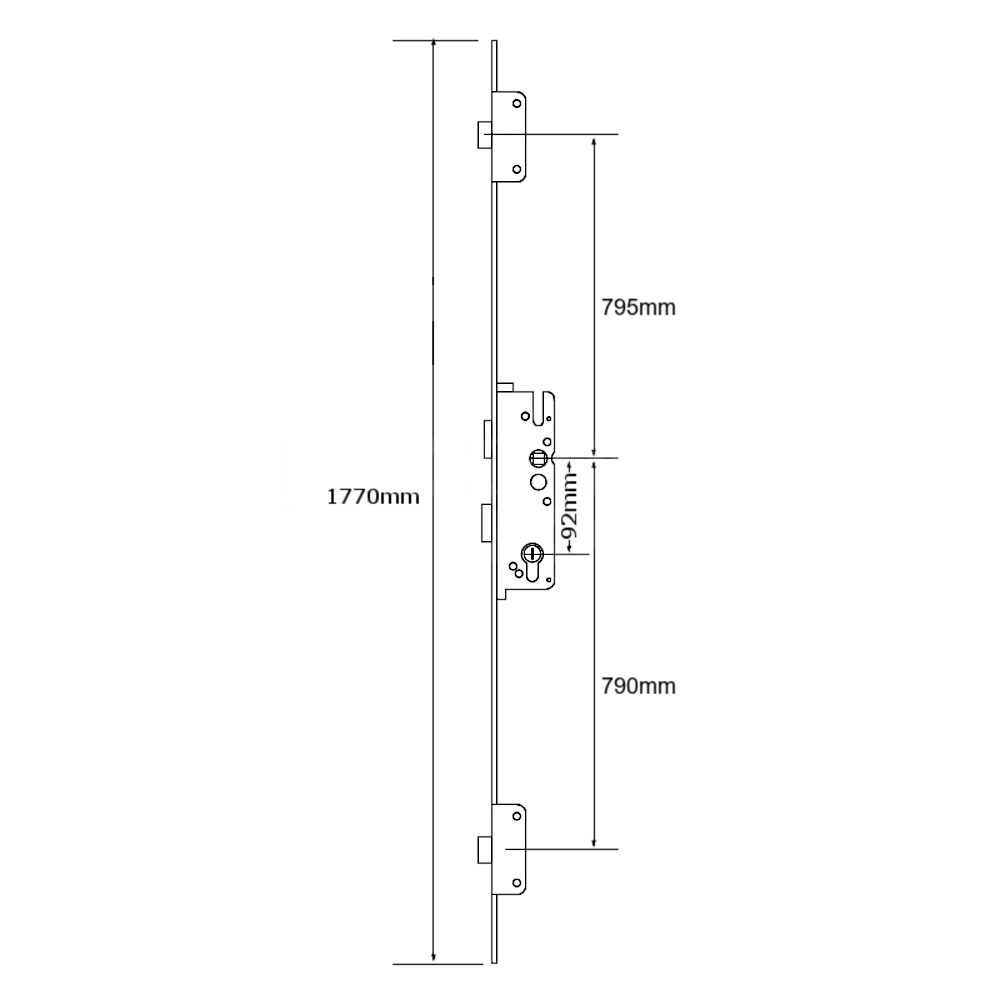

Dimensions Image: GU Secury Auto A2 1770 Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Body Height 1612
Case Width 50
Case Height 195
Locking Point Dead Bolt 2
Faceplate Width 20
