GU Secury Auto A3 Multipoint Lock with 3 Deadlocks

£182.60

(£152.17 ex VAT)

sku: GU-0059
  • GU Secury Auto A3 configuration with three auxiliary deadlocks
  • 35mm backset: reference 6-37298-21-0-1
  • 45mm backset: reference 6-37298-20-0-1
  • 92mm centres and a single-spindle Euro profile centre case
  • 20mm radius-ended faceplate, 1770mm long
  • Each reference has its own case and locking-point geometry

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The GU Secury Auto A3 range offered here has a latch and deadbolt centre case with three auxiliary deadlocks. The 35mm backset version is 6-37298-21-0-1; the 45mm version is 6-37298-20-0-1. Both have 92mm centres and a 20mm radius-ended faceplate measuring 1770mm.

Match the drawing, case, fixing positions and keeps for the exact reference. Shared centres and faceplate length do not make the two cases interchangeable. Powered access requires a matched lock, motor and control installation.

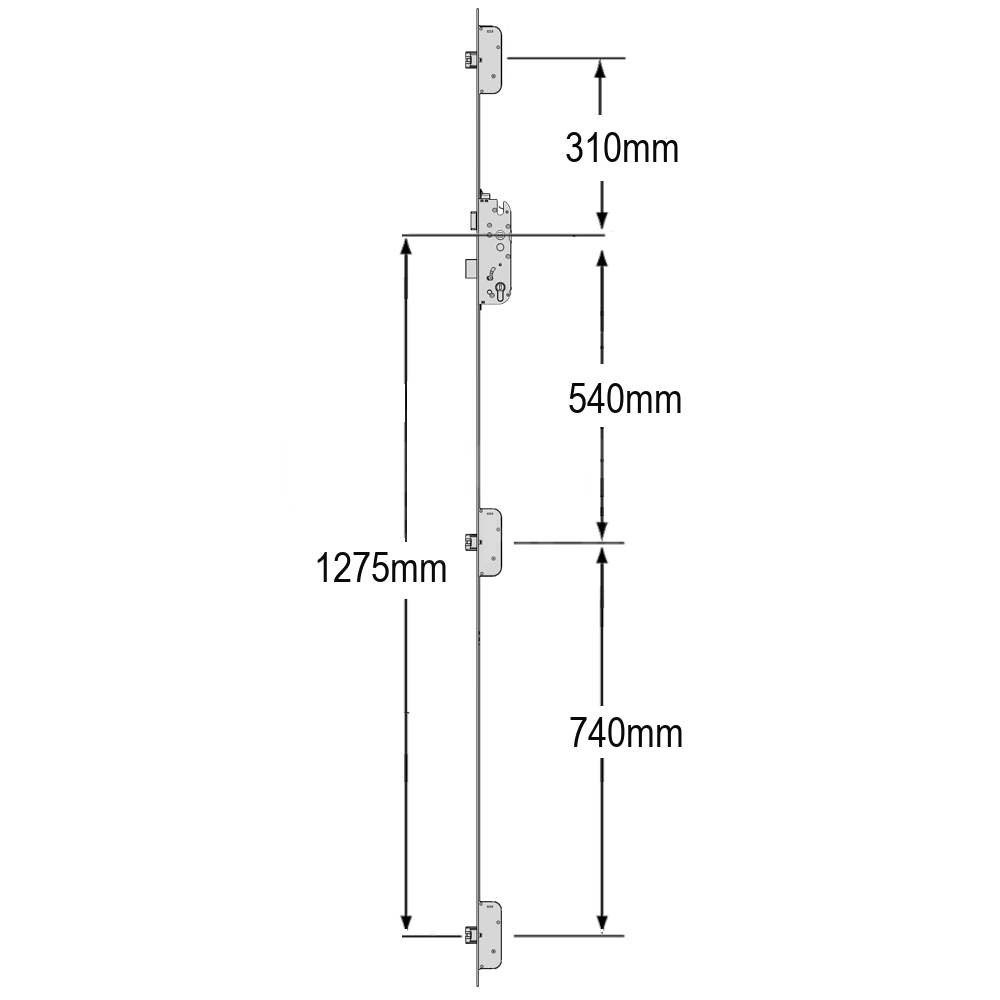

Dimensions Image: GU Secury Auto A3 Multipoint Lock with 3 Deadlocks
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Height 1612 -
Case Width 50 63
Case Height 195 -
Locking Point Dead Bolt 3 -
Faceplate Width 20 -
