GU Secury Automatic TENF Multipoint Door Lock

£223.48

(£186.23 ex VAT)

sku: 6-37423-45-0-1
  • Two automatic auxiliary locking bolts
  • Separately key-operated central main-case deadbolt
  • 45mm backset, 92mm PZ centres and 20mm faceplate
  • Daytime release requires the matching separately supplied central latch release
  • Any motor conversion needs exact-revision compatibility checks
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The GU Secury Automatic TENF 6-37423-45-0-1 has two automatically engaging auxiliary bolts and a separately key-operated central main-case deadbolt. The retained specification is 45mm backset, 92mm PZ centres and a 20mm faceplate.

The TENF daytime-release arrangement requires a separately supplied matching spring-loaded central latch release. Auxiliary-bolt retention alone does not provide unrestricted passage while the central latch is still engaged. Specify the correct release, spring strength, strike and profile arrangement before using the mode.

Any motor conversion needs a manufacturer-approved motor/interface for this exact TENF revision, the matching wiring and power equipment, and an appropriate installation plan. The GU brand or a Universal Motor name alone does not establish compatibility with every old lock or current panic/electrical generation.

Replacement fit: compare the exact supplied reference and generation, backset, PZ centres, follower/spindle arrangement, faceplate profile, case routing, fixings, locking-point positions and frame keeps. Shared GU branding or 92mm centres alone are not a direct-fit guarantee. Spindle and cylinder selection must also match the furniture, door thickness and required outside operation.

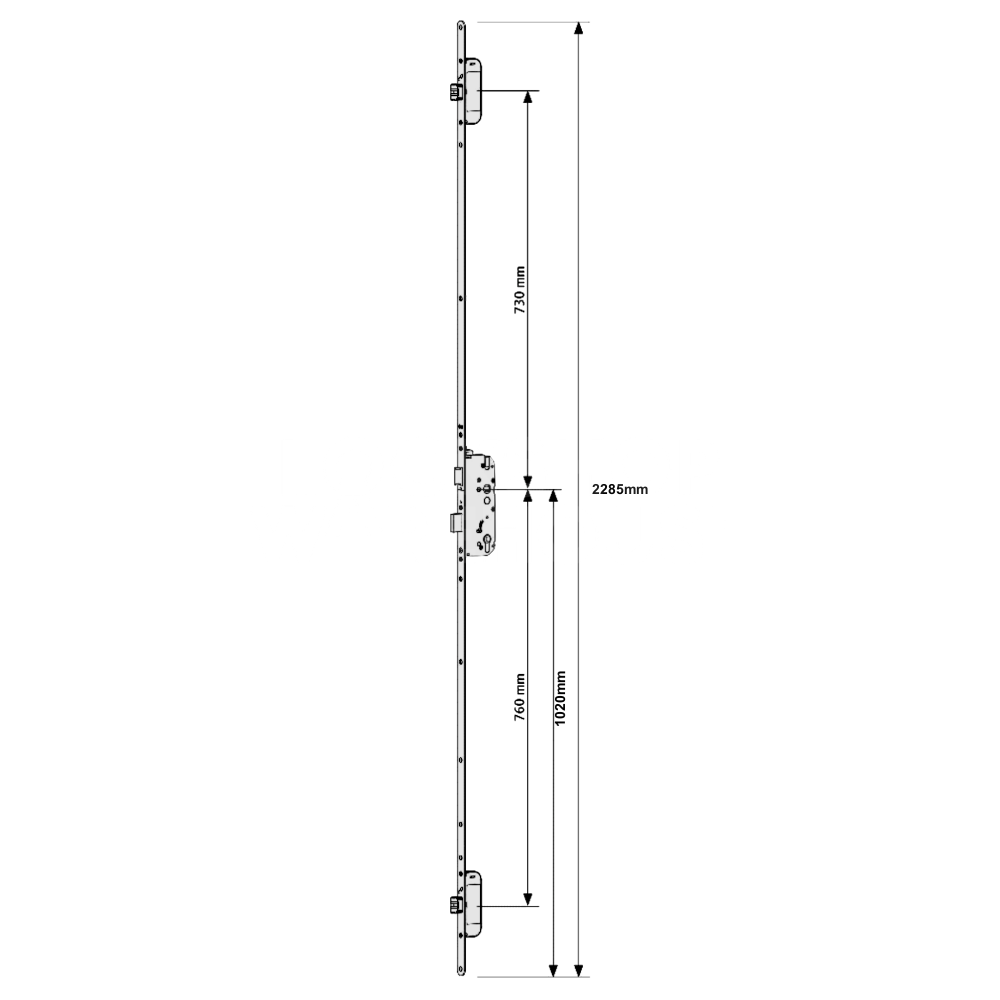

Dimensions Image: GU Secury Automatic TENF Multipoint Door Lock
Part Size (mm)
centres 92
Backset 45
Body Length 2285
Case Height 185
Case Depth 63
Locking Point Dead Bolt 2
Faceplate Width 20

FAQs

The two auxiliary bolts engage automatically when the door closes. The central main-case deadbolt is separately key-operated. Automatic auxiliary engagement and full key-secured locking are different states; daytime mode also needs the matching central latch release.

The TENF daytime-release arrangement requires a separately supplied matching spring-loaded central latch release. Auxiliary-bolt retention alone does not provide unrestricted passage while the central latch is still engaged. Specify the correct release, spring strength, strike and profile arrangement before using the mode.

Replacement fit: compare the exact supplied reference and generation, backset, PZ centres, follower/spindle arrangement, faceplate profile, case routing, fixings, locking-point positions and frame keeps. Shared GU branding or 92mm centres alone are not a direct-fit guarantee. Spindle and cylinder selection must also match the furniture, door thickness and required outside operation.

Any motor conversion needs a manufacturer-approved motor/interface for this exact TENF revision, the matching wiring and power equipment, and an appropriate installation plan. The GU brand or a Universal Motor name alone does not establish compatibility with every old lock or current panic/electrical generation.
