GU Secury Europa Lever Operated Latch & Deadbolt 2 Roller

£48.32

(£40.27 ex VAT)

sku: GU-0028
  • Central latch and deadbolt with two roller locking points
  • Provision for compatible shootbolt extensions; extensions are separate from this lock
  • 28mm and 35mm backset options with 92mm centres
  • Single spindle layout, Euro profile cylinder case and 16mm faceplate
  • Lift the handle to engage the locking mechanism, then secure it with the key

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

These GU Secury Europa locks have a central latch and deadbolt with two rollers. The range has 28mm and 35mm backset options, 92mm centres, a single spindle layout and a 16mm faceplate.

The attachment provision is for matching shootbolt extensions; it does not mean that top and bottom shootbolts are supplied. Match the original lock, extension connections, keeps and furniture before replacement or extension. Lifting the handle engages the locking mechanism, which is then secured with the key.

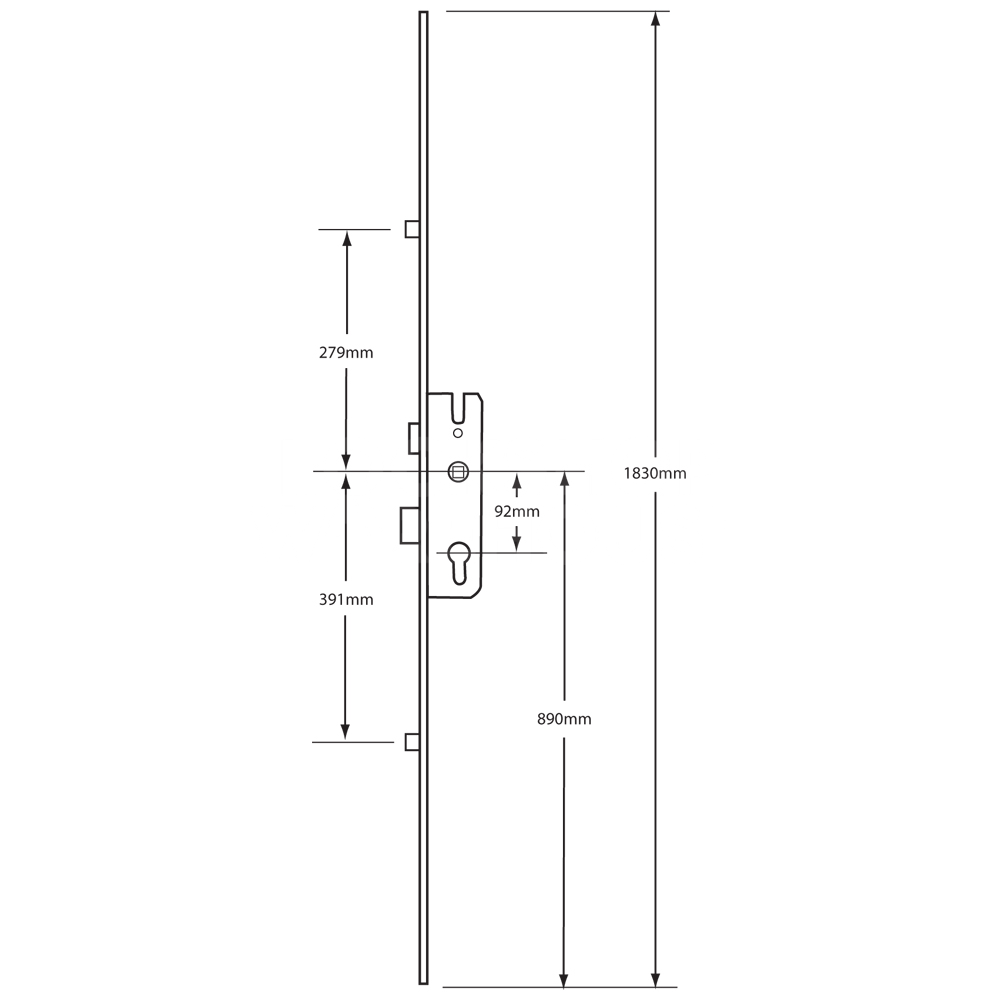

Dimensions Image: GU Secury Europa Lever Operated Latch & Deadbolt 2 Roller
Part Min (mm) Max (mm)
centres 92 -
Backset 28 35
Case Width 43 50
Case Height 195 202
Locking Point Roller 2 -
Faceplate Width 16 -

FAQs

Lift the handle to engage the locking mechanism, then use the key to secure it. The centre case contains a latch and deadbolt, with two rollers along the strip.

The lock has 92mm centres and a single spindle layout. Also match the follower, spindle length, handle fixing positions and clearances to the existing lock and door furniture.

This lock has a central latch and deadbolt with two roller locking points. It also has attachment provision for matching shootbolt extensions; this does not mean that top and bottom shootbolts are supplied.

The lock has provision for compatible shootbolt extensions. Any extension must match the lock connections, door preparation and keeps; the available door-height range depends on the specified extension arrangement.
