GU Secury Europa Lever Operated Latch & Deadbolt

£61.32

(£51.10 ex VAT)

sku: GU-0024
  • Central latch and deadbolt, two rollers and two mushroom locking points
  • 28mm and 35mm backset options
  • 92mm centres and single spindle layout
  • Euro profile cylinder case and 16mm faceplate
  • Lift the handle to engage the locking mechanism, then secure it with the key

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This GU Secury Europa range combines a central latch and deadbolt with two rollers and two mushroom locking points. The available backsets are 28mm and 35mm; both configurations have 92mm centres, a single spindle layout and a 16mm faceplate.

The locking mechanism is engaged by lifting the handle and then secured with the key. Match the case, point positions, keeps, fixings and door furniture to the original assembly before replacement.

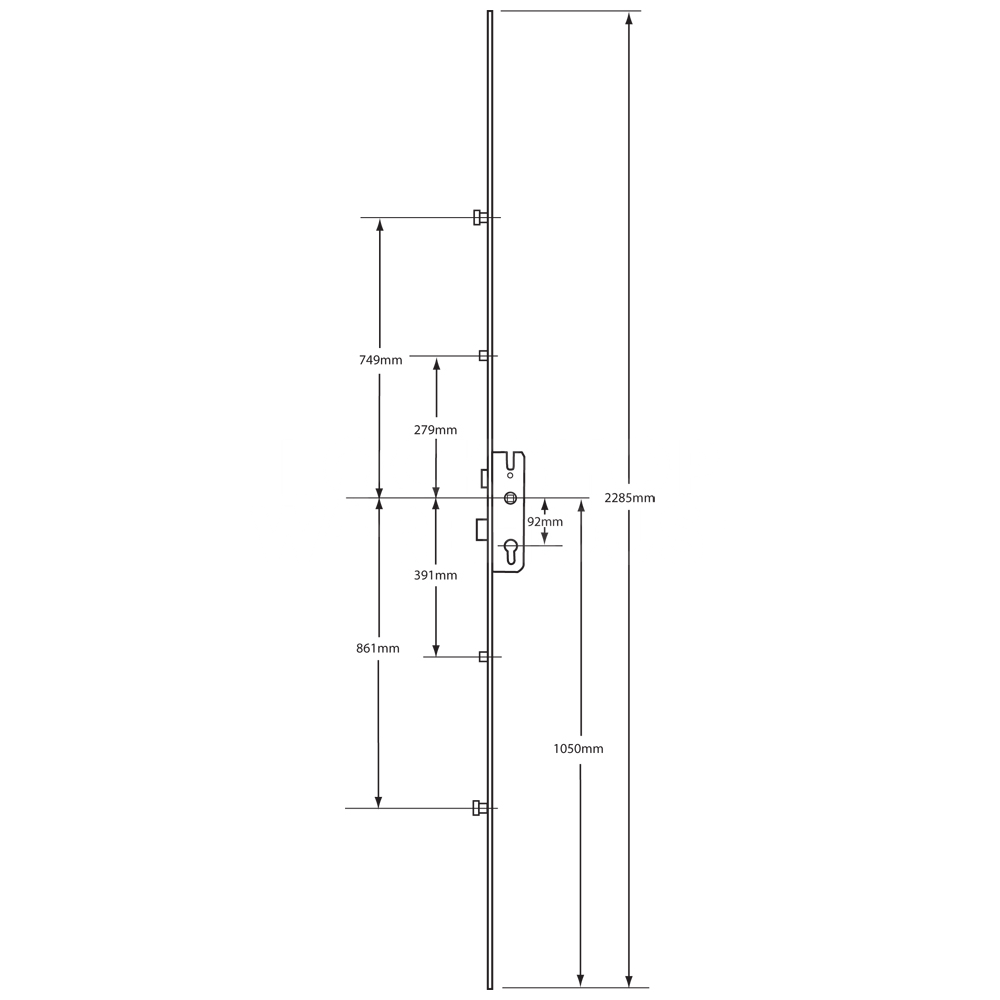

Dimensions Image: GU Secury Europa Lever Operated Latch & Deadbolt
Part Min (mm) Max (mm)
centres 92 -
Backset 28 35
Case Width 43 50
Case Height 195 202
Locking Point Mushroom 2 -
Locking Point Roller 2 -
Faceplate Width 16 -

FAQs

It has a central latch and deadbolt, two rollers and two mushroom locking points. These are the components of the mechanism, rather than a performance rating for the complete door.

The range has 92mm centres, a single spindle layout and a Euro profile cylinder case. The follower, spindle length, handle fixings, cylinder cam and cylinder length must also match the lock and door furniture.

Lift the handle to engage the locking mechanism, then use the key to secure it. This is a manual lever-operated Secury Europa configuration.

No. Weather sealing depends on the complete door assembly, including the leaf, frame, seals, keeps and alignment. The presence of rollers does not establish weatherproofing on its own.
