GU Secury Europa Multi Point Lock 2 Hook 2 Roller

£100.50

(£83.75 ex VAT)

sku: 6-32602-01-0-1
  • Central latch and deadbolt with two short hooks and two outboard rollers
  • 35mm backset and 92mm centres
  • 8mm single spindle layout and Euro profile cylinder case
  • 16mm faceplate
  • Lift the handle to engage the locking mechanism, then secure it with the key
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The GU Secury Europa 6-32602-01-0-1 has a central latch and deadbolt, two short hooks and two outboard rollers. It has a 35mm backset, 92mm centres, an 8mm single spindle layout and a 16mm faceplate.

Lifting the handle engages the locking mechanism and the key secures it. A replacement must match the exact reference, case, hook and roller positions, fixings, keeps and furniture; another GU two-hook/two-roller lock is not automatically equivalent.

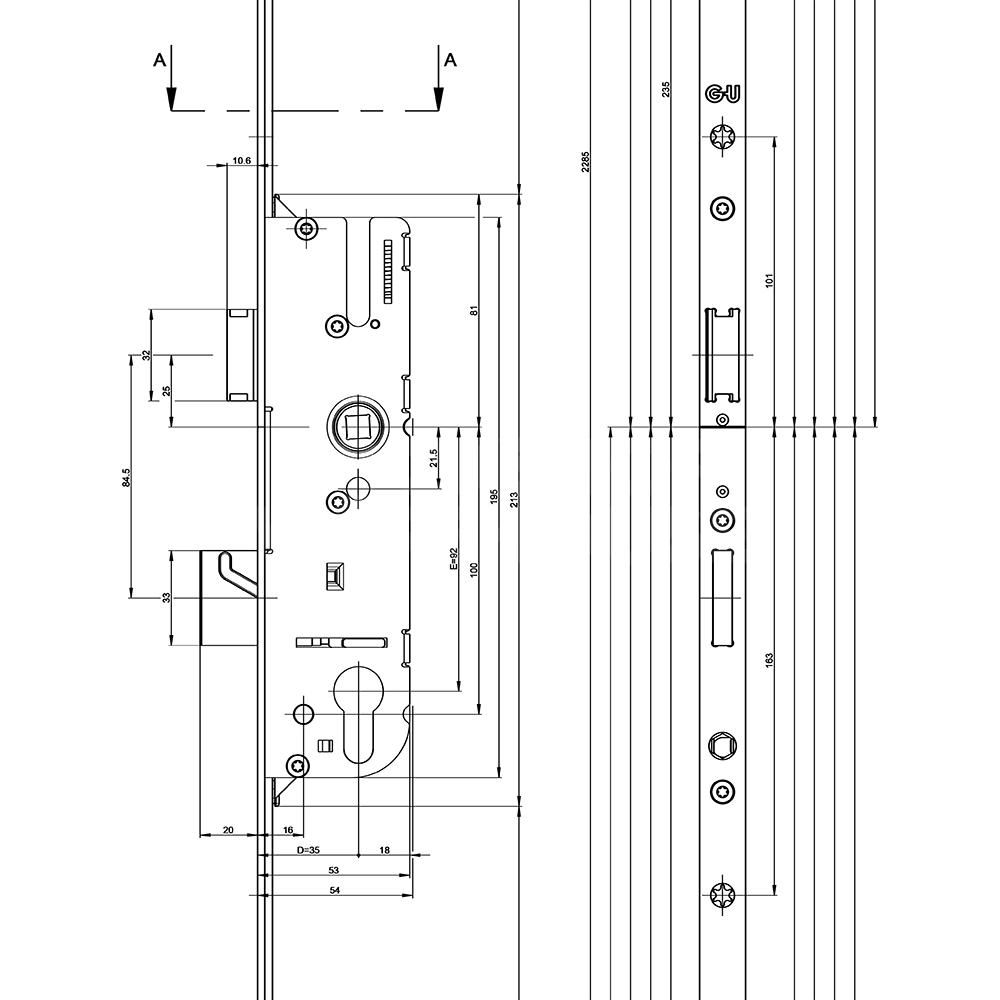

Dimensions Image: GU Secury Europa Multi Point Lock 2 Hook 2 Roller
Part Size (mm)
centres 92
Backset 35
Body Length 2285
Case Width 50
Case Height 195
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

Lift the handle to engage the locking mechanism, then use the key to secure it. This is the manual lever-operated 6-32602-01-0-1 configuration.

The centre case contains a latch and deadbolt, with two short hooks and two outboard rollers along the strip. This is the mechanism layout, not a security or weather rating.

Match the exact reference, 35mm backset, 92mm centres and 16mm faceplate, as well as the case, hook and roller positions, fixings, keeps and furniture. Door material alone does not establish fit.

This configuration has an 8mm single spindle layout, 92mm centres and a Euro profile cylinder case. Also match the handle fixings, spindle length, cylinder cam and cylinder length to the lock and door preparation.
