GU Secury Europa Multipoint Door Lock

£55.45

(£46.21 ex VAT)

sku: 6-32688-0101
  • Central latch and deadbolt with two rollers
  • Attached bottom shootbolt
  • 35mm backset and 92mm centres
  • Euro profile cylinder case and 16mm faceplate
  • Match the existing lock, bottom-shootbolt keep and handle/spindle configuration
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

This GU Secury Europa configuration has a central latch and deadbolt, two rollers and an attached bottom shootbolt. It has a 35mm backset, 92mm centres and a 16mm faceplate.

The bottom shootbolt needs a matching keep and sill preparation. Compare the exact lock reference, case and locking-point positions, fixings and handle/spindle arrangement before replacement.

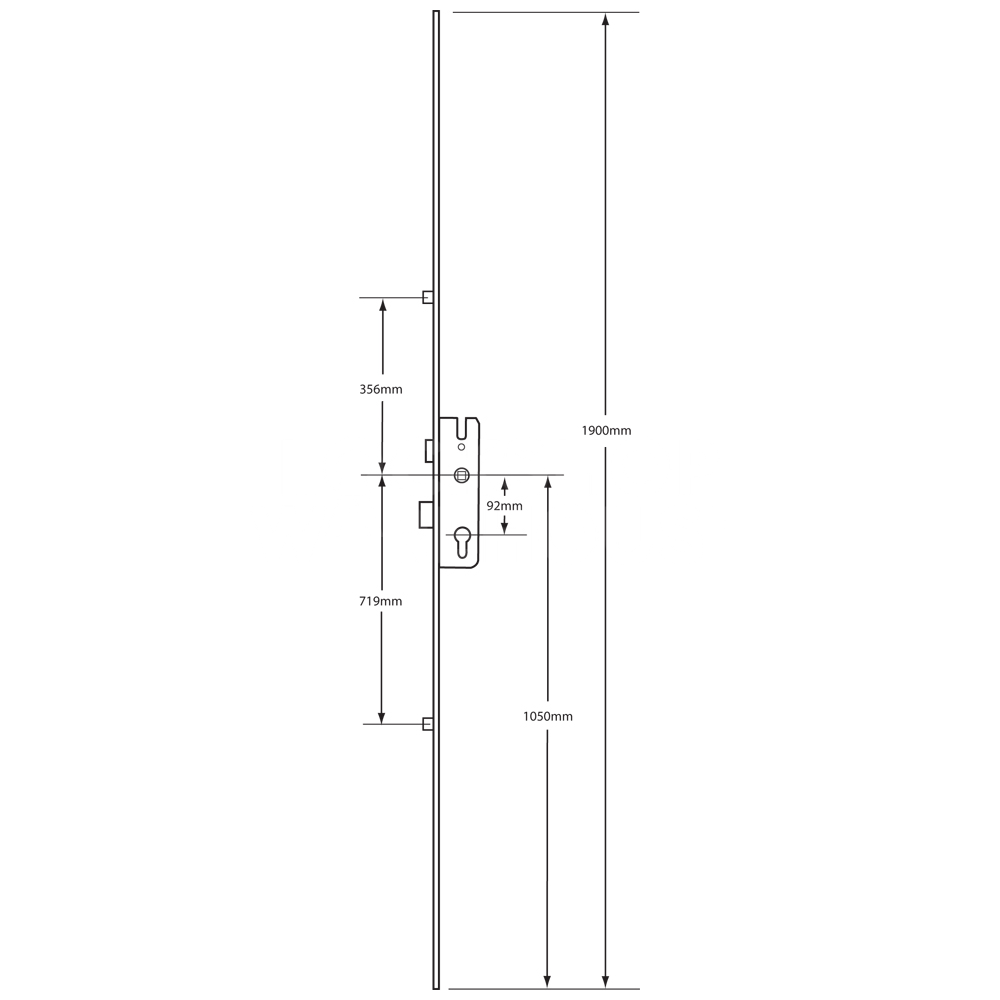

Dimensions Image: GU Secury Europa Multipoint Door Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 195
Locking Point Roller 2
Faceplate Width 16

FAQs

This lock has 92mm centres. The follower, spindle arrangement, spindle length and handle fixing positions must also match the existing assembly; centres alone do not establish compatibility.

The lock has a central latch and deadbolt, two rollers and an attached bottom shootbolt. Match the complete shootbolt arrangement and its keeps to the exact existing lock before replacement.

Compare the exact reference, 35mm backset, 92mm centres and 16mm faceplate, then check the case and locking-point positions, fixings, furniture and bottom-shootbolt keep and sill preparation.

No. Weather sealing depends on the complete door, frame, seals, keeps and alignment. The two rollers and bottom shootbolt describe the locking layout, not a weather rating.
