GU Secury Europa Split Spindle Multipoint Lock

£84.64

(£70.53 ex VAT)

sku: 6-32772-0101
  • Lever-operated mechanism with split spindle for optional nightlatch functionality
  • Two roller cams provide adjustable compression for enhanced weather sealing
  • Two mushroom bolts offer high resistance against forced entry and jemmying
  • Central latch and deadbolt for secure primary door closure
  • Compatible with standard 92mm centre lever handle sets
  • Reversible latch to suit both left and right-handed door applications
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The GU Secury Europa is a professional-grade multipoint locking system designed for external doors. It features a lever-operated mechanism with a split spindle, providing the flexibility to operate as a standard passage lock or a nightlatch. In nightlatch mode, the external handle will not retract the latch, requiring a key for entry from the outside.

This locking system utilises a combination of roller cams and mushroom bolts to provide comprehensive door security. The rollers are designed to pull the door leaf tight against the frame, improving thermal efficiency and weatherproofing. The mushroom bolts provide a mechanical interlock with the door keeps, significantly increasing the door's resistance to physical attack and forced separation. It is frequently used as a direct replacement for existing GU mechanisms in domestic and commercial UPVC door sets.

  • Standard 92mm centres for compatibility with a wide range of door furniture
  • Includes both latch and deadbolt for dual-stage security
  • Robust construction suitable for high-traffic external doors
  • Suitable for repair, maintenance, and new-build applications

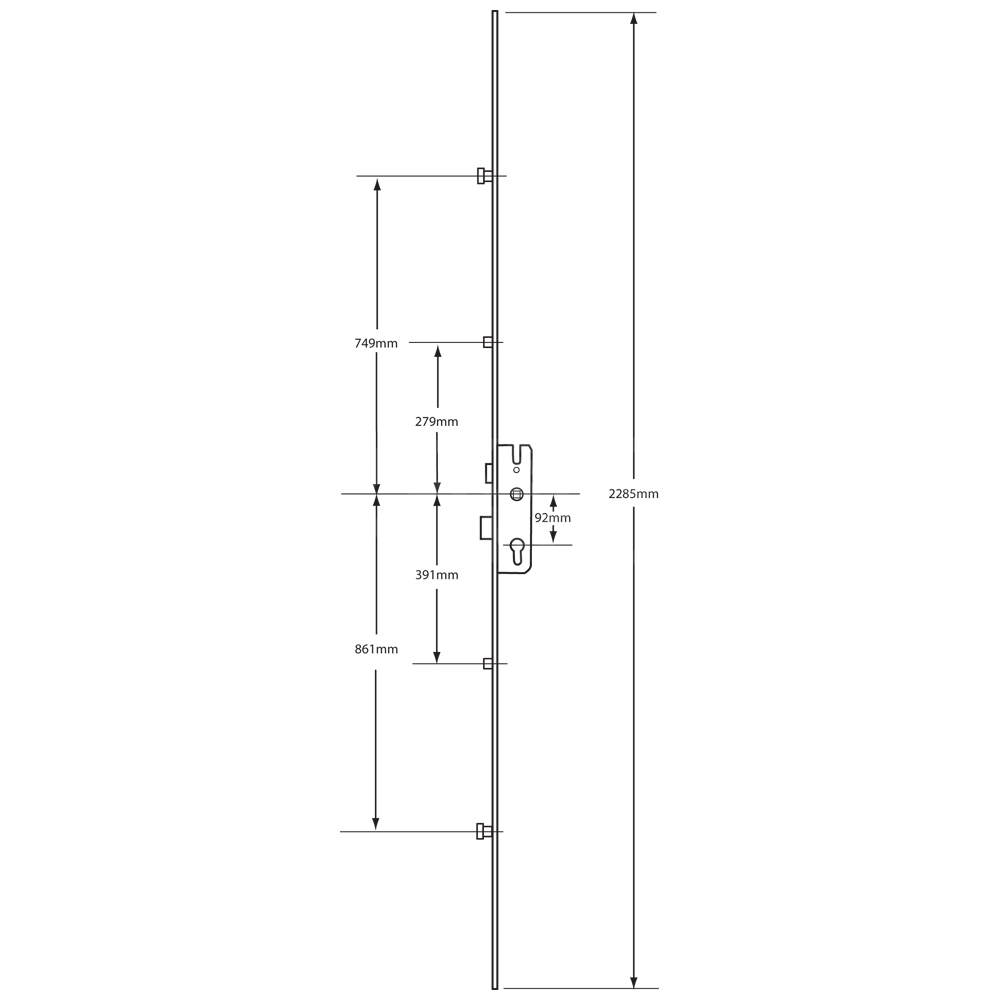

Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 195
Locking Point Mushroom 2
Locking Point Roller 2
Faceplate Width 16
