GU Secury LogIQ A2 Automatic Multipoint Lock

£59.14

(£49.28 ex VAT)

sku: L-10012-01-0-1A
  • GU Secury LogIQ A2 configuration with two auxiliary deadlocks
  • Reference L-10012-01-0-1A
  • 45mm backset and 92mm centres
  • Single-spindle Euro profile centre case
  • 20mm radius-ended faceplate, 1770mm long
  • Match the lock reference and keeps to the door preparation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

BS EN 6375
Latch & Deadbolt

The GU Secury LogIQ A2, reference L-10012-01-0-1A, has a latch and deadbolt centre case with two auxiliary deadlocks. This version is listed with a 45mm backset, 92mm centres and a 20mm radius-ended faceplate measuring 1770mm.

The exact lock reference, case, locking-point positions and keeps must match the installation. Powered access requires a matched motor and control assembly; it is not established by the A2 or LogIQ name alone. Any security or weather-performance requirement must be checked against the complete doorset specification.

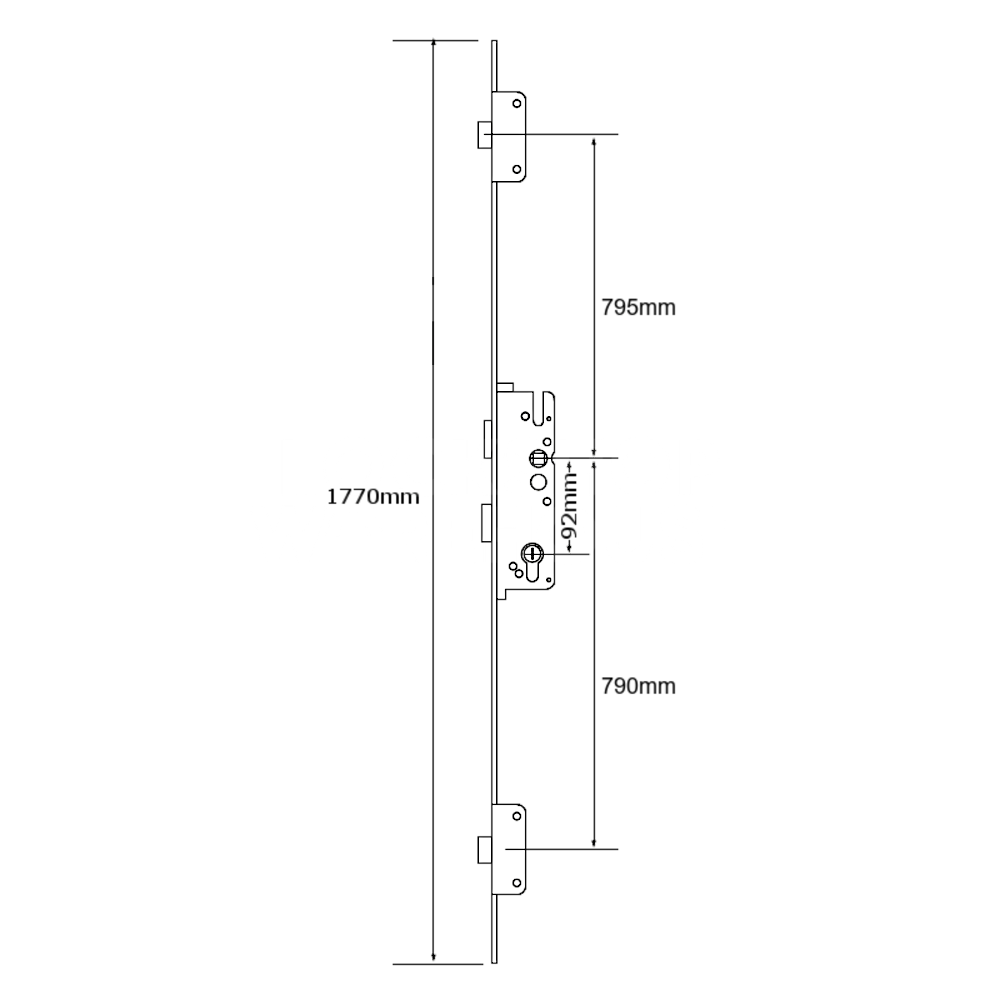

Dimensions Image: GU Secury LogIQ A2 Automatic Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Case Width 60
Case Height 195
Locking Point Dead Bolt 2
Faceplate Width 20

Brand

SKU

L-10012-01-0-1A

Certifications

tick BS EN 6375
