skip to Hooply 60/68 Key Operated Latch & 4 Deadbolt Multi-Lock Gearbox

Hooply 60/68 Key Operated Latch & 4 Deadbolt Multi-Lock Gearbox

£73.72

(£61.43 ex VAT)

sku: L23464
  • High-security design with 4 rounded deadbolts for maximum protection
  • Optimised for shipping containers, site storage units, and security steel doors
  • Standard 60mm backset and 68mm centres for compatible fitment
  • Fully reversible latch to suit both left and right-handed door configurations
  • Designed for use with standard Euro cylinders (sold separately)
  • Durable 90mm case depth for long-lasting performance in industrial environments
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The HOOPLY Key Operated Latch & 4 Deadbolt Gearbox is an essential security component engineered specifically for container door multi-lock systems. Widely used on site containers and security steel doors, this gearbox provides a robust replacement for worn or damaged Hooply centre cases, ensuring your storage units remain secure.

This unit features a 60mm backset and 68mm centres, housed within a 90mm deep case. The standout feature is the four rounded deadbolts, which provide multiple points of locking for enhanced resistance against tampering. The mechanism is designed to be operated by a standard Euro cylinder, providing a familiar and reliable interface for users.

Key features and benefits:

  • Reversible Handing: The latch can be easily reversed by removing the top screw and toggling the internal slide switch, making it compatible with various door orientations.
  • Secure Locking Method: Operates using 'Locking Method – C', requiring two full turns of the key to lock or unlock, with a further turn to retract the latch.
  • High-Strength Construction: Built to withstand the rigours of site use, the steel construction offers durability in harsh environments.
  • Single Spindle Operation: Simple and effective spindle design for standard handle operation.

Please note: Euro cylinders are sold separately. Ensure measurements are verified against your existing hardware before installation.

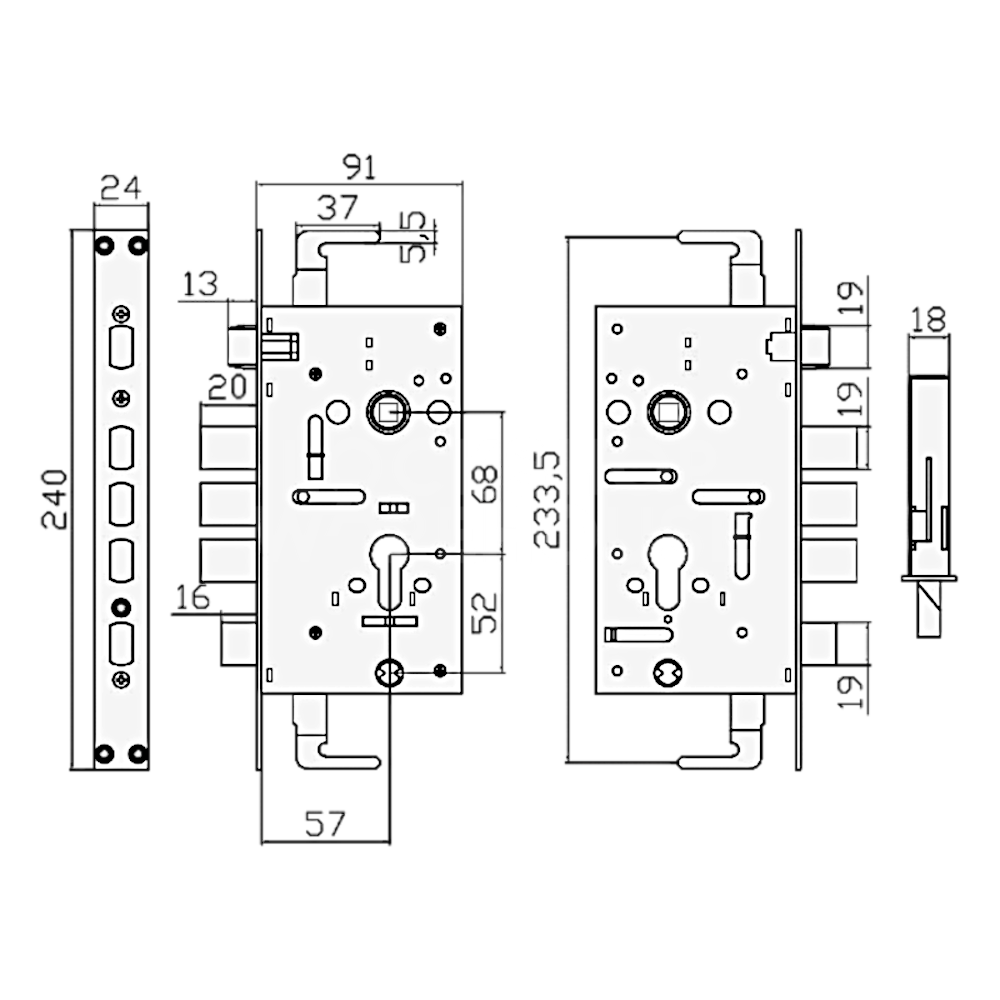

Dimensions Image: Hooply 60/68 Key Operated Latch & 4 Deadbolt Multi-Lock Gearbox
Part Size (mm)
centres 68
Backset 60
Case Depth 90
Locking Point Dead Bolt 4
Faceplate Height 240
Faceplate Width 24

FAQs

The Hooply 60/68 gearbox is specifically engineered for security steel doors and site storage containers. To ensure a correct fit, verify that your existing hardware matches the 60mm backset and 68mm centres measurement before purchasing.

Yes, the latch is fully reversible. You can easily adapt it to suit either left or right-handed door configurations by removing the top screw and toggling the internal slide switch during installation.

This gearbox utilizes a 'Locking Method C' operation. To secure the door, perform two full turns of the key to fully engage the four rounded deadbolts. An additional turn of the key will then retract the latch for entry.

No, the Euro cylinder is sold separately. This gearbox is designed to work with standard Euro cylinders, allowing you to choose the specific security level or keying configuration required for your application.
