Hooply Single Shoot Steel Side Lock

£9.72

(£8.10 ex VAT)

sku: GATHER-SIDE
  • GATHER-SIDE side-lock component
  • Listed for personnel doors requiring a single locking point
  • Solid round metal bolt with listed 18mm throw
  • Countersunk fixing holes
  • Listed 70mm screw centres
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The GATHER-SIDE is a side-lock component, not a complete cylinder-operated lockset. The supplier lists an 18mm bolt throw and 70mm fixing centres.

Compare the existing mechanism, mounting positions, bolt alignment and keep before replacing the component. Countersunk holes require matching screw heads and lengths; they do not by themselves establish flush mounting or door security performance.

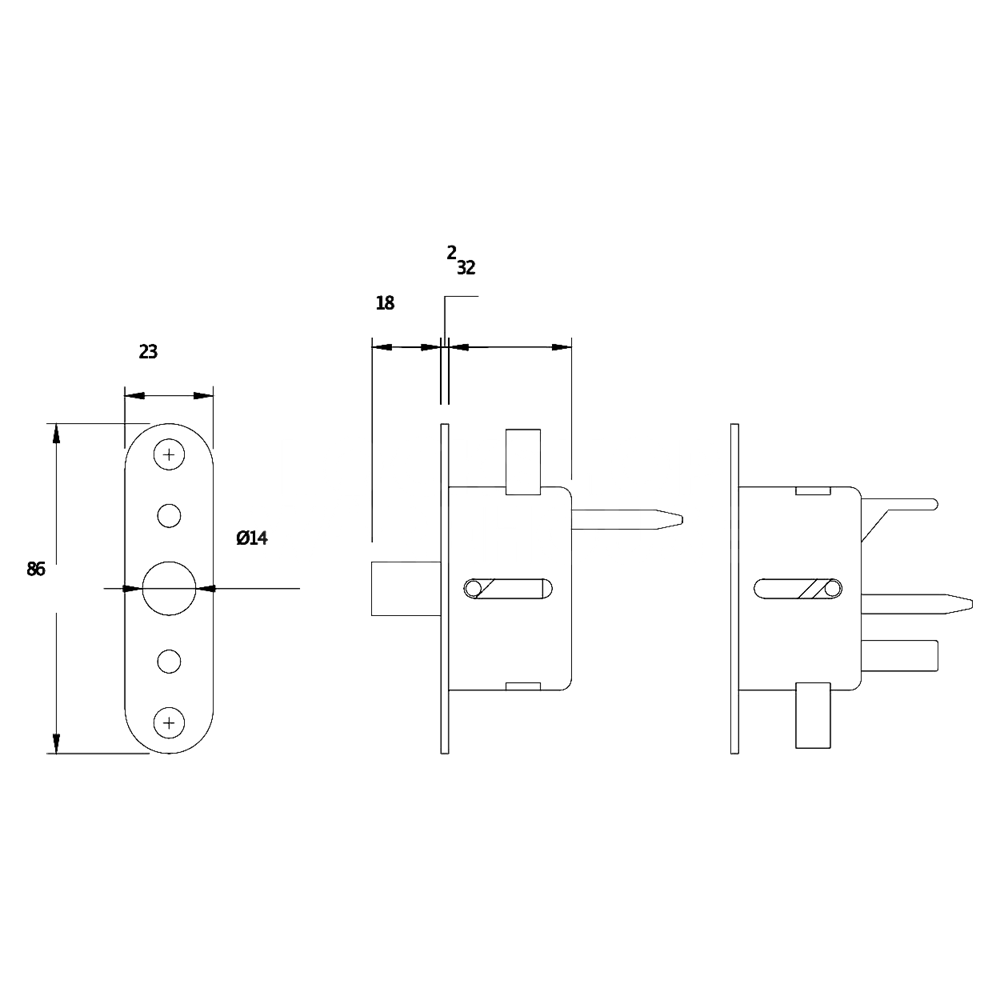

Dimensions Image: Hooply Single Shoot Steel Side Lock
Part Size (mm)
Bolt Length 18
Case Depth 32
Faceplate Height 86
Faceplate Width 23

FAQs

The supplier lists GATHER-SIDE for personnel doors requiring a single locking point. Confirm the exact door mechanism and mounting arrangement; the application description does not establish universal fit or a tested security rating.

The supplier lists an 18mm throw for the solid round metal bolt. Bolt diameter is not established by the captured source, so check it against the original and matching keep before ordering.

The supplier lists 70mm screw centres. Also match the plate outline, fixing-hole positions, bolt alignment and connecting mechanism; the centre distance alone does not prove fit.

The fixing holes are listed as countersunk. Flush seating depends on using compatible screw heads and lengths and the correct door preparation.
