Hoppe Atlanta Lever/Lever Narrow Backplate Door Handle

£52.76

(£43.97 ex VAT)

sku: 11690720
  • Narrow 30mm backplate designed for slim door profile systems
  • Integrated spring cassette ensures the lever returns to a horizontal position
  • Universal handing allows for installation on both left and right-handed doors
  • Standard 92mm PZ centres for compatibility with most multipoint locks
  • Maintenance-free slide bearing for smooth and reliable lever operation
  • Secure bolt-through M5 fixings for a stable and durable mount
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The HOPPE Atlanta M1530M/3829N is a high-performance lever/lever door handle set engineered for doors equipped with multipoint locking systems. Featuring a narrow 30mm backplate, it is specifically designed for use on door profiles where space for hardware is limited, such as certain UPVC, aluminium, or composite doors.

Constructed with durability in mind, this handle set incorporates an internal spring mechanism. This sprung design supports the weight of the lever, ensuring it consistently returns to the horizontal position and reducing wear on the internal lock gearbox. The lever is mounted in a maintenance-free slide bearing, providing a smooth tactile feel throughout its service life.

Typically used as a high-quality replacement for worn or damaged hardware, the Atlanta is also suitable for new-build projects. It features standard 92mm centres and 122mm screw fixing centres, making it a versatile choice for a wide range of locking systems. The set is supplied with an 8mm spindle and M5 bolt-through fixings, designed to accommodate door thicknesses between 65mm and 70mm.

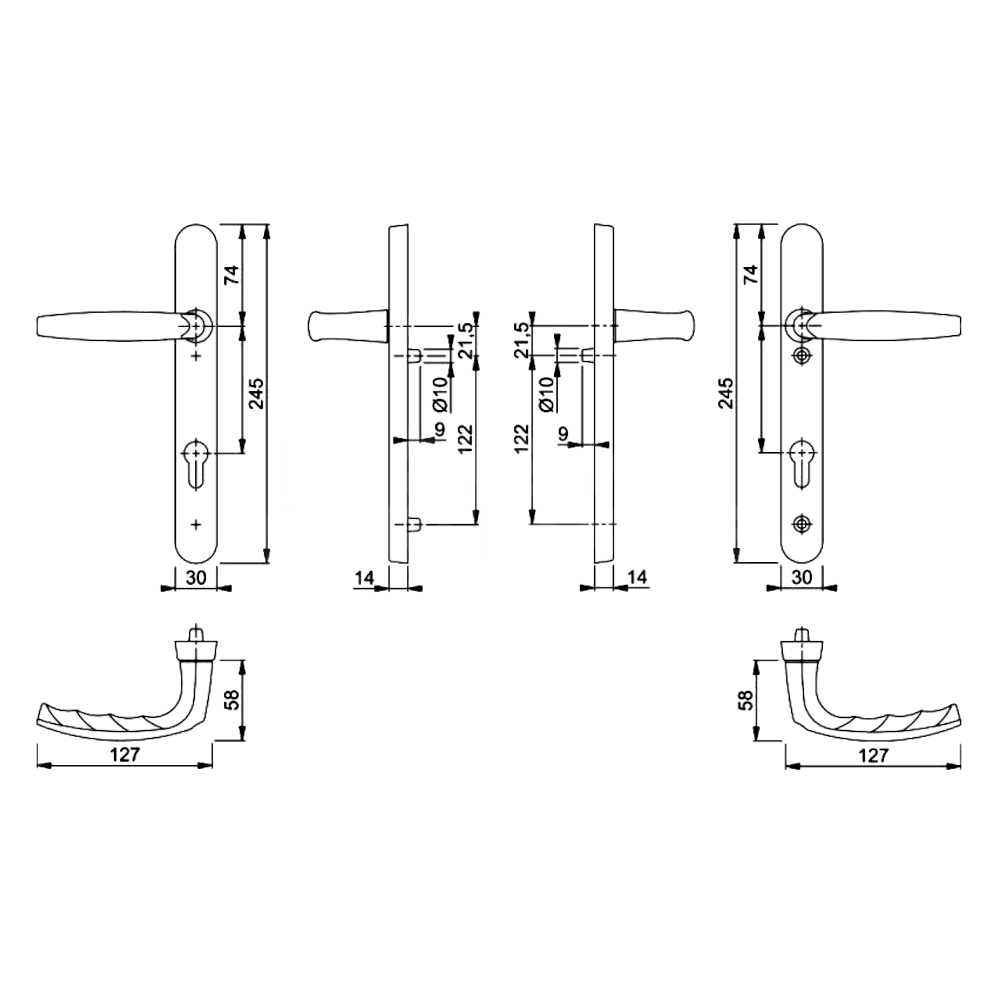

Dimensions Image: Hoppe Atlanta Lever/Lever Narrow Backplate Door Handle
Part Size (mm)
centres 92
