skip to ILS FDM004 Round Cylinder Bullet Lock Keyed Alike

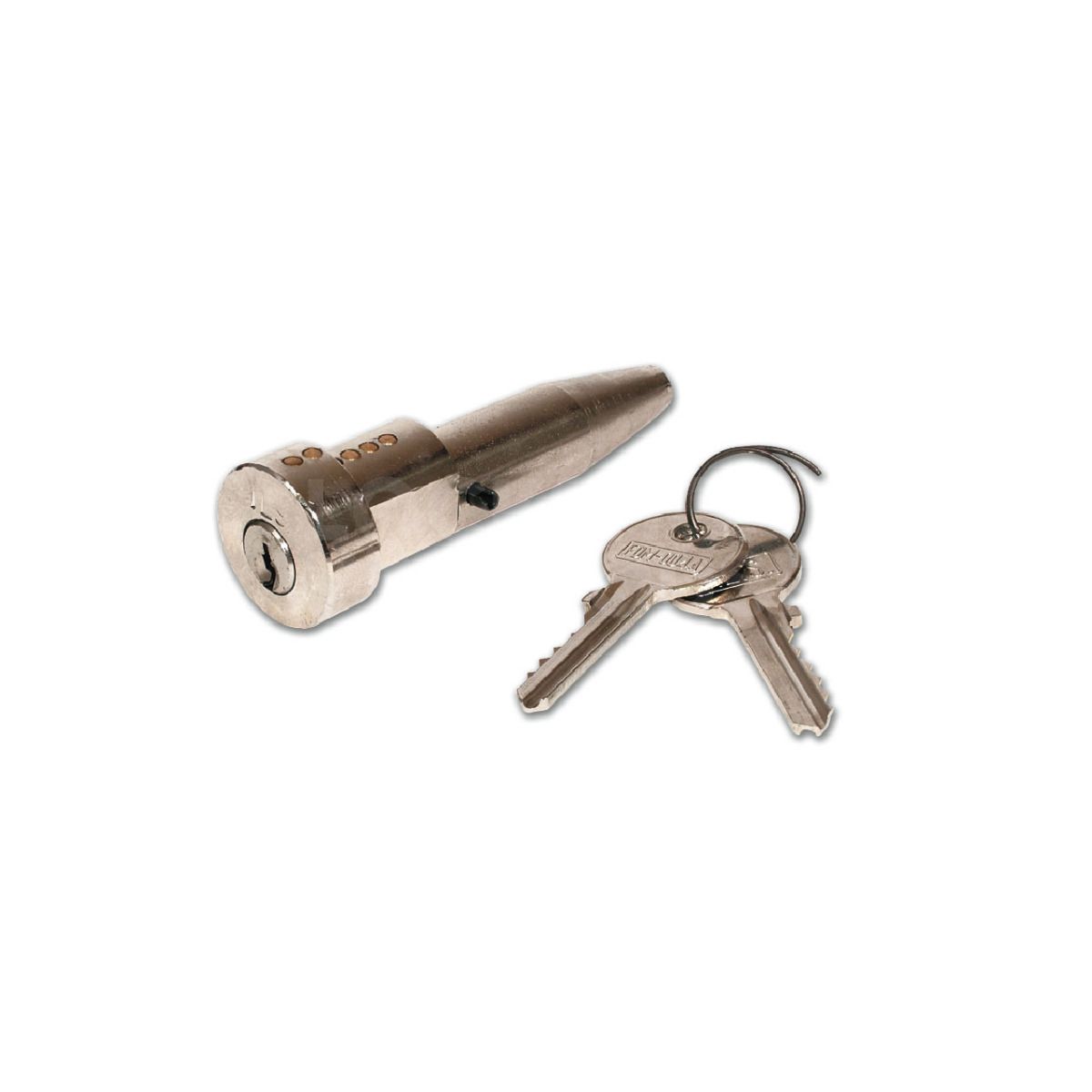

ILS FDM004 Round Cylinder Bullet Lock Keyed Alike

£17.99

(£14.99 ex VAT)

sku: L9668
  • Designed for securing roller shutters and commercial industrial doors
  • Integrated split pin mechanism for secure insertion and withdrawal from the housing
  • Keyed alike configuration enables multiple locks to be operated with a single key
  • Key captive feature ensures the lock is engaged before the key can be removed
  • Provides a robust physical barrier against unauthorised shutter operation
  • Supplied with two keys as standard for immediate deployment
  • Engineered for use with standard bullet lock housings and pin receptacles
Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The ILS FDM004 is a round-headed bullet lock engineered for the security of roller shutters and industrial door systems. It operates via a split pin mechanism located behind the cylinder barrel; when the key is rotated, the pin moves to allow the bullet to be securely locked into or withdrawn from its dedicated housing.

This locking solution is particularly suited for commercial premises where multiple entry points require securing. Being keyed alike, this model allows site managers to operate several shutters using one key, significantly improving operational efficiency and reducing the need for large key sets. For enhanced security protocols, the key is only removable when the cylinder is in the locked position, ensuring the shutter cannot be left inadvertently unsecured.

Typical applications include retail shop fronts, warehouse loading bays, and security grilles. These locks are commonly used as direct replacements for existing hardware or as part of a new security installation. They are designed to fit standard industry housings, providing a reliable and proven method of locking rolling doors from the side tracks.

Brand

SKU

L9668

Box Contents

2 keys

Lock

FAQs

This product is stocked "Keyed Alike," which is ideal if you are purchasing multiple units. It allows you to use the same key to operate every lock in the set, simplifying access and reducing the number of keys you need to carry.

The lock has a total length of 83mm and a pin length of 53mm. The round cylinder head has a diameter of 25mm, providing a standard fit for compatible bullet lock housings.

No, the design of this bullet lock ensures that the key can only be removed when it is in the locked position. This safety feature helps prevent the key from being lost or left in the lock while the unit is unsecured.

The lock uses a split pin mechanism located behind the cylinder barrel. When the key is turned, it rotates this pin, which allows the bullet to be securely inserted into or withdrawn from its housing.
