Imperial 5 lever Horizontal Sashlock

£42.00

(£35.00 ex VAT)

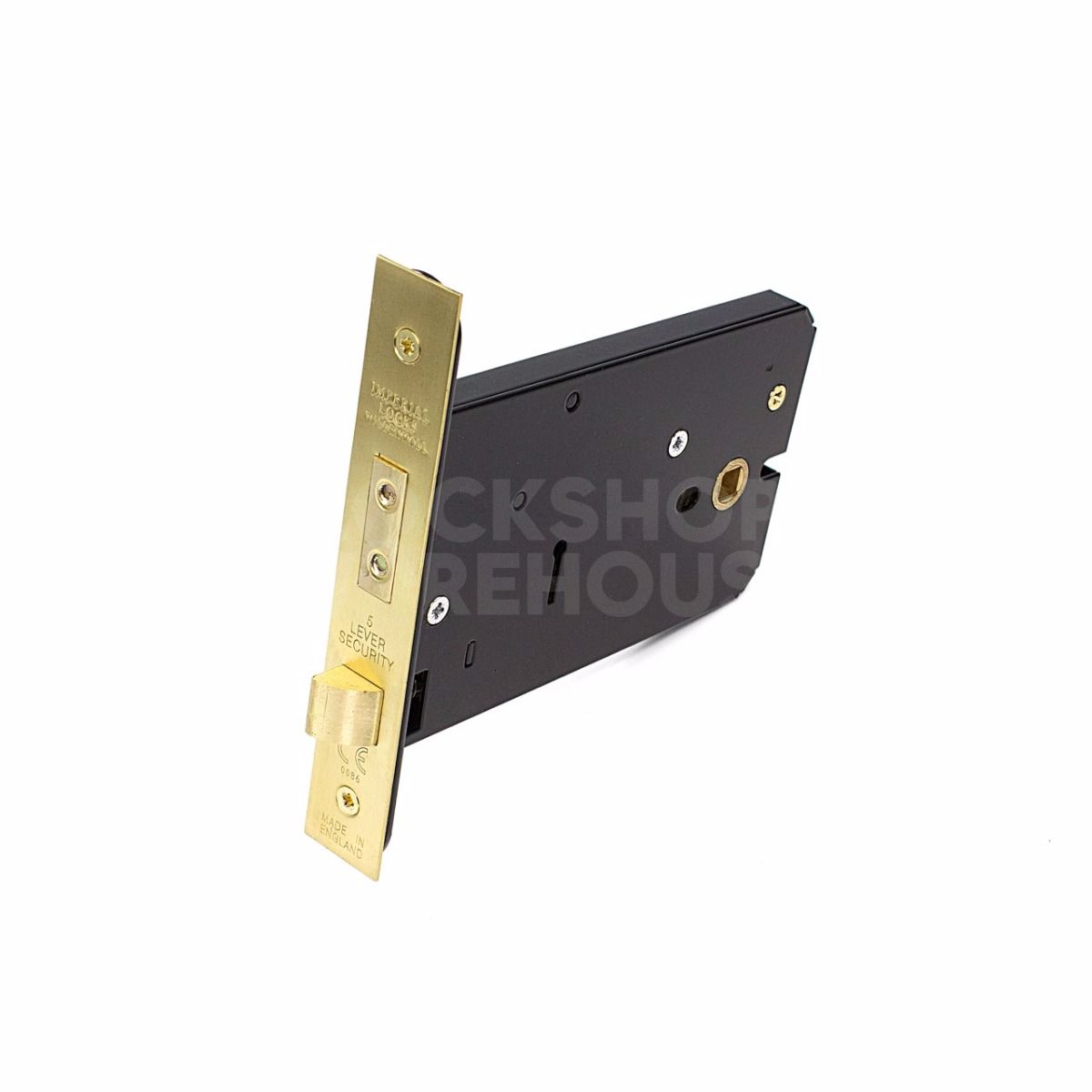

Imperial 5 lever horizontal mortice sashlock

Not Insurance approved so not to be used as the only lock on external doors.

Great as a replacement for old Victorian locks.

This lock comes with 2 keys

Handles retract the latch from both sides,

Deadbolt is locked and unlocked by use of key from both sides


NB - Keyed alike locks only come with 2 keys in total.

Imperial 5 Lever Range of mortice locks which can be keyed alike together

Size

Finish

Key Configuration

Qty:

Shipping From:

Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
6/10 Security Rating
key-pinned Key Profile: Standard

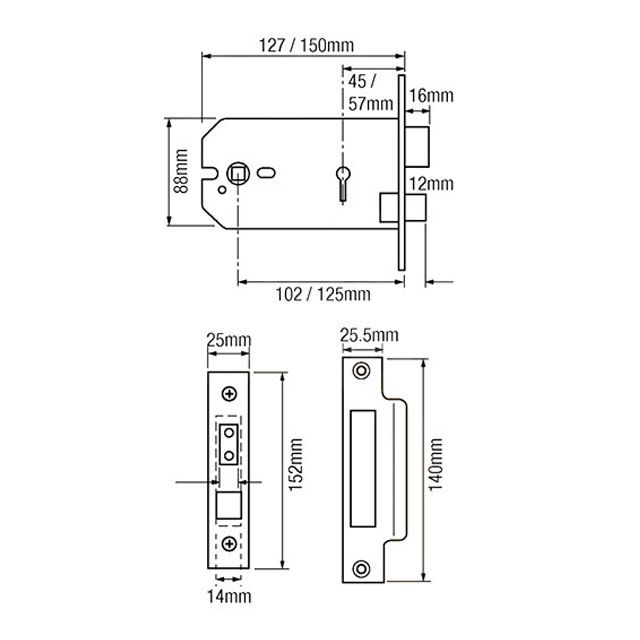

Dimensions Image: Imperial 5 lever Horizontal Sashlock
Part Min (mm) Max (mm)
centres 102 125
Backset 45 57
Bolt Length 16 -
Case Width 127 150
Case Height 88 -
Forend Width 25 -
Forend Length 152 -
Strike Plate Width 25 -
Strike Plate Length 140 -

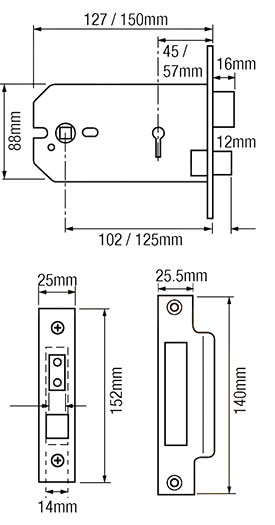

Dimensions Image: Imperial 5 lever Horizontal Sashlock

Brand

SKU

G5011-12

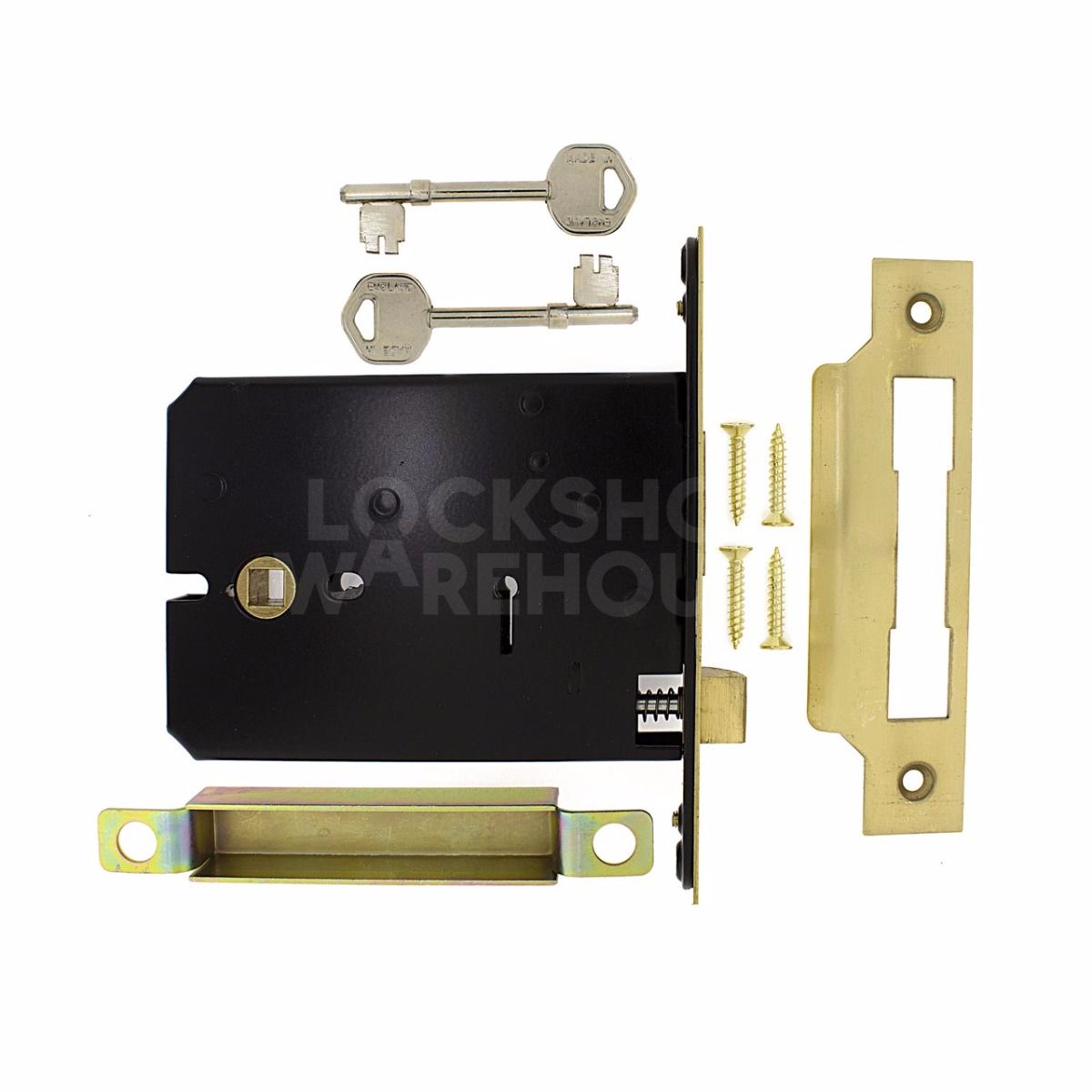

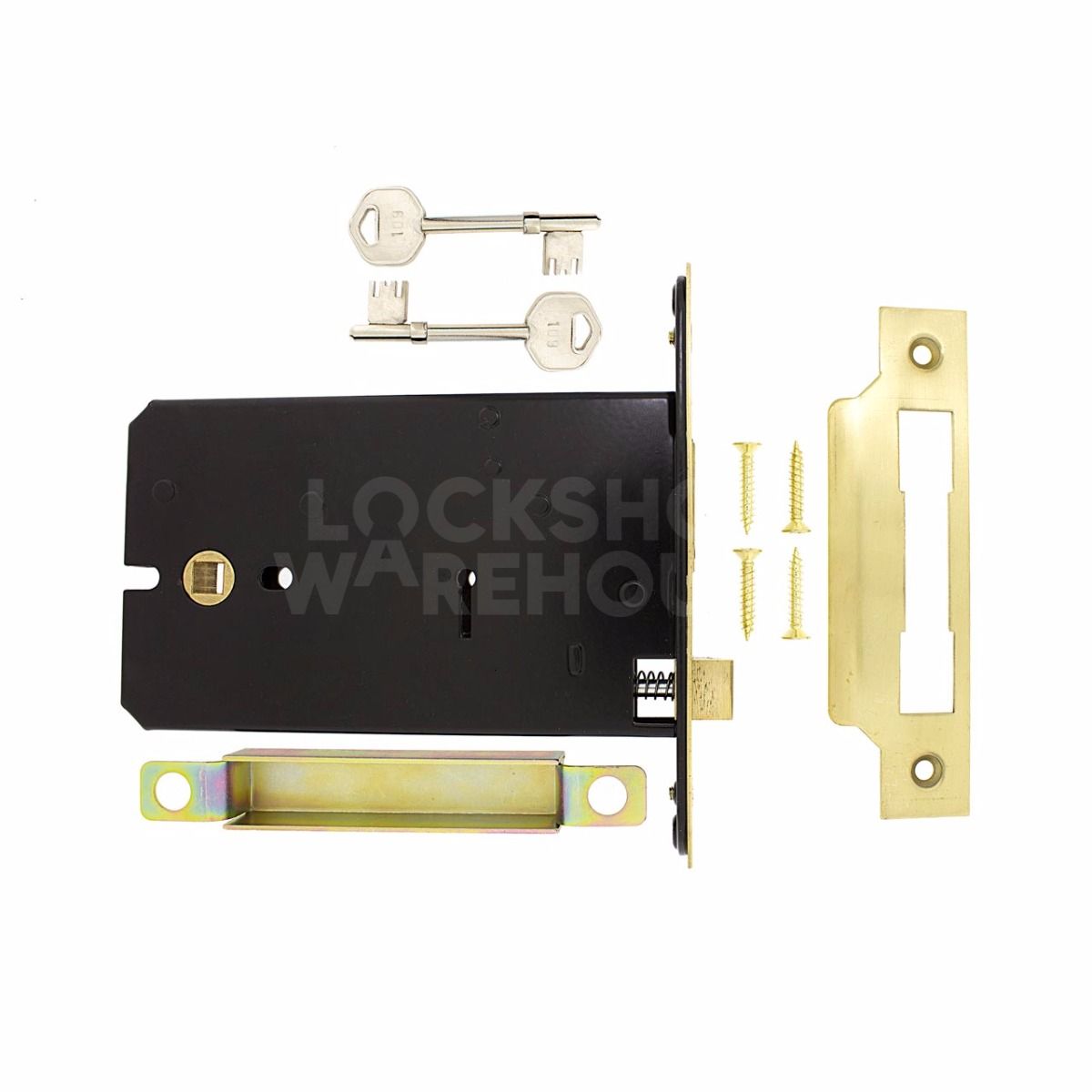

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

There are 2 different sizes of lock cases as each lock will give you a different backset. This is the distance from the edge of the lock to the keyhole / spindle for handles. The bigger locks are better for solid wooden doors as they move the keyhole away from the door stop further. If you have a large door stop and fit a 64mm lock case you can find that you hit your knuckles on the door stop when you turn the key. Alternatively the 64mm lock case is better when you have a glass panelled door as you may not have enough wood on the stile to fit the 76mm lock into before you hit and therefore smash the glass. This is very important to check when installing locks to doors with glass in.

No, if the door is a communal entrance/ exit you MUST have a turn on the inside, so a 5 lever key on the inside is not suitable.

There are specific locks we sell called Egress locks that meet both the Insurance and Fire regulations so these are suitable for communal entrance doors.

To meet the fire regulations you need to be able to exit a communal door without the use of a key. If you are using the lock on your personal front door then they are fine but if others use the door you need to look into getting a turn knob internally so you can exit without the use of a key.

With outward opening doors you can not get a BS3621 outward opening nightlatch (see our section for all the options we have available) but if you install a standard security nightlatch you can also fit a BS3621 deadlock to the door which will give you the insurance rated lock required. As the deadlocks are not handed you can use them on any type of wooden door.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes you can, we would need a key back as we dont hold any records of your keys but this is possible. Please get in touch first so we can confirm everything is ok to do and then you can post your key back to us (taped to a piece of card...essential!!)

Yes, this is possible but it is important to make sure you select the same brand and model. The internals and the keys need to match so we can key the locks alike.

We do try to list the products together in our series tab on the product page which should show the suitable products that can be keyed alike together.

If in doubt please ask us and we will let you know.

A rebate set is only required on double rebated doors. If you only have a single door then you will receive all the parts you require with the lock. If you need a rebate set you will need to check the size of your rebate. The most common is 13mm but on older doors they can be 19mm or 25mm.

With the 5 lever locks they are designed to be high security so there are thousands of different keys so the keys do not come with numbers on. Therefore we can not cut additional keys for these locks without a key to copy from. If you post it back to us we can do it for you (please contact us first before you send it) or alternatively nearly all the keys we sell are available from local locksmiths in your area. They maybe more expensive so we would recommend buying the extra keys at the time of purchase so we can cut and try them before we ship the order.

Sashlocks are typically suitable for both left- and right-handed doors, as well as inward- and outward-opening applications. They are designed to be reversible on site, making installation flexible and straightforward.

Depending on the brand and model, latch reversal can be done in one of two ways:

  • Pull and twist the latch bolt to the desired position

  • Remove a retaining screw on the back of the lock case, rotate the latch, then refit the screw

This allows for easy adjustment during installation without the need for specialized tools.
