skip to Kaba L1031 (L1000-3) Mechanical Digital Combination Lock Unit with Passage Set Mode

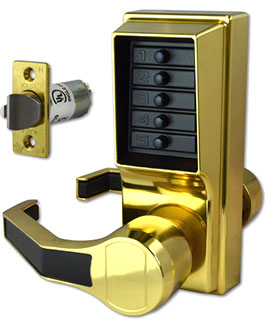

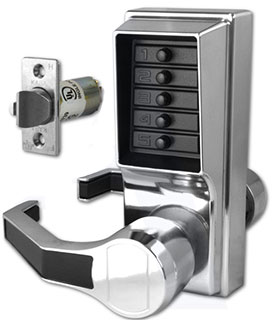

Kaba L1031 (L1000-3) Mechanical Digital Combination Lock Unit with Passage Set Mode

£598.80

(£499.00 ex VAT)

sku: L1031
  • Heavy-duty mechanical pushbutton lock for high-traffic commercial environments
  • Integrated passage set mode allows for unrestricted access when required
  • Fully mechanical operation eliminates the need for batteries or electrical wiring
  • Single-code entry system with easily programmable combinations
  • Vandal-resistant construction with durable metal pushbuttons
  • Factory-handed lever assembly: match the ordered hand to the door
  • Suitable for primary access control on timber or metal doors

Finish

Handing

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Weather Resistant
3 Year Guarantee

Lever operation with passage mode

L1031 is the passage-function L1000 format: useful when a room alternates between controlled entry and free access. It is not the same function as key bypass. Compare L1041 if both are required, and match the lever handing to the door.

Fitting and setup

  • Measure the door thickness, backset and existing fixing positions against the exact model drawing.
  • Set the new code and test the outside control, inside operation and latch engagement with the door open before closing it.

Compare the access options

Product support

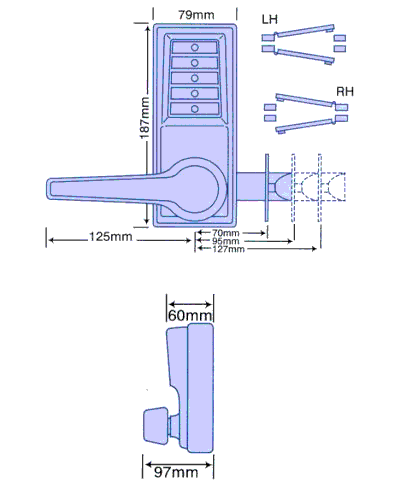

Part Size (mm)
width 79
Backset 70

FAQs

The passage set mode allows you to temporarily disengage the locking mechanism so the door can be opened without entering a code. This is particularly useful for commercial environments or offices that need to stay unlocked during specific business hours.

No, this is a fully mechanical digital lock. It operates entirely without batteries, electronics, or external power, ensuring the lock remains functional during power outages and reducing long-term maintenance needs.

Yes, the combination can be changed as often as required. The lock supports one primary access code consisting of one to five digits, which can be updated to maintain security if staff members leave or the code is compromised.

The Kaba L1000 series is built for heavy-duty commercial use. Its rugged mechanical design is highly weather-resistant and engineered to withstand the wear and tear of high-traffic areas, making it suitable for both interior and exterior applications.
