skip to Kenrick Excalibur Lever Operated Twin Spindle Multipoint Lock

Kenrick Excalibur Lever Operated Twin Spindle Multipoint Lock

£51.82

(£43.18 ex VAT)

sku: EXDL33
  • Twin spindle mechanism with 92mm/62mm centres for flexible handle operation
  • Includes two secure hookbolts to provide enhanced resistance against forced entry
  • Three adjustable roller cams ensure effective weather sealing and compression
  • Lever-operated design allows for simple engagement of all locking points
  • 16mm faceplate compatible with standard euro-groove door preparations
  • Designed for use with Euro profile cylinders in UPVC or composite doors
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Hookbolt

The Kenrick Excalibur is a robust multipoint door lock designed to provide high levels of security and weather protection for residential doors. This lever-operated system features a combination of two hooks and three rollers, ensuring the door is securely anchored and tightly sealed against the frame. It is primarily used as a high-security replacement part or for new door installations in UPVC and composite systems.

A key feature of this model is the twin spindle configuration. With 92mm and 62mm centres, it allows for various handle operations, including offset or split spindle functions that prevent unauthorised external entry even when the door is closed but not locked. The 16mm faceplate is designed to fit seamlessly into standard euro-grooves, making it a versatile choice for many door profiles.

  • Hooks: Provide mechanical deadlocking and resistance to jemmying.
  • Rollers: Facilitate smooth operation and compress the door against weather seals.
  • Spindle: Dual centres support standard and offset handle sets.

This lock case is compatible with standard Euro profile cylinders, allowing for easy integration into existing keying systems. It is engineered for long-term durability and consistent performance in high-traffic domestic environments.

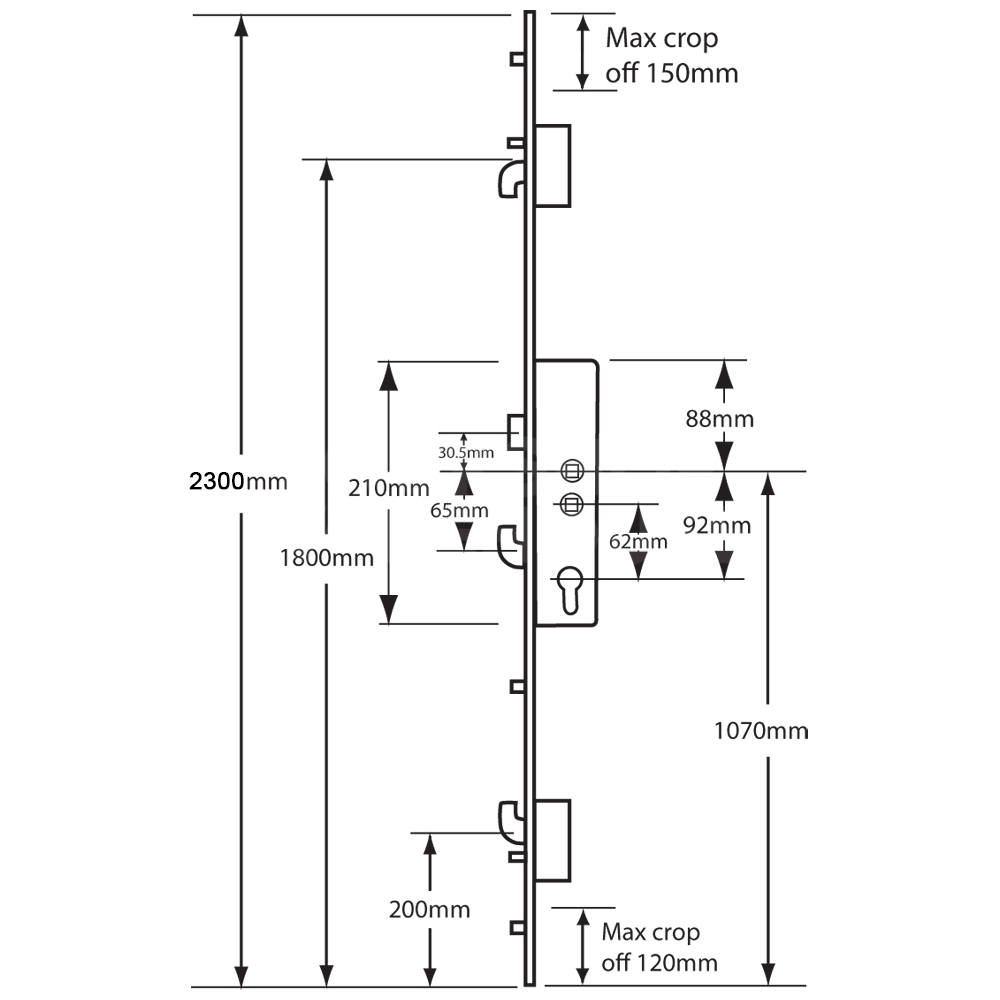

Dimensions Image: Kenrick Excalibur Lever Operated Twin Spindle Multipoint Lock
Part Size (mm)
Backset 35
Case Width 45
Case Height 225
Locking Point Anti Lift 2
Locking Point Hooks 2
Locking Point Roller 3
Faceplate Width 16

FAQs

The twin spindle configuration (92mm and 62mm centres) offers versatile handle functionality. It allows for standard operation or split-spindle/offset functions, which can prevent unauthorized entry from the outside even when the door is shut but not yet locked.

This multipoint lock is specifically designed for use with UPVC and composite doors. It features a standard 16mm faceplate that fits seamlessly into most euro-groove door preparations.

The lock provides five points of security and compression, including:

  • Two steel hookbolts for high-strength resistance against forced entry.
  • Three adjustable roller cams that ensure a tight weather seal and smooth door operation.

This lock features dual spindle centres at 92mm and 62mm. You should choose a handle set that matches these measurements, particularly if you wish to utilize the offset spindle function. It is also fully compatible with standard Euro profile cylinders.
