Kenrick Excalibur Multipoint Lock 3 Hook 3 Roller

£51.82

(£43.18 ex VAT)

sku: EXDL33SBP
  • Three hooks in total, three rollers and two anti-lift bolts
  • Match the complete lock and frame-keep layout
  • Check the follower, spindle and furniture arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Hookbolt

This Kenrick Excalibur EXDL33SBP single-spindle multipoint lock is supplied as a full lock unit. Match the short-backplate mechanism, follower function, furniture and keep layout. A later Excalibur split-spindle description does not establish the operating function of every version.

Before replacement, compare the complete strip, centre case, fixing positions, locking points and handing with the existing installation. Use the operating instructions for the exact supplied version and matched furniture. Matching the brand or nominal backset alone is not enough.

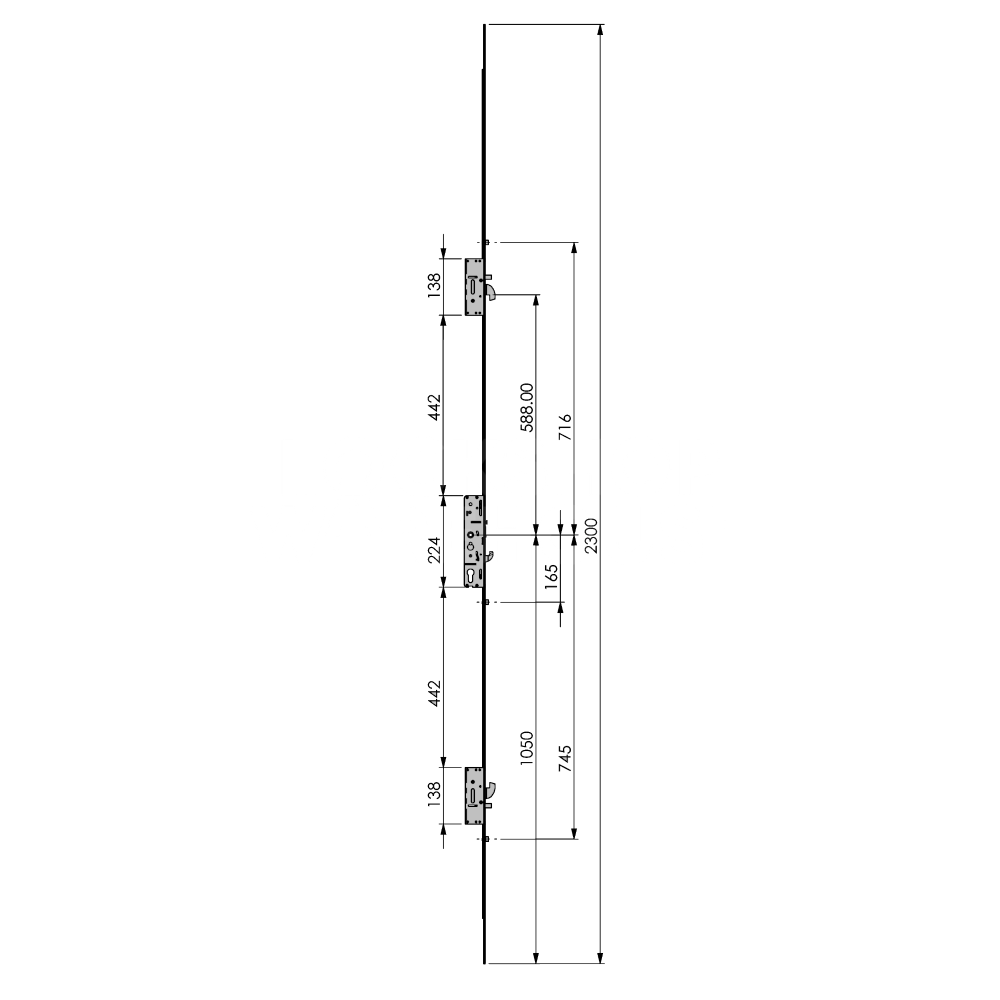

Dimensions Image: Kenrick Excalibur Multipoint Lock 3 Hook 3 Roller
Part Size (mm)
centres 92
Backset 35
Case Width 45
Case Height 224
Locking Point Anti Lift 2
Locking Point Hooks 3
Locking Point Roller 3
Faceplate Width 16

FAQs

The supplier listing describes three hooks in total, three rollers and two anti-lift bolts; a centre hook must not be counted again as an additional auxiliary hook. This is a configuration description, not a verified total security-point rating or a forced-entry guarantee. Compare the complete mechanism and keep layout with the existing installation.

Replacement suitability depends on the complete strip and centre-case layout, fixing positions, locking-point positions, handing and matching keeps. Matching the brand, backset or faceplate width alone is not sufficient.

The supplier lists a single-spindle unit. Confirm whether the exact case uses a through or divided spindle, the handle fixing pattern and return springing before specifying furniture. The single-spindle label alone does not prove lever-pad function.

Kenrick describes corrosion testing for the Excalibur range, but no exact-code test document or coastal suitability guarantee has been established here. Confirm the required finish and exposure suitability for the installation.
