Kenrick Excalibur Single Spindle Slave Multipoint Door Lock

£38.35

(£31.96 ex VAT)

sku: EXDLSLSBP
  • Short-backplate lock for the passive leaf of a French or double-door set
  • Match the complete lock and frame-keep layout
  • Check the follower, spindle and furniture arrangement
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

This Kenrick Excalibur EXDLSLSBP single-spindle slave unit is supplied as a full lock unit. Match the active-leaf lock, slave mechanism, shootbolts and frame keeps as a complete arrangement. This slave unit is not an active-leaf replacement.

Before replacement, compare the complete strip, centre case, fixing positions, locking points and handing with the existing installation. Use the operating instructions for the exact supplied version and matched furniture. Matching the brand or nominal backset alone is not enough.

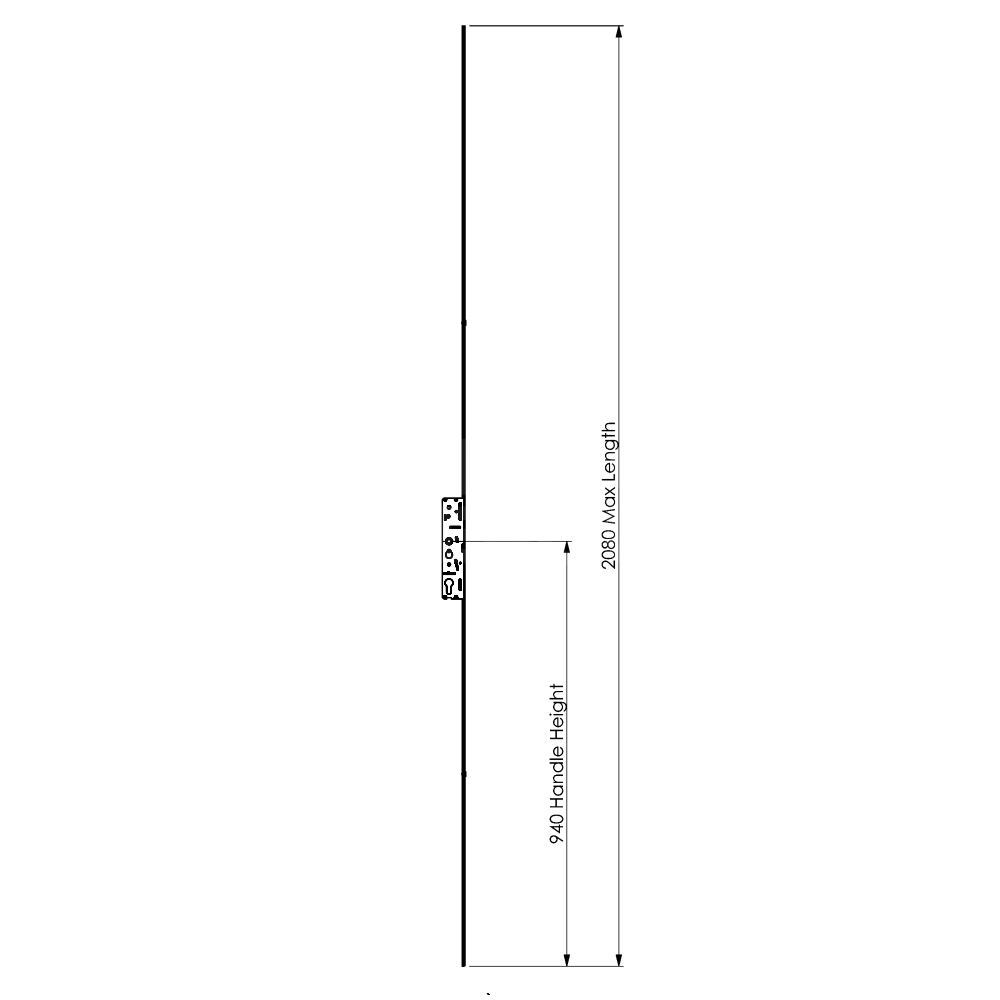

Dimensions Image: Kenrick Excalibur Single Spindle Slave Multipoint Door Lock
Part Size (mm)
centres 92
Backset 35
Body Length 2080
Faceplate Width 16

FAQs

The exact supplier listing identifies this as a passive-leaf slave unit for a French or double-door set. Confirm the active-leaf lock and the complete slave/keep arrangement before replacement.

The supplier lists reversible handing. Confirm the actual case and the manufacturer's reversal instructions before alteration; this is not confirmation that any keep, opening direction or latch-conversion method is interchangeable.

The supplier lists shootbolt provision, but exact extension part numbers, travel, connection and frame keeps must be confirmed for EXDLSLSBP. A general Excalibur range description does not establish the complete assembly.

The supplier lists a single-spindle, short-backplate slave unit. Verify the exact furniture, follower function, return springing and any cylinder provision rather than assuming the active-lock cylinder and handle specification.
