Kenrick Lever Operated Latch & Hookbolt Gearbox - Twin Spindle

£35.92

(£29.93 ex VAT)

sku: KENRI-0006
  • Latch-and-hookbolt centre case only
  • Listed 35mm EXDL33CG and 45mm EXDL3345KVCG versions
  • Supplier describes 92/62mm twin-spindle arrangements
  • Exact Excalibur donor revision and connections must be matched

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Hookbolt

The Kenrick Excalibur twin-spindle centre gearbox is a replacement centre component, not a complete multipoint locking strip.

The listed versions are EXDL33CG and EXDL3345KVCG. A shared Excalibur code stem does not prove that both cases fit the same full strip.

Kenrick describes single- and twin-spindle options and sprung gearboxes in the wider Excalibur door range. Those range statements are not a spare-code mounting drawing or clearance for every legacy donor, passive case or handle arrangement.

Match the exact original case and lock generation, backset, spindle arrangement, case outline, drive connections and retaining fixings. Matching the brand or a single measurement does not establish a direct replacement.

A centre-case repair can retain the locking strip only when the replacement is an exact match and the strip, remote locking points and frame keeps remain serviceable. Have the fault and the complete assembled lock checked before assuming that the gearbox alone is sufficient.

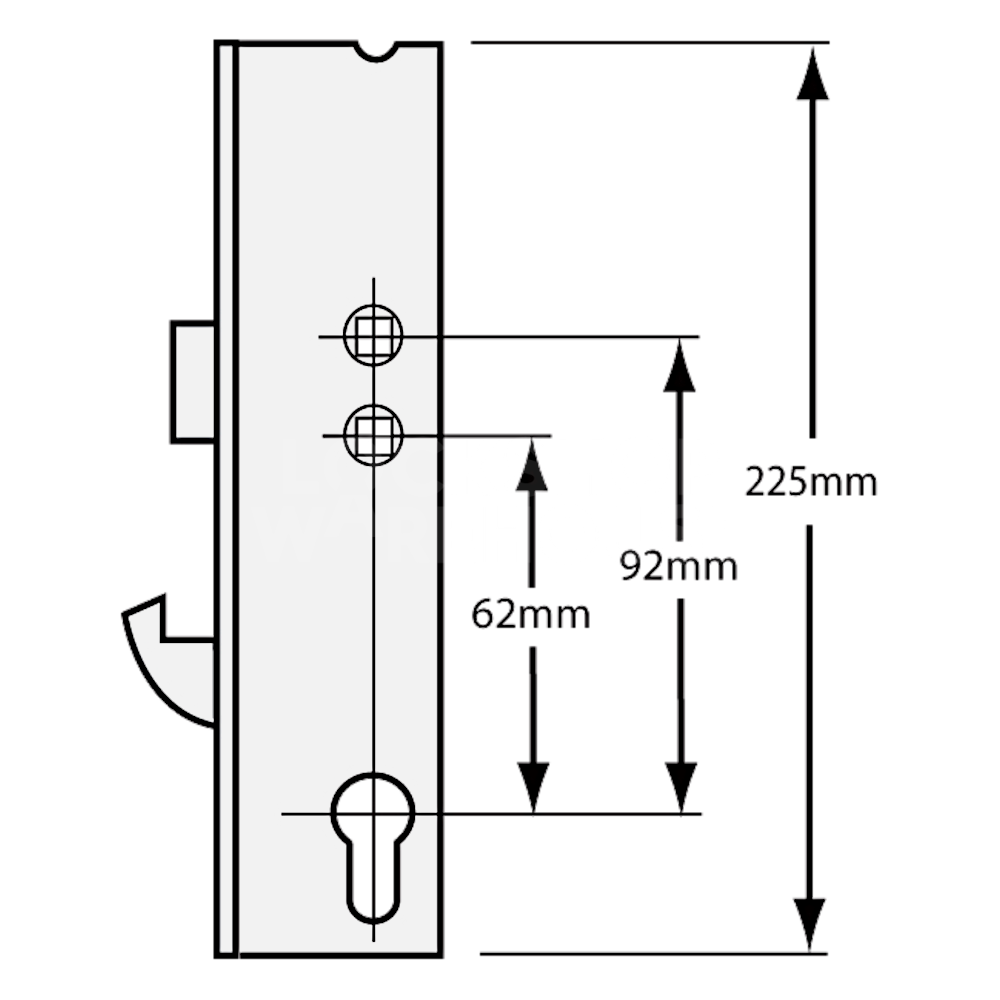

Dimensions Image: Kenrick Lever Operated Latch & Hookbolt Gearbox - Twin Spindle
Part Min (mm) Max (mm)
Backset 35 45
Case Width 47 57
Case Height 224 -

FAQs

No. It is listed for matched Excalibur door locks, not all multipoint locks. Match the exact original case and lock generation, backset, spindle arrangement, case outline, drive connections and retaining fixings. Matching the brand or a single measurement does not establish a direct replacement.

Check the handing and latch-reversal instructions for the actual supplied case. Do not use a generic screw-removal procedure or assume that every revision can be reversed in the same way.

The listed variants are 35mm EXDL33CG and 45mm EXDL3345KVCG, described by the supplier with 92/62mm twin-spindle arrangements. Match the full case and drive interface as well as these measurements.

Follow the operating instructions for the exact assembled lock, cylinder and handle arrangement. A gearbox description alone does not establish a universal key-turn count or the action of every remote locking point. A universal one-turn instruction is not established for these spare references.
