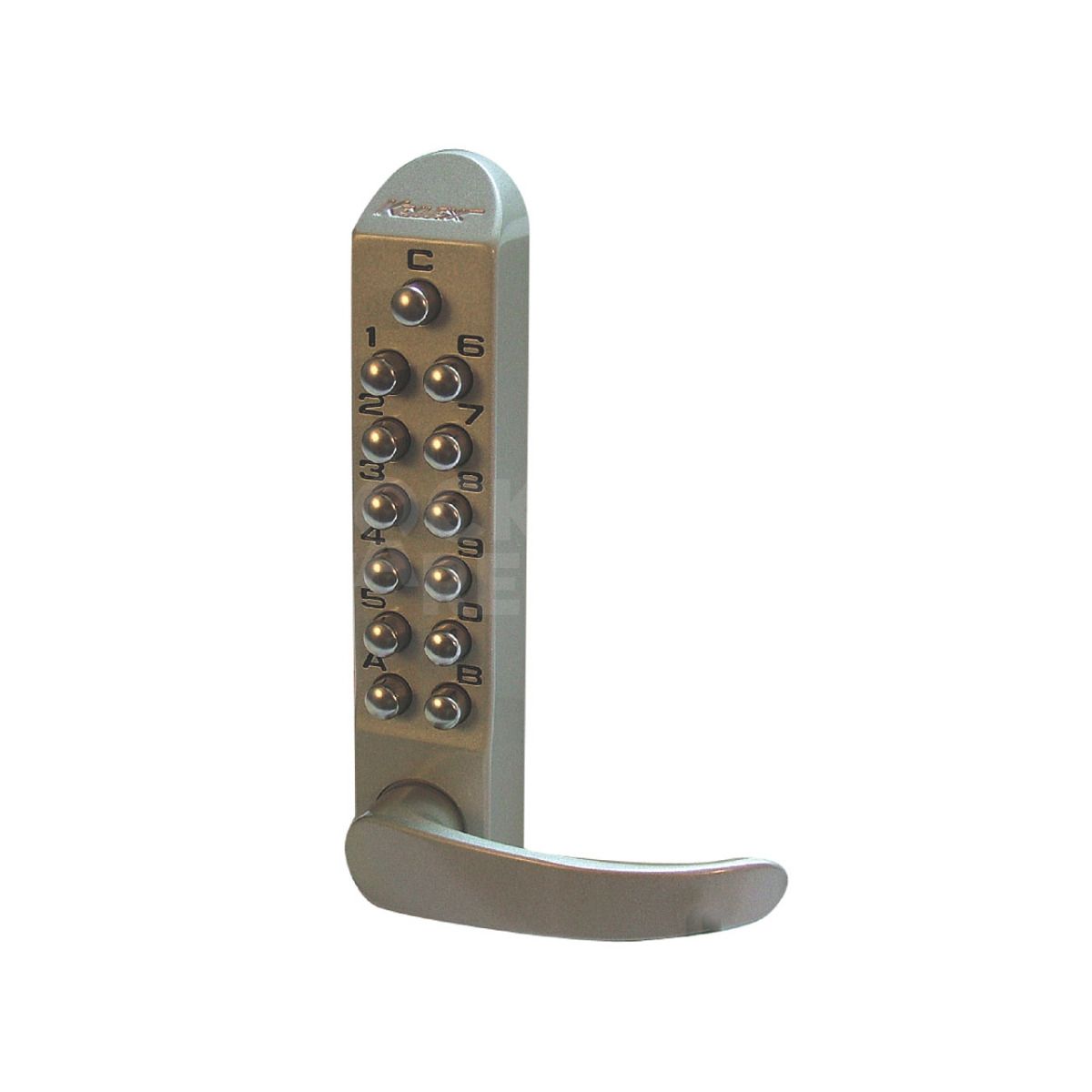

Gallery Image: Keylex 500 (MINI) Mechanical Digital Codelock

Keylex 500 (MINI) Mechanical Digital Codelock


(£269.99 ex VAT)

  • High quality mortice deadlocking latch - Solid bolt ensures secure re-locking every time.
  • Anti-thrust snib on double-throw latch.
  • Prevents latch from being prised back.
  • Standard duty mechanism.
  • Allows many hundreds of operations per day.
  • Entirely mechanical operation.
  • No electronics or electrical wiring involved.
  • Allows code combinations of up to 12 buttons.
  • Over 4,000 selectable code permutations (recommended 3 to 6 digit codes).
  • Code scramble. Allows all codes to be entered in any order.
  • Passage function.
  • Allows free passage from both sides at code users' discretion.
  • Brushed stainless steel buttons.
  • Will not indicate usage.
  • Free exit.
  • Provides escape from the inside, without code entry, regardless of the lock status.

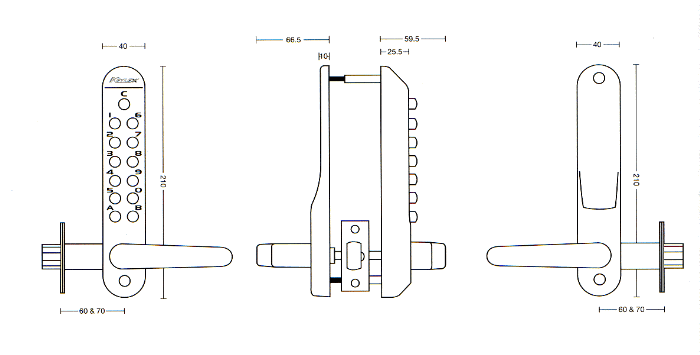

  • Backset 60 - 70mm.
  • Door thickness 30 - 45mm standard. Up to 75mm optional.
  • Supplied in Satin Chrome.
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
7/10 Security Rating
2 Year Guarantee

Technical Specifications

Toggle Icon





Box Contents



strike plate

Fixing Kit


Back Plate
