KFV 7370 Lever Operated Multipoint Lock Short Version

£201.12

(£167.60 ex VAT)

sku: AS7370
  • Short-length mechanism for doors with restricted height
  • Single spindle operation compatible with standard lever handles
  • Central latch and deadbolt for primary security
  • Two additional round bolts for enhanced locking points
  • Compatible with standard Euro profile cylinders
  • Designed for use with 16mm faceplate systems
  • Features 92mm PZ centres for standard door furniture
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The KFV 7370 is a high-performance short-version multipoint lock, engineered for doors where a full-length mechanism is not required or feasible. It operates via a single spindle, meaning the latch and bolts are engaged and retracted using a standard lever handle set. This makes it an ideal choice for both residential and commercial applications where reliable security is paramount.

Equipped with a central latch and deadbolt, the system is further reinforced by two round bolts that extend into the door frame when the handle is lifted. This configuration provides multiple points of engagement, significantly improving the door's resistance to forced entry. It is designed to house a standard Euro profile cylinder, allowing for easy integration into existing security systems or standard domestic setups.

Typically used as a direct replacement for failed units or in new door builds, the KFV 7370 is compatible with 16mm Euro-groove faceplates. Its robust construction ensures long-term operational reliability and consistent performance in various use cases.

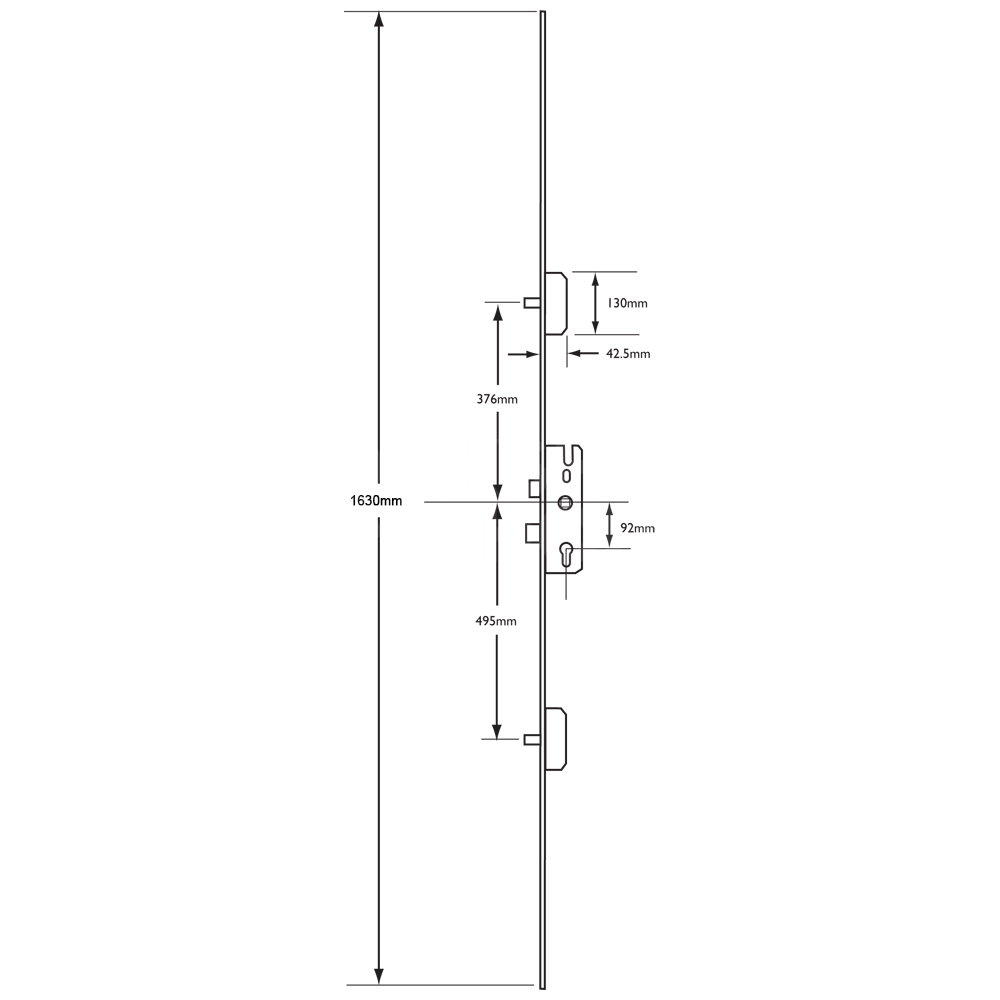

Dimensions Image: KFV 7370 Lever Operated Multipoint Lock Short Version
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 210
Locking Point Pin 2
Faceplate Width 16

FAQs

The short-version KFV 7370 is specifically designed for doors with restricted height where a standard, full-length multipoint mechanism is either too long or cannot be fitted. It provides a compact solution without compromising on the security of multiple locking points.

This lock provides a total of four security points when fully engaged:

  • One central latch
  • One central deadbolt
  • Two additional round bolts for enhanced frame engagement

To ensure this lock fits your existing door setup, check the following specifications:

  • PZ Centres: 92mm (the distance from the centre of the handle spindle to the centre of the cylinder hole)
  • Faceplate: Designed for standard 16mm Euro-groove systems
  • Cylinder Type: Compatible with all standard Euro profile cylinders

This is a lever-operated system using a single spindle. To lock the door, you lift the handle upwards to engage the top and bottom round bolts along with the central deadbolt. Once the handle is lifted, turn the key in the cylinder to deadlock the mechanism. To unlock, simply turn the key and push the handle down.
